ASSEMBLY INSTRUCTIONS

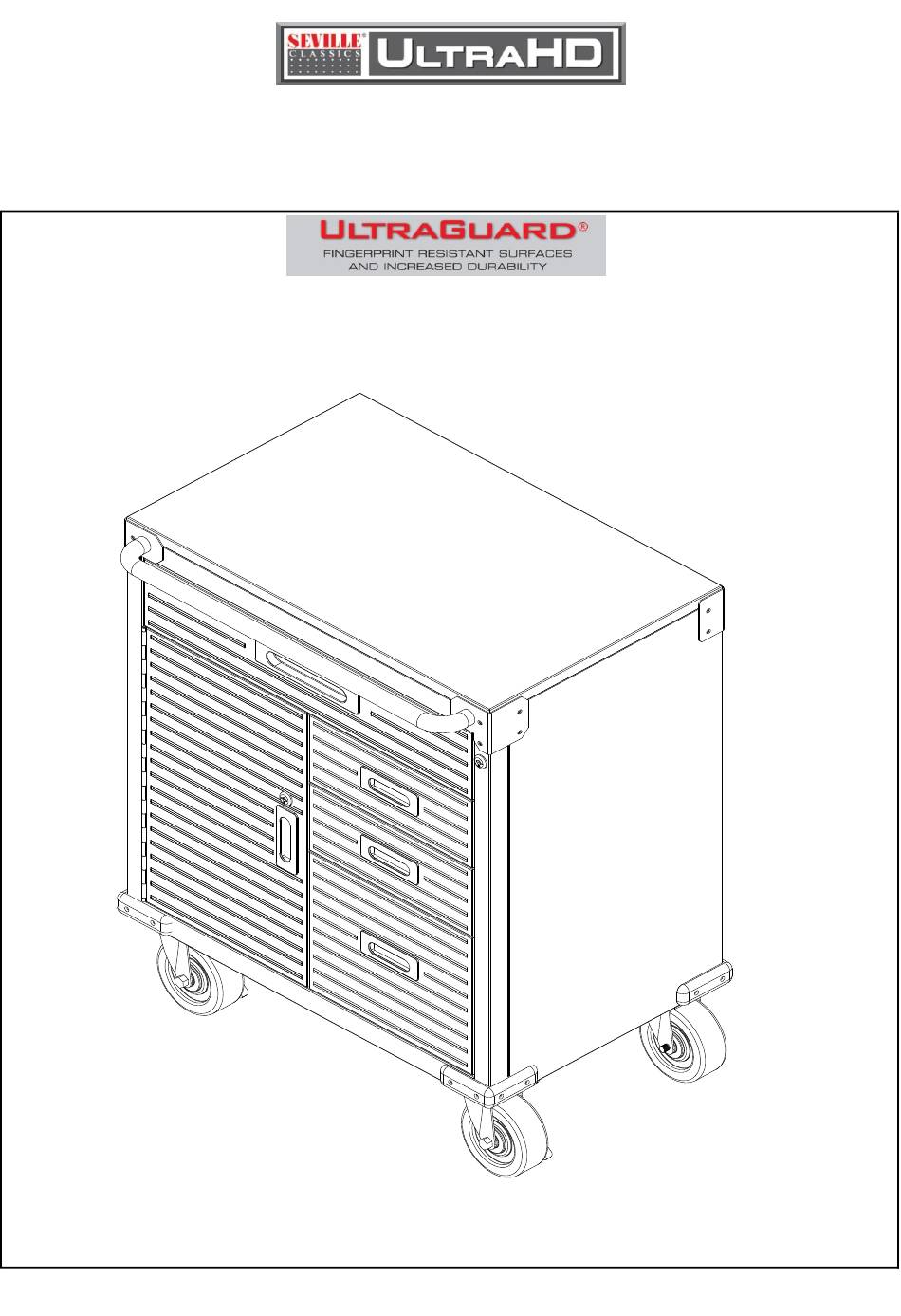

UltraHD Rolling Cabinet (Model No. 20185)
28in. W x 25in. D x 34.5in. H
(71.1cm x 63.5cm x 87.6cm )
Reference page 15 for special care and
maintenance of stainless steel
TR180321

Advertisement

loading
Need help?

Need help?

Do you have a question about the 20185 and is the answer not in the manual?

Questions and answers

Related Manuals for Seville Classics 20185

Summary of Contents for Seville Classics 20185

  • Page 1 ASSEMBLY INSTRUCTIONS UltraHD Rolling Cabinet (Model No. 20185) 28in. W x 25in. D x 34.5in. H (71.1cm x 63.5cm x 87.6cm ) Reference page 15 for special care and maintenance of stainless steel TR180321...
  • Page 2 (pg 1 of 16)
  • Page 3 (pg 2 of 16) Small Drawer Medium Drawer Large Drawer #12-3 #12-2...

  • Page 4: Parts List

    PARTS LIST (pg 3 of 16) Please check the parts carefully according to the parts list. If you are missing any parts, please contact our customer service department (please refer to page 16 of 16). (#1) BOTTOM PANEL x 1 PC (#2) FRONT FRAME x 1 PC (#3) RIGHT PANEL x 1 PC (#4) LEFT PANEL x 1 PC...
  • Page 5 PARTS LIST (pg 4 of 16) Please check the parts carefully according to the parts list. If you are missing any parts, please contact our customer service department (please refer to page 16 of 16). (#9) MIDDLE SHELF x 1 PC (#10) STAINLESS STEEL TOP x 1 PC (#11) PUSH BAR x 1 PC (#12-1) SMALL DRAWER FRONT PANEL x 2 PCS...
  • Page 6 PARTS LIST (pg 5 of 16) Please check the parts carefully according to the parts list. If you are missing any parts, please contact our customer service department (please refer to page 16 of 16). (#13-1) MEDIUM DRAWER FRONT PANEL x 1 PC (#13-2) MEDIUM DRAWER LEFT PANEL x 1 PC (#13-3) MEDIUM DRAWER RIGHT PANEL x 1 PCS (#13-4) MEDIUM DRAWER BACK PANEL x 1 PC...
  • Page 7 PARTS LIST (pg 6 of 16) Please check the parts carefully according to the parts list. If you are missing any parts, please contact our customer service department (please refer to page 16 of 16). (#15) SWIVEL WHEEL W/O BRAKE x 2 PCS (#17) BUMPER x 4 PCS (#18) RIGHT BACK CORNER PROTECTOR x 1 PC (#19) LEFT BACK CORNER PROTECTOR x 1 PC...
  • Page 8 PARTS LIST (pg 7 of 16) Please check the parts carefully according to the parts list. If you are missing any parts, please contact our customer service department (please refer to page 16 of 16). (#24) SCREWDRIVER x 1PC (#25) SCREW D (M8 x 18) x 16 PCS (#26) SCREW C (M4 x 18) x 16 PCS (#27) Middle Crossbar x 1 PC (#28) LARGE DRAWER MAT x 1 PC...
  • Page 9 ASSEMBLY INSTRUCTIONS (pg 8 of 16) UltraHD Rolling Cabinet (Model No. 20185) TIP: A magnetic screwdriver is included for your convenience. If a power screwdriver is used, keep on a low torque setting. Step 1. Open the package, remove and place all parts to the side.
  • Page 10 ASSEMBLY INSTRUCTIONS (pg 9 of 16) UltraHD Rolling Cabinet (Model No. 20185) Install the Right Panel (#3) Step 4. Attach the Right Panel (#3) to Front Frame (#2). Make sure the “Top” of the Right Panel (#3) is on the Stainless Steel Top (#10).
  • Page 11 ASSEMBLY INSTRUCTIONS (pg 10 of 16) UltraHD Rolling Cabinet (Model No. 20185) Step 7. Install Wheels (#14 and #15) Attach Wheels (#14 and #15) to the Bottom Panel (#1) and surrounding frame. Make sure the Swivel Wheels with Brake are installed at the front side. Use Screw D Front (#25) to tighten them.
  • Page 12 ASSEMBLY INSTRUCTIONS (pg 11 of 16) UltraHD Rolling Cabinet (Model No. 20185) Lift the Storage Cabinet upright, fix the Middle Panel (#5) with the Upper and Bottom Back Panel (#6 & #7) using 3 pcs of Screw A (#20) to tighten.
  • Page 13 ASSEMBLY INSTRUCTIONS (pg 12 of 16) UltraHD Rolling Cabinet (Model No. 20185) Step 12: Install Large Drawer Base Panel (#16-4) Fit and attach Large Drawer Base Panel (#16-4) into the back slot of stainless steel Drawer Front (#16-1), use Screw B (#21) to tighten.
  • Page 14 ASSEMBLY INSTRUCTIONS (pg 13 of 16) UltraHD Rolling Cabinet (Model No. 20185) Install Small Drawer Side Panels (#12-2 and #12-3). Step 15： Fit and attach Small Drawer Side Panels (#12-2 and #12-3) one at a time into the back of the Small Drawer Front Panel (#12- 1).
  • Page 15 ASSEMBLY INSTRUCTIONS (pg 14 of 16) UltraHD Rolling Cabinet (Model No. 20185) Step 19. Place the Small and Large Drawers (#12)(#16) Pull out the sliders completely, then attach the drawer to the sliders. Make sure the square holes on the drawer side panels are line up, and the drawer is hooked onto the sliders completely.
  • Page 16 ASSEMBLY INSTRUCTIONS (pg 15 of 16) UltraHD Rolling Cabinet (Model No. 20185) Step 19. Install the Shelf (#9). a. Decide the height for the Middle Shelf (#9), place the Hooks (#23) into the hook slots and push down. Note: The Middle Shelf has 4 Hooks at four corners for support. Place the 4 Hooks at the four corners and make sure they are the same height.

  • Page 17: Contact Information

    (pg 16 of 16) *If you are missing any parts, have any questions, or need additional assistance in assembly, please contact our bilingual (English and Spanish) customer service department at: Seville Classics, Inc. 19401 South Harborgate Way Torrance, CA 90501...
