Stelpro B1T1 Series Installation

electric baseboard | b series

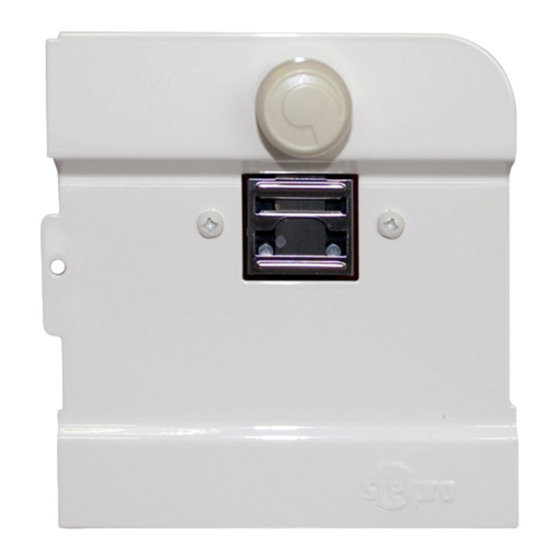

Built-in thermostat installation
b1t1 series

Junction Box inStallation on right SiDe

warning
Before installing and operating this product, the user and/or installer must read, understand and follow these instructions and keep them handy for future
reference. If these instructions are not followed, the warranty will be considered null and void and the manufacturer deems no further responsibility for this product.
The following instructions must be adhered to in order to avoid personal and serious injuries, property damages and potentially fatal electric shocks.
Switch off the power at the circuit breaker/fuse before installing, repairing and cleaning the unit.
Make sure the unit is appropriate for the intended use (if needed, refer to the product catalog or a representative).
1. Remove the front cover of the baseboard. Unscrew and remove the
front cover of the right junction box.
2. Remove the wire nut that connects the black wire from the thermal
protection and the red wire coming out of the wireway. Connect the
Black wire of the thermostat with the black wire coming out of the
thermal protection.
3. The other wire of the thermostat must be connected to the supply
line (L1). FIG. 2
4. Take the red wire coming out of the wireway (right side) and connect
it with the other feed wire (L2/N). FIG. 2
5. Close the junction box and replace the cover, making sure the wires
are well placed inside the box.
For further information or to consult this guide online, please visit our website at www.stelpro.com
Stelpro DeSign inc. | Saint-Bruno-de-Montarville | Quebec | J3V 6l7
fig. 1 fig. 2
fig. 3
INSB1T10316
