INSTALLATION INSTRUCTIONS
CARE AND MAINTENANCE
Reliant Two-Piece Toilet
®
250AA104.020 - Chair Height Elongated
Bowl: 3437A101.020
Tank: 4425A104.020
250CA104.020 - Standard Height Elongated
Bowl: 3437C101.020
Tank: 4425A104.020
250DA104.020 - Standard Height Round Front
Bowl: 3437D101.020
Tank: 4425A104.020
Thank you for selecting American Standard – the benchmark of fine quality for over 100 years. To ensure this product is installed
properly, please read these instructions carefully before you begin. (Certain installations may require professional help.) Also be
sure your installation conforms to local codes.
CAUTION: PRODUCT IS FRAGILE. TO AVOID BREAKAGE AND POSSIBLE INJURY HANDLE WITH CARE!
!
NOTE: Pictures may not exactly define contour of china and components.
RECOMMENDED TOOLS AND MATERIALS
Putty Knife Regular Screwdriver
Hacksaw Wax Ring/Gasket

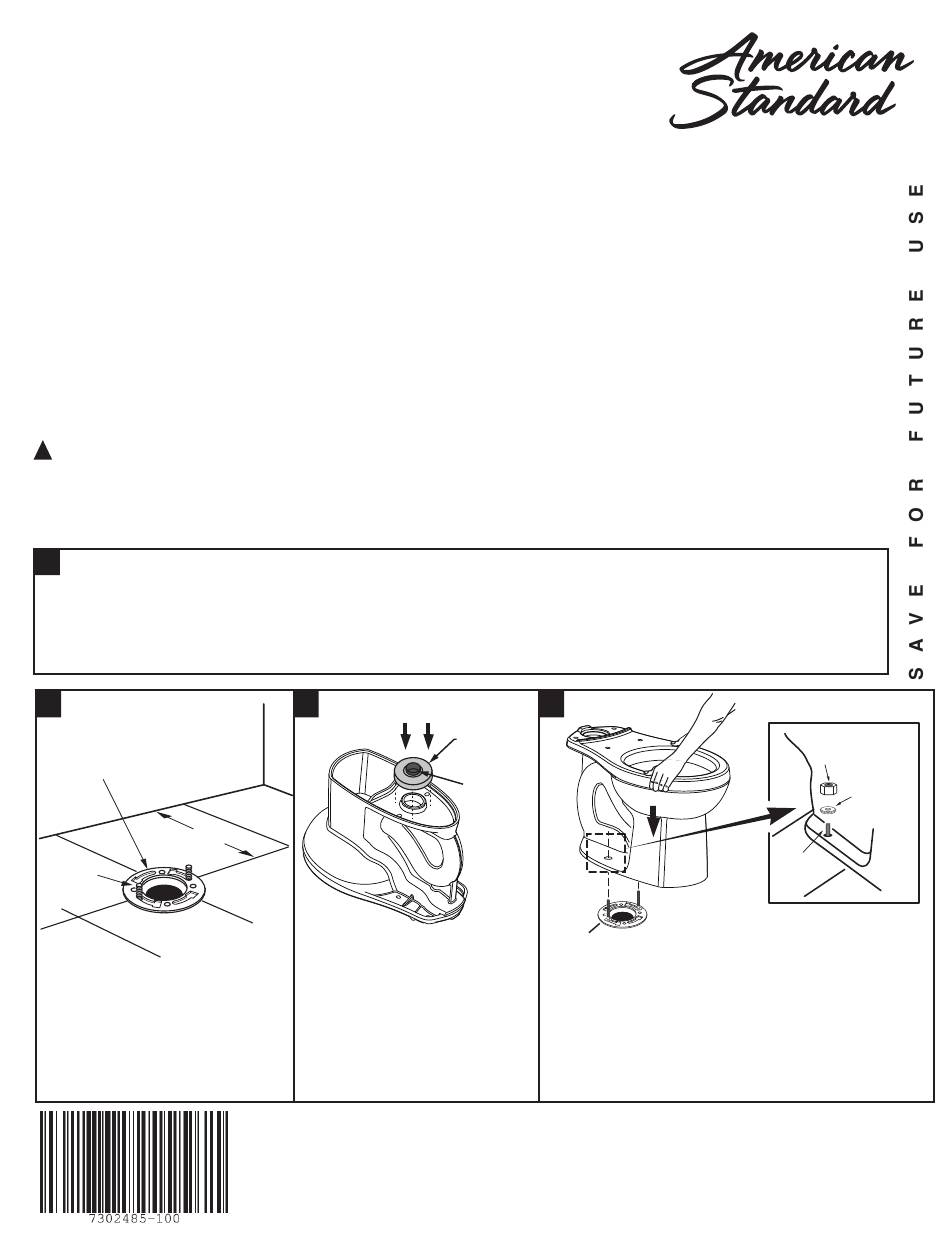

1 REMOVE OLD TOILET
a. Close toilet supply valve and flush tank completely. Towel or sponge remaining water from tank and bowl.
b. Disconnect and remove supply line. NOTE: If replacing valve, first shut off main water supply!
c. Remove old mounting hardware, remove toilet and plug floor waste opening to prevent escaping sewer gases.
d. Remove closet bolts from flange and clean away old wax, putty, etc. from base area.
NOTE: Mounting surface must be clean and level before new toilet is installed!
2
CLOSET FLANGE
A
CLOSET
BOLTS
INSTALL CLOSET BOLTS
Install closet bolts in flange channel
and slide into place parallel to wall.
Adjustable Wrench
Flexible Supply Tube
3
Press Firmly
INSTALL WAX SEAL
Invert toilet on floor (cushion to
prevent damage), and install wax
ring evenly around waste flange
(horn), with tapered end of ring
facing toilet. Apply a thin bead of
sealant around toilet base.
P r o d u c t n a m e s l i s t e d h e r e i n a r e t r a d e m a r k s o f A S A m e r i c a I n c .
© A S A m e r i c a I n c . 2 0 2 0
Sealant
Closet Bolts
4
WAX
RING
A3
PLASTIC
CONE
MUST FACE
.
AWAY
FROM BOWL
.
FLANGE
POSITION TOILET ON FLANGE
a. Unplug floor waste opening and install toilet on
closet flange so bolts project through mounting holes.
b. Loosely install retainer washers and nuts. Side of
washers marked "THIS SIDE UP" must face up!
Tape Measure
Carpenters Level
NUT
CLOSET
BOLT
Apply weight evenly.
Do not move after placement.
Water tight seal may break.
7302485-100 10/20
TAPERED
WASHER
