INSTALLATION INSTRUCTIONS
CARE AND MAINTENANCE

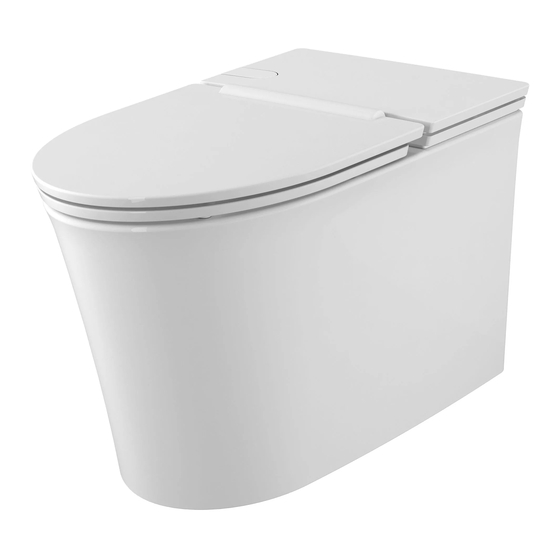

Low Profile Studio
Model 2548A - Elongated, Right Height
Thank you for selecting American Standard - the benchmark of fine quality for over 140 years. To ensure this product is
installed properly, please read these instructions carefully before you begin. (Certain installations may require professional
help.) Also be sure your installation conforms to local codes.
CAUTION: PRODUCT IS FRAGILE. TO AVOID BREAKAGE AND POSSIBLE INJURY HANDLE WITH CARE!
!
NOTE: Pictures may not exactly define contour of china and components.

RECOMMENDED TOOLS AND MATERIALS

Putty Knife
Regular Screwdriver
Hacksaw
Wax Ring/Gasket
Sealant
Tape Measure
20" x 1/2" Flexible Supply Hose for outside and inside installation of toilet supply line.
Standard 1/2" Supply valve for outside toilet installation or 1/2" 1/4-1/2 turn compact
supply valve for behind or hidden supply line installation.
1

REMOVE OLD TOILET

a. Close toilet supply valve and flush tank completely. Towel or sponge remaining water from tank and bowl.
b. Disconnect and remove supply line. NOTE: If replacing valve, first shut off main water supply!
c. Remove old mounting hardware, remove toilet and plug floor waste opening to prevent escaping sewer gases.
d. Remove closet bolts from flange and clean away old wax, putty, etc. from base area.
NOTE: Mounting surface must be clean and level before new toilet is installed!
Two water supply line locations are suggested with this toilet, outside of toilet or behind toilet locations.
Water supply valve will need to be relocated. Refer to roughin for water supply locations suggested.
2

ROUGHING-IN DIMENSIONS:

NOTE: Distance from wall to closet flange centerline must be as listed below:
FINISHED WALL
1" (25 mm)
12"
(305 mm)
IMPORTANT:
Water supply on the wall is required at 10" (254mm) minimum from centerline of the toilet. See rough-in for outside toilet supply line installation.
For behind toilet or hidden supply line installation, install supply at centerline of toilet 11-1/2" (292mm) above finished floor using 'compact' 1/2"
1/4 to 1/2 turn shutoff valve.
NOTE: Depending upon the compact 1/4 turn supply valve purchased, ensure it will correctly fit and operate at the location behind the trap way
inside the toilet!
Check your supply and hose dimensions. Requires a 1/2" (13mm) Supply Valve and Hose.
The geometry of the toilet gives space for these 2 supply line installation locations.
Product names listed herein are trademarks of AS America, Inc.
© AS America, Inc. 2020
S Toilet
®
Adjustable Wrench
Closet Bolts
Carpenters Level
31-1/8"
(790 mm)
FINISHED FLOOR
with Seat
®
SUPPLY
LINE
16-1/2"
(419 mm)
*
11-1/2"
(292 mm)
*
5-1/2"
(140 mm)
*
10"
(254 mm)

ITEMS INCLUDED

x1 T-Handle
x2 T-Bolt Nuts
16-3/8"
(416 mm)
BEHIND TOILET
SUPPLY LINE
18-1/2"
(468 mm)
FINISHED
FLOOR
15-3/8"
(392 mm)
7302429-100 Rev. 1 2/ 2 0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Low Profile Studio S Toilet Elongated Right Height with Seat 2548A and is the answer not in the manual?

Questions and answers

Summary of Contents for American Standard Low Profile Studio S Toilet Elongated Right Height with Seat 2548A

  • Page 1 Seat ® Thank you for selecting American Standard - the benchmark of fine quality for over 140 years. To ensure this product is installed properly, please read these instructions carefully before you begin. (Certain installations may require professional help.) Also be sure your installation conforms to local codes.
  • Page 2 INSTALL CLOSET BOLTS INSTALL WAX SEAL WAX RING Install closet bolts in flange channel, turn 90 ° , and Invert toilet on floor (cushion to prevent damage), and install wax slide into place 6" (152 mm) apart and parallel to wall. ring evenly around waste flange (horn), with tapered end of ring facing toilet.
  • Page 3 INSTALL TOILET Position toilet squarely to wall and, with a rocking motion, press bowl down fully on wax ring and flange. Alternately tighten nuts until toilet is firmly seated on floor. CAUTION: DO NOT OVERTIGHTEN NUTS OR BASE MAY BE DAMAGED! Once toilet is fully installed and flange nuts secured, carefully turn the Regulator to the right (clockwise).
  • Page 4 Normal supply pressure must be at least 30 psi. In the United States: In Canada: In Mexico: American Standard Brands LIXIL Canada ULC American Standard B&K Mexico 5900 Avebury Rd. S. de R.L. de C. 1 Centennial Ave Piscataway, NJ 08854 Mississauga, Ontario...
