INSTALLATION INSTRUCTIONS
AquaWash

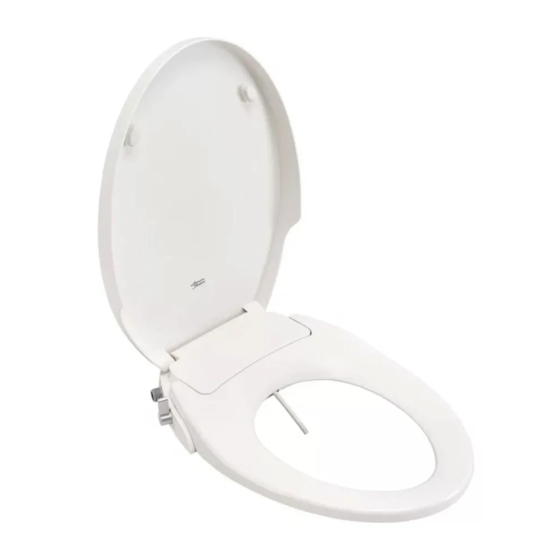

2.0 SpaLet
®
Model 8019A60GPC
Thank you for selecting American Standard – the benchmark of fine quality for over 100 years. To ensure this product is installed
properly, please read these instructions carefully before you begin. (Certain installations may require professional help.) Also be
sure your installation conforms to local codes.
NOTE: Pictures may not exactly depict toilet seat and components.
FUNCTIONAL SETTING KEY
Water temperature
LED indicator
Water temperature
adjustment key
KNOB
STOP
Back
Cleansing
All product names listed herein are trademarks of AS America, Inc. unless otherwise noted.
© AS America, Inc. 2018
Seat
®
Functional
Setting Key
Seat temperature
LED indicator
Seat temperature
adjustment key
Knob
Front
Cleansing
Release
Button
Water supply
hose joint
Drain Plug
Toilet cover
Toilet seat
Nozzle
760294-100
Advertisement
Related Manuals for American Standard 8019A60GPC
Summary of Contents for American Standard 8019A60GPC
- Page 1 Model 8019A60GPC Thank you for selecting American Standard – the benchmark of fine quality for over 100 years. To ensure this product is installed properly, please read these instructions carefully before you begin. (Certain installations may require professional help.) Also be sure your installation conforms to local codes.
- Page 2 Model 8019A60GPC Thank you for selecting American Standard – the benchmark of fine quality for over 100 years. To ensure this product is installed properly, please read these instructions carefully before you begin. (Certain installations may require professional help.) Also be sure your installation conforms to local codes.
-
Page 3: Installation
INSTALLATION Please read the instructions carefully before installing and using. The product requires a exible supply hose. WARNING The water shutoff valve should be near the installed product for ease of installation. Do not use in hot water line. Temperature above 104°F / 40°C will damage the product and void your warranty. Remove existing toilet seat. -
Page 4: Off Position
Install T-shaped adapter to the fill valve and supply hose as Make sure the control knob on the SpaLet seat is at the shown. Connect the included connection hose with filter on 90˚ off position. Turn the water shutoff valve back on. to the T-shaped adapter and the SpaLet seat inlet. - Page 5 KNOB OPERATION When the power cord is plugged into the AC wall socket, the SpaLet is automatically powered ON and the KNOB light and ® Night light are constantly ON. When the KNOB is turned to the Front or Back washing function, the KNOB’s light will start to glow ON & OFF indicating one of the wands are extending.
- Page 6 WATER AND SEAT TEMPERATURE SETTINGS For Water Temperature description, follow below Press the icon illustrating the “Water ” temperature button and the LED light for it will turn ON indicating Low Temp or about 95ºF / 35ºC. Press the button again and the LED light will appear brighter indicating a higher temperature, about 100ºF / 38ºC. Press a 3rd time and the LED will go OFF indicating heater is off.
-
Page 7: Cleaning And Maintenance
CLEANING AND MAINTENANCE DO NOT USE AGGRESSIVE CHEMICALS: You will need to clean the wands when they get build up for example: hydrogen chloride, paint thinner, benzene, of residue and calcium. You can pull the wands out with abrasive cloth or your finger and then with a soft bristle toothbrush, brush paper, polishing the nozzle head. -
Page 8: Troubleshooting Guide
AS AMERICA, INC. THREE YEAR LIMITED WARRANTY If inspection of this AS America, Inc. (“American Standard”) plumbing product, within one year after its initial purchase, confirms that it is defective in materials or workmanship, American Standard will repair or, at its option, exchange the product for a similar model.
