INSTALLATION INSTRUCTIONS
®
BOULEVARD Dual Flush One-Piece Toilet
Model 2891-Elongated Right Height
Thank you for selecting American Standard – the benchmark of fine quality for over 100 years. To ensure
this product is installed properly, please read these instructions carefully before you begin. (Certain
installations may require professional help.) Also be sure your installation conforms to local codes.
CAUTION: PRODUCT IS FRAGILE. TO AVOID BREAKAGE AND POSSIBLE INJURY HANDLE WITH CARE!
!
NOTE: Pictures may not exactly define contour of china and components.
RECOMMENDED TOOLS AND MATERIALS
Regular Screwdriver
Wax Ring/Gasket
1
REMOVE OLD TOILET
a. Close toilet supply valve and flush tank completely. Towel or sponge remaining water from tank and bowl.
b. Disconnect and remove supply line.
NOTE: If replacing valve, first shut off main water supply!
c. Remove old mounting hardware, remove toilet and plug floor waste opening to prevent escaping sewer gases.
d. Remove closet bolts from flange and clean away old wax, putty, etc. from base area.
NOTE: Mounting surface must be clean and level before new toilet is installed!
2

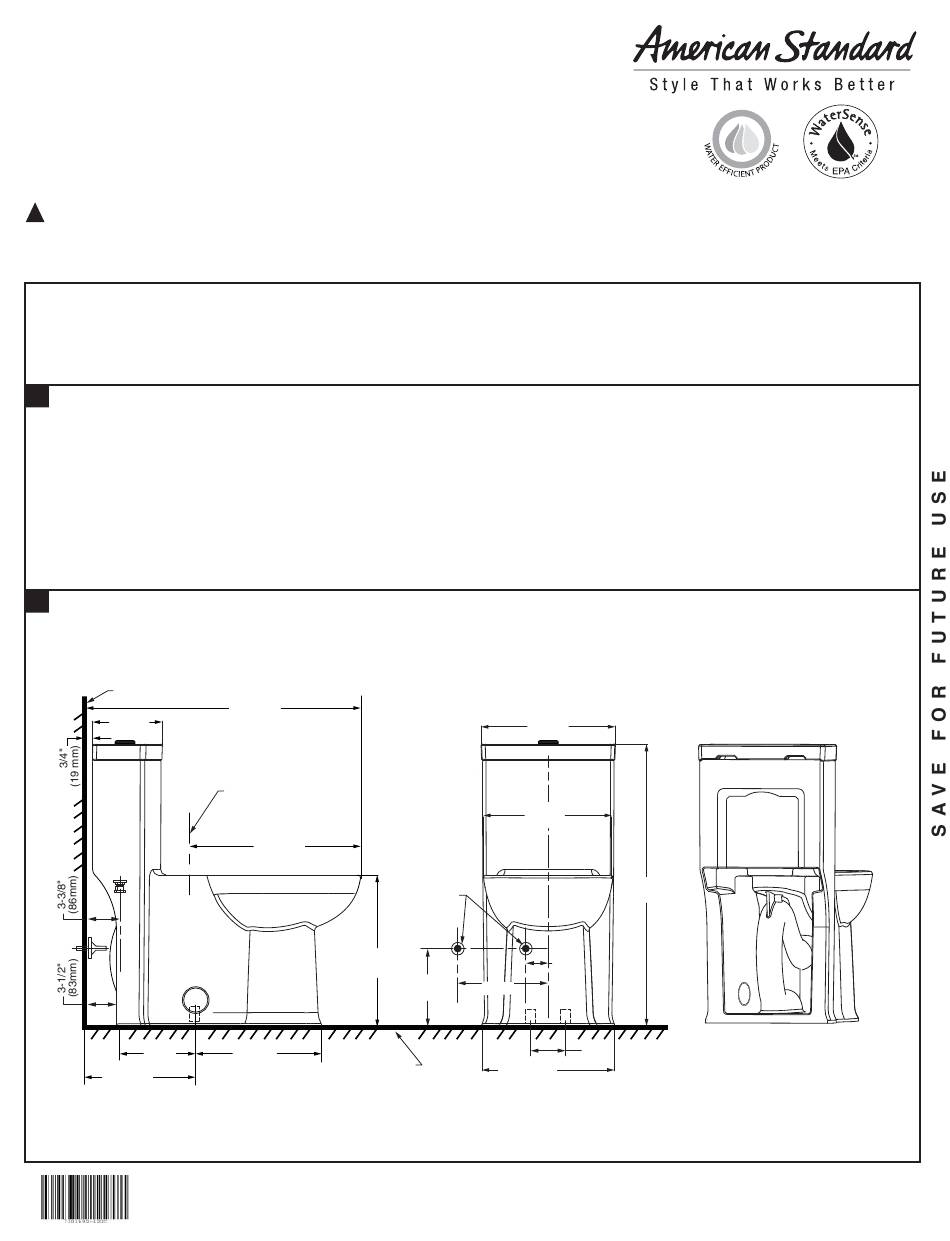

ROUGHING-IN DIMENSIONS:
NOTE: Distance from wall to closet flange centerline must be as listed below:
Model 2891-BOULEVARD DUAL FLUSH ONE PIECE TOILET
FINISHED WALL
7-1/2"
(192 mm)
8-1/2"
(217 mm)
12"
(305 mm)
IMPORTANT: Water supply on the wall is required at 3-3/4" or 9" from centerline of the toilet (see rough-in). First suggested position is
hidden behind the toilet. The geometry of the toilet gives space for this installation. The second suggested position is next to the toilet.
Between these two positions, the space for the supply between wall and toilet is limited to 3-1/4". In this case, check your supply and
hose dimensions.
Product names listed herein are trademarks of AS America, Inc.
© AS America, Inc. 2011
®
Adjustable Wrench
Flexible Supply Tube
29-3/4"
(756 mm)
C/L OF SEAT POST
HOLES 5-1/2"
(140mm) CENTERS
18-1/2"
(470 mm)
SUPPLY
REQUIRED
(position 1 or
position 2)
16-1/2"
(419 mm)
(140mm)
13-1/2"
(345 mm)
FINISHED
FLOOR
with Seat
Putty Knife
Closet Bolts
14-1/2"
(368 mm)
14"
(350 mm)
AS
3-3/4"
(95mm)
9"
5-1/2"
(229mm)
6"
(152mm)
14-1/4"
(364 mm)
Sealant Carpenters Level
Hacksaw Tape Measure
30-7/8"
(784 mm)
73 016 9 0 - 10 0 Rev. C
