- Page 1 Installation and Operation instruction SAVE CONNECT 2.0...
-
Page 2: Table Of Contents
Table of content 1 Introduction............. 1 Product description......1 Overview of supplied parts ....1 LED indicator codes ......1 2 To do offline commissioning ......2 3 To make online connection......9 4 To use the WPS feature (optional) ....13 5 To make connection with the SAVE TOUCH panel (optional) ...... -
Page 3: Introduction

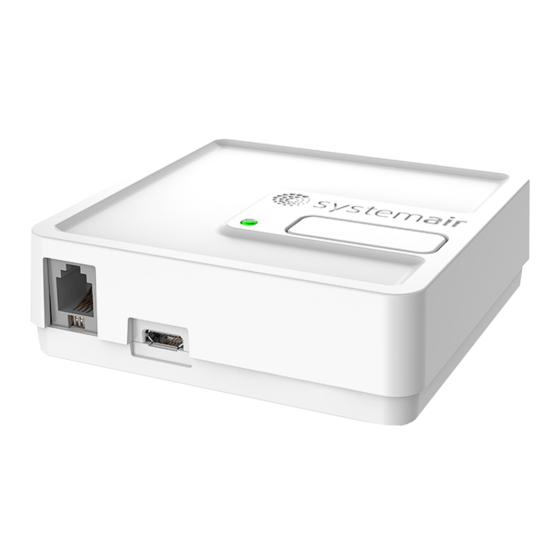

Introduction Product description Overview of supplied parts This product allows to control SAVE ventilation unit with a mobile application or any internet browser, both locally (WLAN) and remotely via internet. Note: SAVE CONNECT only supports 2.4 GHz wire- less frequency. The SAVE CONNECT module also provides addi- tional features: •... -
Page 4: To Do Offline Commissioning
To do offline commissioning Note: Skip this chapter if SAVE unit is already configured. Power off the SAVE unit. Connect the cable (B) to the SAVE CONNECT module. Connect the cable (B) to the connection box. Power up the SAVE unit. - Page 5 Press the button on the SAVE CONNECT Turn off mobile data on your phone. module 3 times very quickly. The LED will start to flash orange. SaveConnect Password 1234abcd Scan for Wi-Fi networks on your mobile Scan the code or go to the website phone.
- Page 6 Disable the Startup wizard to make sure it is not shown for the user.
- Page 7 If necessary, change the type of fan control. Press the button Set to save changes.
- Page 8 Configure supply and extract fan speed for each airflow level. Press the button Set to save changes. Select your country and configure date and time. Press the button Set to save changes.
- Page 9 Reset filter change timer and set new filter period. Press the button Set to save changes.
- Page 10 If necessary, disable the heater. Press the button Set to save changes.
-
Page 11: To Make Online Connection
To make online connection To use the SAVE CONNECT mobile app, the module has to be connected to the internet. Note: Skip to step 5 if the SAVE CONNECT module was connected to the SAVE unit by the installer. Power off the SAVE unit. Connect the cable (B) to the SAVE CONNECT module. - Page 12 Press the button on the SAVE CONNECT Turn off mobile data on your phone. module 3 times very quickly. The LED will start to flash orange. SaveConnect Password 1234abcd Scan for Wi-Fi networks on your mobile Scan the code or go to the website http://192.168.4.1.
- Page 13 Access point mode Station mode SSID (up to 32 symbols) Password (8 to 64 symbols) ******** Cloud domain (up to 100 symbols) homesulutions.systemair.com Go to menu Network settings. Press the button Scan. Access point mode Access point mode Station mode Station mode...
- Page 14 Go to the chapter 6 To download the app complete the connection procedure. 10 sec Power off the SAVE unit for 10 seconds, then power up again. The LED will start to flash green.
-
Page 15: To Use The Wps Feature (Optional)
To use the WPS feature (optional) Wait for the router and the SAVE CONNECT module to make a connection (up to 1 minute). The LED will start to flash slowly in green colour. Go to the chapter 6 To download the app complete the connection procedure. -
Page 16: To Make Connection With The Save Touch Panel (Optional)
To make connection with the SAVE TOUCH panel (optional) Service Communication Configure modbus and wireless settings Logs Alarm, fans and parameter logs Unit Backups Manange unit settings backup Password Settings Manage password settings Factory level Change factory settings Go to Service menu on the control panel. Go to the Communication menu on the Enter the service password (default 1111). - Page 17 Go to the chapter 6 To download the app complete the connection procedure. Scanning... HOME_WIFI Password Cancel q w e r Select your home Wi-Fi and enter your Wi-Fi password. Wi-Fi network must be password protected. Press OK to save.
-
Page 18: To Download The App
To download the app Troubleshooting Download and install the SAVE CONNECT app To reset to default settings from Google Play or the App store Disconnect the cable (B) from the SAVE Follow instructions on the SAVE CONNECT app CONNECT module. to complete the connection procedure. -
Page 19: Eu Declaration Of Conformity
Person authorized to compile the technical file: EU Declaration of conformity We, the manufacturer Nerijus Lapackas Company Systemair UAB Technical Manager Address Linų g. 101 This declaration relates exclusively to the machinery in the LT–20174 Ukmergė state in which it was placed on the market and excludes... -
Page 20: Declaration Of Conformity
Person authorized to compile the technical file: UK Declaration of conformity We, the manufacturer Nerijus Lapackas Company Systemair UAB Technical Manager Address Linų g. 101 This declaration relates exclusively to the machinery in the LT–20174 Ukmergė state in which it was placed on the market and excludes... -
Page 21: User Agreement
While using the Service you must not, and may have to reimburse Systemair for any costs and/or damages Systemair is not liable for any defect in the Service such as, Systemair or its supplier(s) incurs due to the breach of: but not limited to, damaging content such as malware, viruses, Trojan horses or hoax-viruses. - Page 22 Service transferred to countries outside the EU/EES. Systemair may at any time limit your access to, or use of the Through this agreement you hereby consent to Systemair’s Service in order to limit damage caused Systemair, its use of your personal data as explained above.
- Page 24 © Copyright Systemair AB All rights reserved Systemair AB reserves the rights to alter their products without notice. This also applies to products already ordered, as long as it does not affect the previously agreed specifications. Document in original language...
