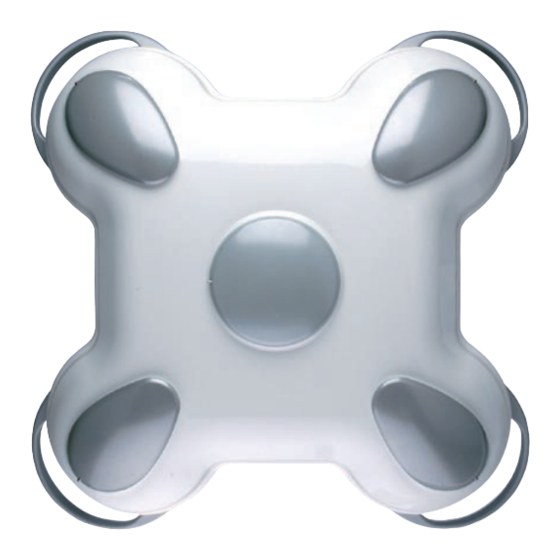

Summary of Contents for Getinge MAQUET HLX 3000
- Page 1 User ManUaL - en HLX 3000...
- Page 2 Copyright All rights reserved. May not be duplicated, adapted or translated, in whole or in part, without prior written permission except where allowed by copyright law. © Copyright Maquet S.A. Subject to technical changes. The illustrations and technical specifications provided in this manual may, on account of future product developments, differ slightly from the actual product supplied.
-
Page 3: Table Of Contents
| 3 | Contents Quality standards compliance Warnings Symbols used in this manual Symbols used on the product Introduction Description 2.1 Example of double configuration 2.2 HLX 3000 product range | 10 | 11 3.1 Energix WPS power supply unit | 11 3.2 Optional LCD | 12... -
Page 4: Quality Standards Compliance
| 4 | QUaLity standards CoMpLianCe CertifiCation of MaQUet sa’s QUaLity systeM LNE/G-MED certifies that the quality system developed by MAQUET SA for design, implementation, sales, installation and after-sales service of surgical lights complies with the requirements of the following international standards: ISO 9001:2008 ISO 13485:2004 referenCe standards... -
Page 5: Warnings
| 5 | Warnings Warning Changes or modifications not expressly approved by MAQUET SA could void the user’s authority to operate the equipment. Warning Light is a form of energy that can dry out tissue, particularly if light beams from more than one lighthead are superimposed. -
Page 6: Symbols Used In This Manual
| 6 | syMboLs Used in tHis ManUaL symbols Meaning Mandatory May affect patient or user safety recommendation Risk of damage to device or accessories Ce label The device complies with the requirements of European directive 93/42/EEC relating to medical devices. Medical equipment Classified with respect to electric shock, fire and mechanical hazards only in accordance with UL 60601-1, IEC 60601-2-41 and CSA C22.2... -
Page 7: Introduction
| 7 | introdUCtion intended Use The HLX 3000 range is designed for use in medical applications to illuminate patients' bodies during operations, diagnosis or treatment. The HLX 3000 range consists of single-arm, dual-arm or triple-arm ceiling-mounted lights with single or double forks. Some models are prewired for video (HANAUVISION). Possible options: comfort bracket, flat screen holder, separate camera holder, dimmer. - Page 8 | 8 | operation Ambient temperature: 10°C to 40°C Relative humidity: 20-75% Atmospheric pressure: 700 to 1060 hPa The HLX 3000 system must be installed and commissioned in accordance with the EMC information provided in chapter 10. Portable and mobile RF communication devices may affect the correct operation of this equipment.
-
Page 9: Description
| 9 | desCription eXaMpLe of doUbLe ConfigUration Figure 1 Main arm Spring arm Comfort bracket Fresnel lens Sterilisable handle Side positioning handle Underside Shell Cover 10 Lamp holder 11 Optional dimmer 12 Power on/off 13 Keypad used to increase lighting level 14 Keypad used to decrease lighting level 15 LED-indicator of the lighting level 16 Indicator of normal operation... -
Page 10: Hlx 3000 Product Range
| 10 | HLX 3000 prodUCt range The HLX 3000 surgical lighting system is available in three different versions: HLX 3003 HLX 3005 HLX 3004 tv pre-wired for a HANAUVISION camera HLX 3000 | User manual | EN | 0132102 | 2G |... -
Page 11: Use
| 11 | energiX Wps poWer sUppLy Unit The light is turned on and off via the ENERGIX WPS power supply units. Turns lighthead on and off with a single press. On/Off button Lighthead lights up gradually to the last intensity value stored in its memory. -
Page 12: Optional Lcd
| 12 | optionaL LCd The LCD is used to: Check the service life of consumables (bulbs, bulb holder, batteries), Perform routine tests (backup tests), Troubleshoot malfunctions. optionaL ControL via a reMote pC Light turned on via the Link not operational ENERGIX unit Settings are adjusted via the ENERGIX unit... -
Page 13: Optional Backup Power Supply
| 13 | optionaL baCkUp poWer sUppLy Warning In the event of a power cut, only lightheads connected to a backup power supply will remain The power supplies may be optionally equipped for use with your operating room's 24 V backup power supply. -
Page 14: Positioning
| 14 | positioning Moving tHe LigHtHead The light should be positioned prior to any procedures to avoid having to move it more than necessary later on. Correctly positioning the light for each operation will limit the chances of it coming into contact with other objects (IV pole, pendant, etc.). -
Page 15: Pre-Positioning Examples By Speciality
| 15 | pre-positioning eXaMpLes by speCiaLity pre-positioning surgical examples specialities General surgery Figure 1 Urology, organ transplants, gynaecology, delivery Figure 2 General surgery, abdominal surgery, digestive surgery, thoracic surgery Figure 3 Proctology Figure 4 HLX 3000 | User manual | EN | 0132102 | 2G |... - Page 16 | 16 | pre-positioning surgical examples specialities Neurosurgery Figure 5 Plastic and reconstructive surgery, face transplants, oral and maxillofacial surgery Figure 6 Otolaryngology, ophthalmology, dermatology Figure 7 note: The positions illustrated are given for guidance only. Each operator will choose the correct position of the light for his/her work habits.
-
Page 17: Degrees Of Rotation
| 17 | degrees of rotation 360° 360° 360° 360° 45° 50° 360° 360° 360° 360° 420° 420° Double fork version Unlimited rotation on all axles, except on the lighthead (stop at 420 °) 15° 360° 360° 40° Single fork version HLX 3000 | User manual | EN | 0132102 | 2G |... -
Page 18: Fitting The Sterilisable Handle
| 18 | fitting tHe steriLisabLe HandLe Warning Check that the sterilisable/disposable handle is compatible with the product. Before reusing the handle after it has been sterilised, always: Check for cracks. Check that the handle clicks into place correctly in the surgical light. fitting the sterilisable handle Insert the handle into the mount until it clicks into place. -
Page 19: Cleaning/Disinfection/Sterilisation
Wipe with a dry cloth. Make sure no liquid residue is left on the device after cleaning. reCoMMended prodUCts getinge Usa product: TEC-QUAT 256. anios products: SURFA’SAFE; 0.5% HEXANIOS G + R; ANIOSYME P.L.A.; SALVANIOS pH 10; ANIOS DDSH. schülke & Mayr products: ANTIFECT PLUS. -
Page 20: Cleaning And Sterilising The Handles
Rinsing: Rinse thoroughly in clean water to completely eliminate the detergent solution. Drying: Wipe with a clean lint-free cloth. disinfeCtion Handles may be disinfected by machine (e.g. Getinge) and rinsed at a maximum temperature of 93°C. Typical recommended cycles: step... - Page 21 | 21 | steriLisation After cleaning, the handles must be steam sterilised as set out below: Countries sterilisation temperature time drying cycle [°C] [min] [min] USA & Canada Prevacuum 132 - 135 ATNC (Prion) France (Prevacuum) Other countries Prevacuum Comply with national regulations Check that each handle is clean before continuing the process.
-
Page 22: Maintenance
| 22 | MaintenanCe first LeveL MaintenanCe daily checks (user) Solutions are listed in Section 11 Check the lightheads for chipped paint, impact marks and any other damage. Check the stability/drift of the main arms and the spring arms. Check that the spring arm remains in position. Three checkpoints: bottom, middle, top. -
Page 23: Annual Maintenance
| 23 | annUaL MaintenanCe To preserve your surgical light's original performance and reliability and ensure its safety, annual maintenance and inspections should be performed by: a MAQUET technician or an authorised MAQUET distributor, or a hospital technician trained in servicing MAQUET SA surgical lights. note: To find the training solution that best matches your needs, please contact your nearest MAQUET office. -
Page 24: Replacing The Bulbs
| 24 | repLaCing tHe bULb Warning Do not change the light bulb while operating. The unit must operate with the cover closed. When performing maintenance, beware of hot surfaces which are indicated by the following icon: reCoMMendation Replace bulbs every 1000 hours. Switch off the power supply and allow the lighthead to cool for 15 minutes. -
Page 25: Accessories
| 25 | aCCessories accessories Code part number Set of 3 sterilisable handles 5 679 17 999 HLX 005 Pack of 1 spare bulb IRC 5 679 01 947 XIR 001 40 W - 22,8 V Pack of 10 spare bulbs IRC 40 W - 22,8 V 5 679 01 948 XIR 010... -
Page 26: General Characteristics
| 26 | generaL CHaraCteristiCs (in aCCordanCe WitH standard ieC 60601-2-41 and ieC 60601-1) specifications Unit HLX 3003 HLX 3005 HLX 3004tv Nominal illumination* (Ec) 80,000 140,000 100,000 ± 20% Diameter d10 16.5 (6.5) 16.5 (6.5) 16.5 (6.5) (inch) Diameter d50 9 (3.5) 9 (3.5) 9 (3.5) -
Page 27: Emc Declaration
| 27 | eMC deCLaration (in aCCordanCe WitH standard en 60601-1-2: 2001) table 201 - guidance and manufacturer's declaration — electromagnetic emissions The HLX 3000 system is intended for use in the electromagnetic environment specified below. The customer or the user of the HLX 3000 system should ensure that it is used in such an environment. - Page 28 | 28 | table 202 - guidance and manufacturer's declaration — electromagnetic immunity The HLX 3000 system is intended for use in the electromagnetic environment specified below. The customer or the user of the HLX 3000 system should ensure that it is used in such an environment.
- Page 29 | 29 | table 204 - guidance and manufacturer's declaration — electromagnetic immunity The HLX 3000 system is intended for use in the electromagnetic environment specified below. The customer or the user of the HLX 3000 system should ensure that it is used in such an environment. immunity electromagnetic environment –...
- Page 30 | 30 | table 206 - recommended separation distances between portable and mobile rf communications equipment and the HLX 3000 system The HLX 3000 system is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the HLX 3000 system can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the HLX 3000 system as recommended below, according to the maximum output power of the communications...
-
Page 31: Troubleshooting
| 31 | troUbLesHooting problem Likely cause Corrective action The lighthead does Faulty or missing bulb Cut off the power supply and not turn on replace the bulb(s) Power cut Check if other devices on the same supply network are operating Other reason Call MAQUET technical... - Page 32 MAQUET SA Parc de Limère Avenue de la Pomme de Pin CS 10008 ARDON T h e G E T I N G E G r o u p i s a l e a d i n g g l o b a l p r o v i d e r o f 45074 ORLÉANS CEDEX 2, France equipment and systems that contribute to quality enhancement and Telephone: +33 (0) 2 38 25 88 88...
