GARMIN BLUENET
20 SWITCH
™
INSTALLATION INSTRUCTIONS
Important Safety Information
WARNING
See the Important Safety and Product Information guide in the product box for product warnings and other
important information.
Failure to install this device according to these instructions could result in personal injury, damage to the vessel
or device, or poor product performance.
CAUTION
To avoid possible personal injury, always wear safety goggles, ear protection, and a dust mask when drilling,
cutting, or sanding.
NOTICE
When drilling or cutting, always check what is on the opposite side of the surface to avoid damaging the vessel.
Garmin BlueNet 20 Switch Overview

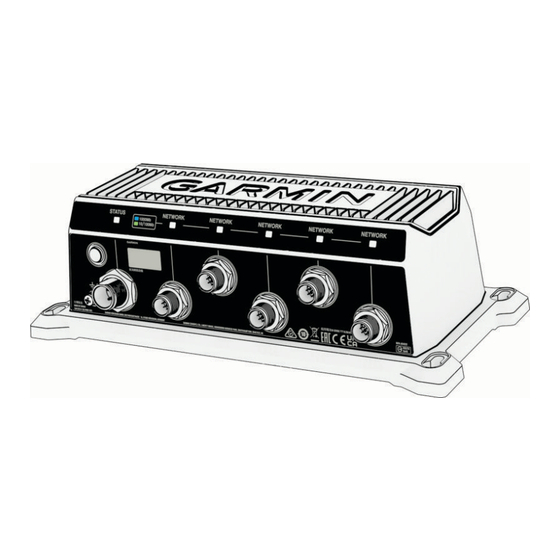

The Garmin BlueNet 20 switch allows for communication between Garmin
®
devices using Garmin BlueNet
network technology. This device is compatible only with Garmin BlueNet devices and cannot be used to connect
a legacy Garmin Marine Network device to a Garmin BlueNet device directly. If your network contains devices
using both types of network protocols, you must use a Garmin BlueNet 30 gateway (sold separately) to enable
communication between the devices. To learn more about Garmin BlueNet network technology, go to
garmin
.com/manuals/bluenet.
September 2023
GUID-BE6B8B37-BF40-48B8-A143-B79C326CA5E6 v1
