Garmin ONDECK GTB 10 Installation Instructions Manual

ONDECK
INSTALLATION
INSTRUCTIONS

Important Safety Information

Failure to follow these warnings, cautions, and notices could
result in personal injury, damage to the vessel or device, or poor
product performance.
See the Important Safety and Product Information guide in the
product box for product warnings and other important
information.
When connecting the power cable, do not remove the in-line
fuse holder. To prevent the possibility of injury or product
damage caused by fire or overheating, the appropriate fuse
must be in place as indicated in the product specifications. In
addition, connecting the power cable without the appropriate
fuse in place voids the product warranty.
To avoid possible personal injury, always wear safety goggles,
ear protection, and a dust mask when drilling, cutting, or
sanding.
To avoid possible personal injury or damage to the device and
vessel, disconnect the vessel's power supply before beginning
to install the device.
To avoid possible personal injury or damage to the device or
vessel, before applying power to the device, make sure that it
has been properly grounded, following the instructions in the
guide.
For the best possible performance, the device must be installed
according to these instructions.
When drilling or cutting, always check what is on the opposite
side of the surface to avoid damaging the vessel.
Read all installation instructions before proceeding with the
installation. If you experience difficulty during the installation,
contact Garmin Product Support.
®
Contacting Garmin Support
• Go to support.garmin.com
product manuals, frequently asked questions, videos, and
customer support.
• In the USA, call 913-397-8200 or 1-800-800-1020.
• In the UK, call 0808 238 0000.
• In Europe, call +44 (0) 870 850 1241.

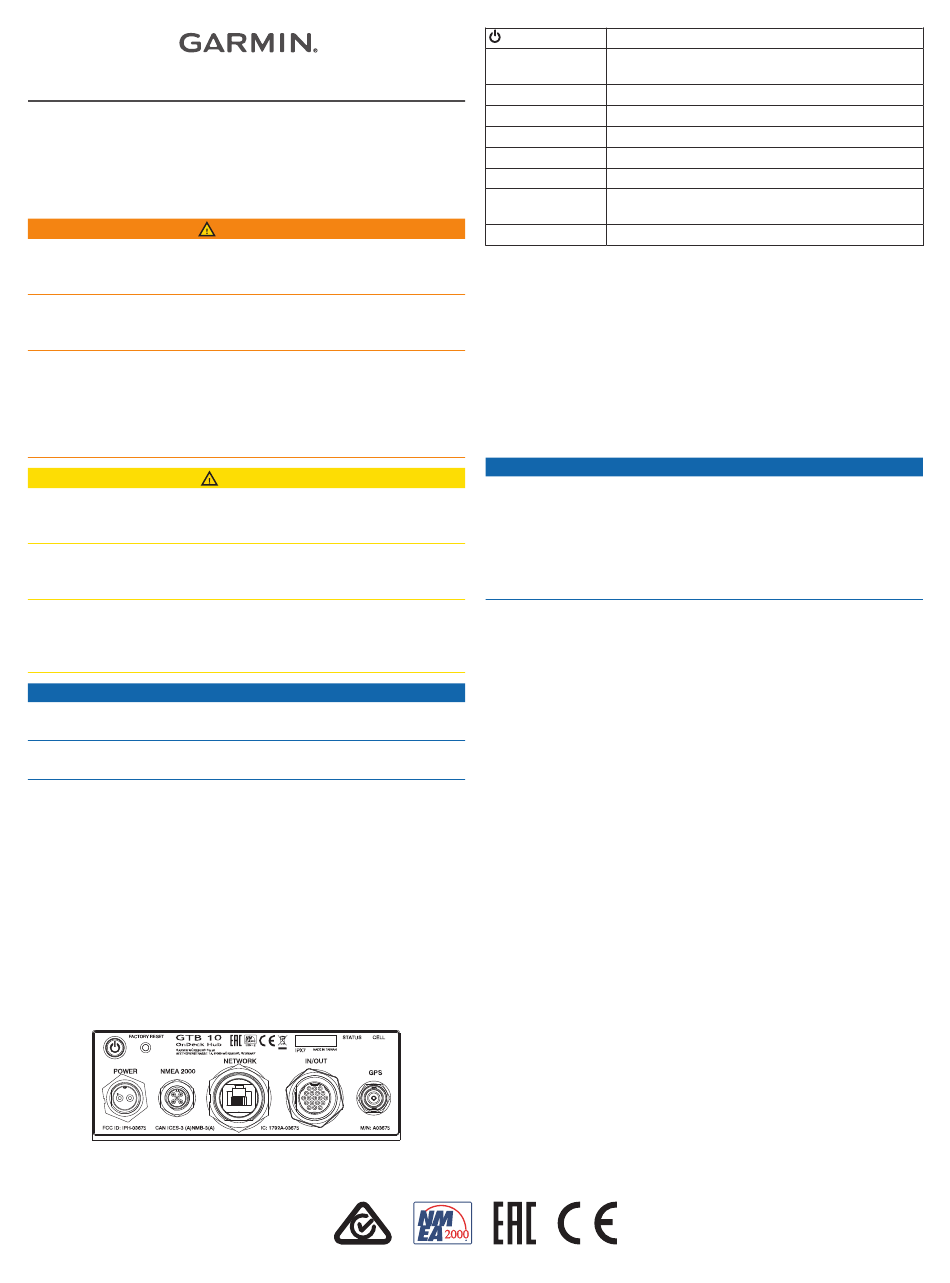

Connector View
August 2020
™
WARNING
CAUTION
NOTICE
for help and information, such as
Power button
FACTORY RESET Deletes all personal data and resets default
settings
STATUS Indicates device status
CELL Indicates cell operation
POWER Power cable connection
NMEA 2000 NMEA 2000
NETWORK Garmin Marine Network
IN/OUT Connects relays and wired sensors, such as
temperature, security, and shore power
GPS Connects to an external GPS antenna
Tools Needed
• Drill
• Drill bits appropriate for the surface and hardware
• Phillips screwdrivers
• Pencil
• Solderless wire-splice connector, or solder and heat-shrink
tubing
Mounting Considerations
This device should be mounted in a location that is not exposed
to extreme temperatures or conditions. The temperature range
for this device is listed in the product specifications. Extended
exposure to temperatures exceeding the specified temperature
range, in storage or operating conditions, may cause device
failure. Extreme-temperature-induced damage and related
consequences are not covered by the warranty.
• You must mount the device in a location where it will not be
submerged.
• You must mount the device in a location with adequate
ventilation where it will not be exposed to extreme
temperatures.
• You must mount the device at least 102 mm (4 in.) from
cables and other potential sources of interference.
• You must mount the device in a location that allows room for
the routing and connection of all cables.
• You must mount the device with the connectors facing up
when mounted on a horizontal surface or out when mounted
on a vertical surface. Do not install with the connectors facing
down or facing the mounting surface. The internal GPS
antenna will not work if mounted in this orientation. See
Installing The Antennas, page
• For optimal internal GPS reception, you should mount the
device in a location where it is above the water line when the
vessel is in the water and if possible, has a clear view of the
sky.
• If you mount the device in a vessel with a metal hull or with
the internal GPS antenna blocked or oriented poorly, you
must connect the device to an external GPS antenna (sold
separately).
• For the best cellular signal, mount the device where it has a
clear view of the sky. If it is mounted inside of a cabin, it
should be close to a window so it can receive the cellular
signal.
GUID-6AED2D91-1EED-4702-BB7B-92D845BF82D6 v4
® network
NOTICE
2.
