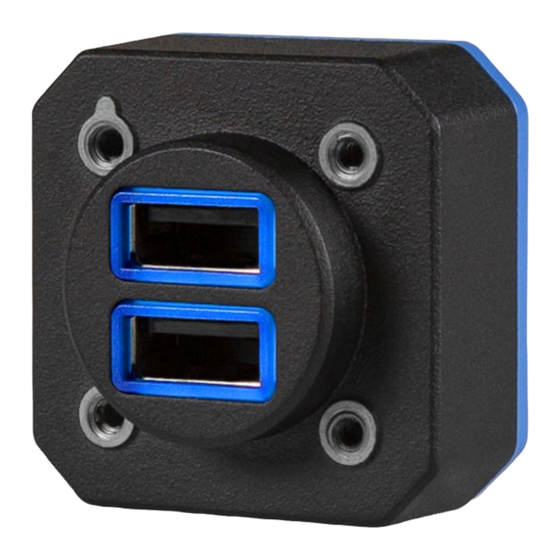

GSB 15
USB Database and
Charging Hub
Installation Manual
190-00303-A3
October, 2020
Revision 3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GSB 15 and is the answer not in the manual?

Questions and answers

Tom
July 8, 2025

How do I hook up the GSB 15

0

Related Manuals for Garmin GSB 15

Summary of Contents for Garmin GSB 15

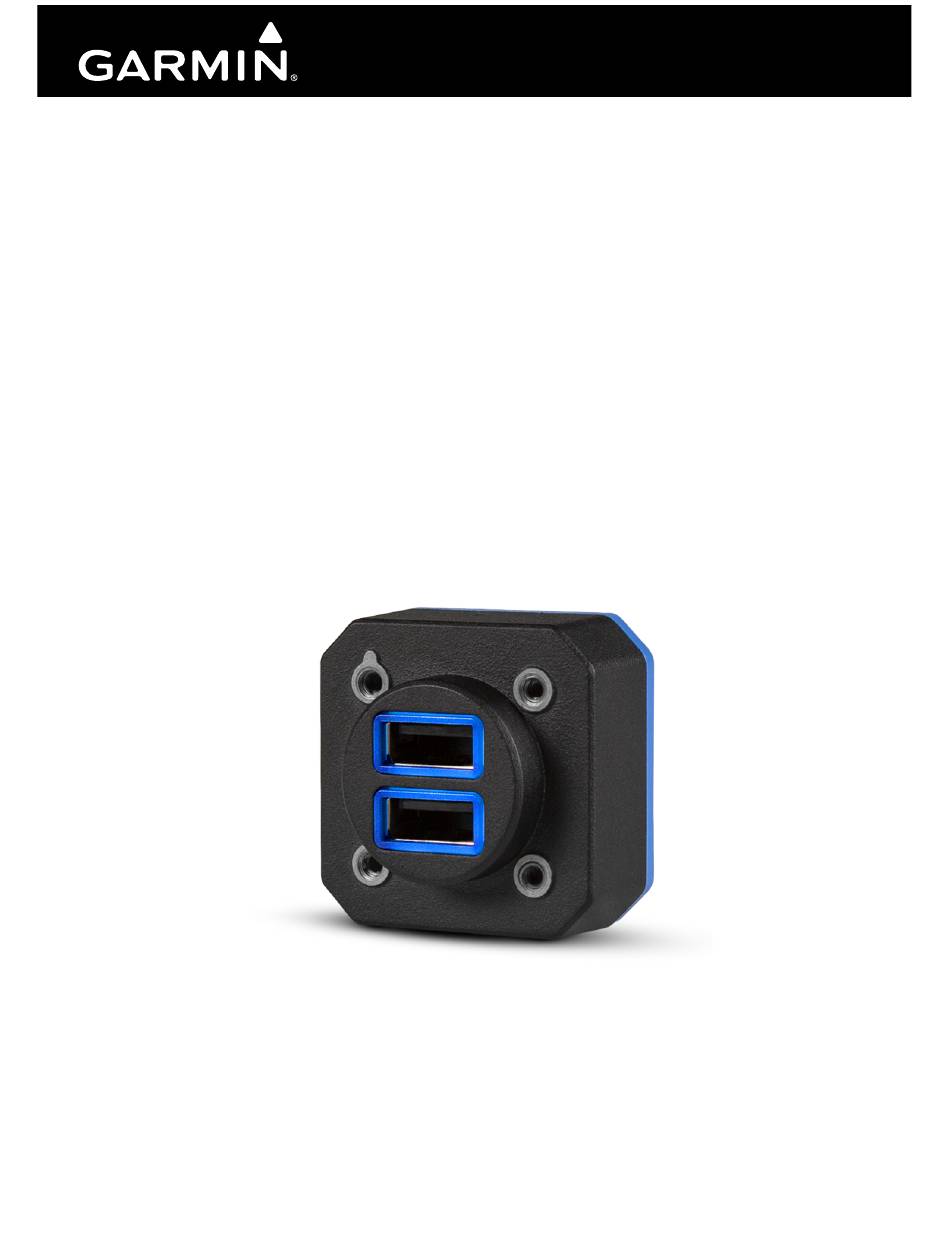

  • Page 1 GSB 15 USB Database and Charging Hub Installation Manual 190-00303-A3 October, 2020 Revision 3...
  • Page 2 Garmin. Garmin hereby grants permission to download a single copy of this manual and of any revision to this manual onto a hard drive or other electronic storage medium to be viewed and to...
  • Page 3 California to cause cancer, birth defects, or reproductive harm. This Notice is being provided in accordance with California's Proposition 65. If you have any questions or would like additional information, please refer to our web site at http://www.garmin.com/ prop65. 190-00303-A3 GSB 15 Installation Manual Rev. 3 Page i...
  • Page 4 Software are valuable trade secrets of Garmin and/or its third-party providers and that the Software in source code form remains a valuable trade secret of Garmin and/or its third-party providers. You agree not to reproduce, decompile, disassemble, modify, reverse assemble, reverse engineer, or reduce to human readable form the Software or any part thereof or create any derivative works based on the Software.

  • Page 5: Table Of Contents

    4.5 Software Loading Procedure ................... 4-1 Section 5 Continued Airworthiness..............5-1 Section 6 Connector Pinout Information............6-1 6.1 Pin Function List......................6-1 Appendix A Outline and Installation Drawings ..........A-1 Appendix B Interconnect Drawings..............B-1 190-00303-A3 GSB 15 Installation Manual Rev. 3 Page iii...

  • Page 6: Section 1 Declaration Of Design And Performance

    The full manual is intended to provide mechanical and electrical information for use in the planning and design of an installation of the GSB 15 into an aircraft. This manual is not a substitute for an approved airframe-specific maintenance manual, installation design drawing, or complete installation data package.
  • Page 7 1.2.1 Unit Identification The GSB 15 can be identified by the part numbers listed in Table 1-1. Table 1-1 GSB 15 Unit Identification Garmin P/N Garmin P/N Marketing Label (Unit Only) (Shipping Level) 011-04937-0( ) 010-02201-0( ) GMN-02201 GSB 15...
  • Page 8 Table 1-9 Contents of Decorative Cover, Black Powder Coat (011-05291-01) Item Garmin P/N Quantity SMP, Decorative Cover, GSB 15, w/VHB 115-03439-01 DCP, Decorative Cover, GSB 15, Black Powder Coat 125-00627-03 Screw, 4-40x.312, FLHP100, SS/P 211-63204-09 190-00303-A3 GSB 15 Installation Manual Rev.
  • Page 9 1.2.4 Mod Level History The following tables identify hardware modification (Mod) Levels for the GSB 15. Mod Levels are listed with the associated service bulletin number, service bulletin date, and the purpose of the modification. The table is current at the time of publication of this manual (see date on front cover) and is subject to change without notice.

  • Page 10: Certification Statement

    1.3 Certification Statement The GSB 15 has been shown to meet compliance with the claimed TSO(s) when interfaced with the equipment defined in this installation manual, and installed in accordance with the requirements and limitations as defined in this installation manual.

  • Page 11: Interface Summary

    1.3.5 Design Assurance Levels The GSB 15 contains no software or airborne electronic hardware with related design assurance levels. The GSB 15 COTS module provides no design assurance for pass-through data. Those installing this article with other articles utilizing pass-through data must determine means for detecting misleading or corrupt data.

  • Page 12: Performance Technical Specifications

    Environmental Qualification Form Reference It is the responsibility of the installing agency to obtain the latest revision of the GSB 15 Environmental Qualification Form. To obtain a copy of this form, see the dealer/OEM portion of the Garmin web site (www.garmin.com).

  • Page 13: Limitations

    (TSO). Installation of this article requires separate approval . 1.7 Operating Instructions The GSB 15 has a configurable backlight. Grounding pin 5 will de-activate the backlight, allowing pin 5 to float enables the backlight. The backlight brightness is calibrated for night-time use and may not be visible in daylight conditions.

  • Page 14: Section 2 Installation Overview

    • Circuit breaker 2.3 Installation Configurations The GSB 15 can be installed in either a rear connector or side connector configuration. Refer to the outline and installation drawings in Appendix Optional 2.25” and 3.125” mounting kits are also available (see...

  • Page 15: Cabling And Wiring

    The GSB 15 is equipped with over-temperature detection that may reduce output current to 1.5A (max) . After the device has cooled, normal output current 3A (max) will resume.

  • Page 16: Mounting Requirements

    2.8 Mounting Requirements The small size of the GSB 15 allows it to be installed in many places. It is intended to be installed to the instrument panel or other suitable cabin surface. There are no special requirements for viewing, reach, or proximity.

  • Page 17: Section 3 Installation Procedure

    For rear unit (011-04937-00) installations, ensure the portion of the panel that mates to the GSB 15 is electrically conductive to ensure proper grounding. 3.2.1 Unit Replacement Make sure that power is removed before removing the GSB 15. 190-00303-A3 GSB 15 Installation Manual Rev. 3...

  • Page 18: Decorative Cover Installation

    When installing the Decorative Cover, apply an evenly distributed minimum force of 7 lbf (3 kgf or 30 N). • The adhesive will fully cure within 72 hours (90% strength after 24 hours). Figure 3-1 GSB 15 Decorative Cover Installation 190-00303-A3 GSB 15 Installation Manual Rev. 3...

  • Page 19: Section 4 Post Installation Configuration & Checkout

    After accomplishing a continuity check, perform power and ground checks to verify proper power distribution to the GSB 15. Any faults or discrepancies must be corrected at this time. The GSB 15 can be installed after completion of the continuity and power checks.

  • Page 20: Section 5 Continued Airworthiness

    5 CONTINUED AIRWORTHINESS Maintenance of the GSB 15 is “on condition” only. 190-00303-A3 GSB 15 Installation Manual Rev. 3 Page 5-1...

  • Page 21: Section 6 Connector Pinout Information

    6.1 Pin Function List 6.1.1 P201/202 Connector NOTE P201 is the designation for the rear connector for GSB 15 part number 011-04937-00. NOTE P202 is the designation for the side connector for GSB 15 part number 011-04937-01. P201, GSB 15 Rear (011-04937-00) Unit P202, GSB 15 Side (011-04937-01) Unit Figure 6-1.

  • Page 22: Appendix A Outline And Installation Drawings

    BACK OF MOUNTING SURFACE BACK OF MOUNTING SUFACE NOTES: DIMENSIONS: INCHES[mm]. METRIC VALUES ARE FOR REFERENCE ONLY. DIMENSIONS ARE NOMINAL AND TOLERANCES ARE NOT IMPLIED UNLESS SPECIFICALLY STATED. Figure A-1 GSB 15 Outline Drawing 190-00303-A3 GSB 15 Installation Manual Rev 3 Page A-1...
  • Page 23 #4-40 x .25[6.4], PHP 211-60304-08 2 PLACES Included in Connector Kit Panel Thickness Recommended Screw Length (011-05044-00)? .050-.125[1.27-3.18] .250[6.35] Yes, Qty. 2 Figure A-2 GSB 15 Installation Drawing (011-05044-00 Mounting Kit) 190-00303-A3 GSB 15 Installation Manual Rev 3 Page A-2...
  • Page 24 .005 25.40 0.13 .129±.003 3.26±0.08 .438±.005 11.11±0.13 45° 0 0.00 .438±.005 11.11±0.13 .129±.003 3.26±0.08 THRU .225 5.72 X 100° Figure A-3 GSB 15 Panel Cutout Drawing (Pan Head and Flat Head Screws) 190-00303-A3 GSB 15 Installation Manual Rev 3 Page A-3...
  • Page 25 Recommended Screw Length .000-.050[0.00-1.27] .188[4.76] Minimum .000-.050[0.00-1.27] .188[4.76] Minimum .050-.125[1.27-3.18] .250[6.35] Minimum .050-.125[1.27-3.18] .250[6.35] Minimum .125-.188[3.18-4.76] .313[7.95] Minimum .125-.188[3.18-4.76] .313[7.95] Minimum Figure A-4 GSB 15 Assembly Drawing (011-05043-00 and -01 Mounting Kits) 190-00303-A3 GSB 15 Installation Manual Rev 3 Page A-4...
  • Page 26 .005 0.13 1.856 47.15 .150±.003 3.80±0.08 45° 45° 1.313 33.34 1.750 44.45 2.625 66.68 3.500 88.90 Figure A-5 GSB 15 Panel Cutout Drawing w/Pan Head Screws (011-05043-00 and -01 Mounting Kits) 190-00303-A3 GSB 15 Installation Manual Rev 3 Page A-5...
  • Page 27 .150 3.80 THRU ALL .279 7.09 X 100° .150 3.80 THRU ALL .279 7.09 X 100° Figure A-6 GSB 15 Panel Cutout Drawing w/Flat Head Screws (011-05043-00 and -01 Mounting Kits) 190-00303-A3 GSB 15 Installation Manual Rev 3 Page A-6...
  • Page 28 CHROMATE CONVERSION COATING 011-05291-00 ("UNFINISHED") 011-05291-01 BLACK POWDER COAT COSMETIC PIECE WILL MOUNT FLUSH WITH UNIT ON A .08[2.0] THICK PANEL. Figure A-7 GSB 15 w/Decorative Cover Assembly and Panel Cutout Drawing 190-00303-A3 GSB 15 Installation Manual Rev 3 Page A-7...
  • Page 29 PRINTABLE CUTOUT TEMPLATE FOR GSB 15 INSTALLATION (SCALE 1:1) NEW INSTALLATIONS WITH 2 NEW INSTALLATIONS WITH 4 EXISTING INSTALLATIONS MOUNTING SCREWS MOUNTING SCREWS ADDING A DECORATIVE COVER NEW INSTALLATIONS WITH DECORATIVE COVER CUT AWAY HATCHED AREA IMPORTANT! Ensure the Page Scaling setting is set to "NONE"...

  • Page 30: Appendix B Interconnect Drawings

    3. CONNECT TO CAT 5 SHIELD USING M83519 SOLDER SLEEVE (OR EQUIVALENT) 1” [2.54 cm] MAX FROM CONNECTOR. SOLDER SLEEVES WITH PRE-INSTALLED LEADS ARE ACCEPTABLE. 4. TERMINATE CAT 5 SHIELD TO THE BACK OF THE GSB 15 USING THE RING TERMINAL AND RING TERMINAL SCREW (P/N 235-00117-00 AND 211-60234-04).
