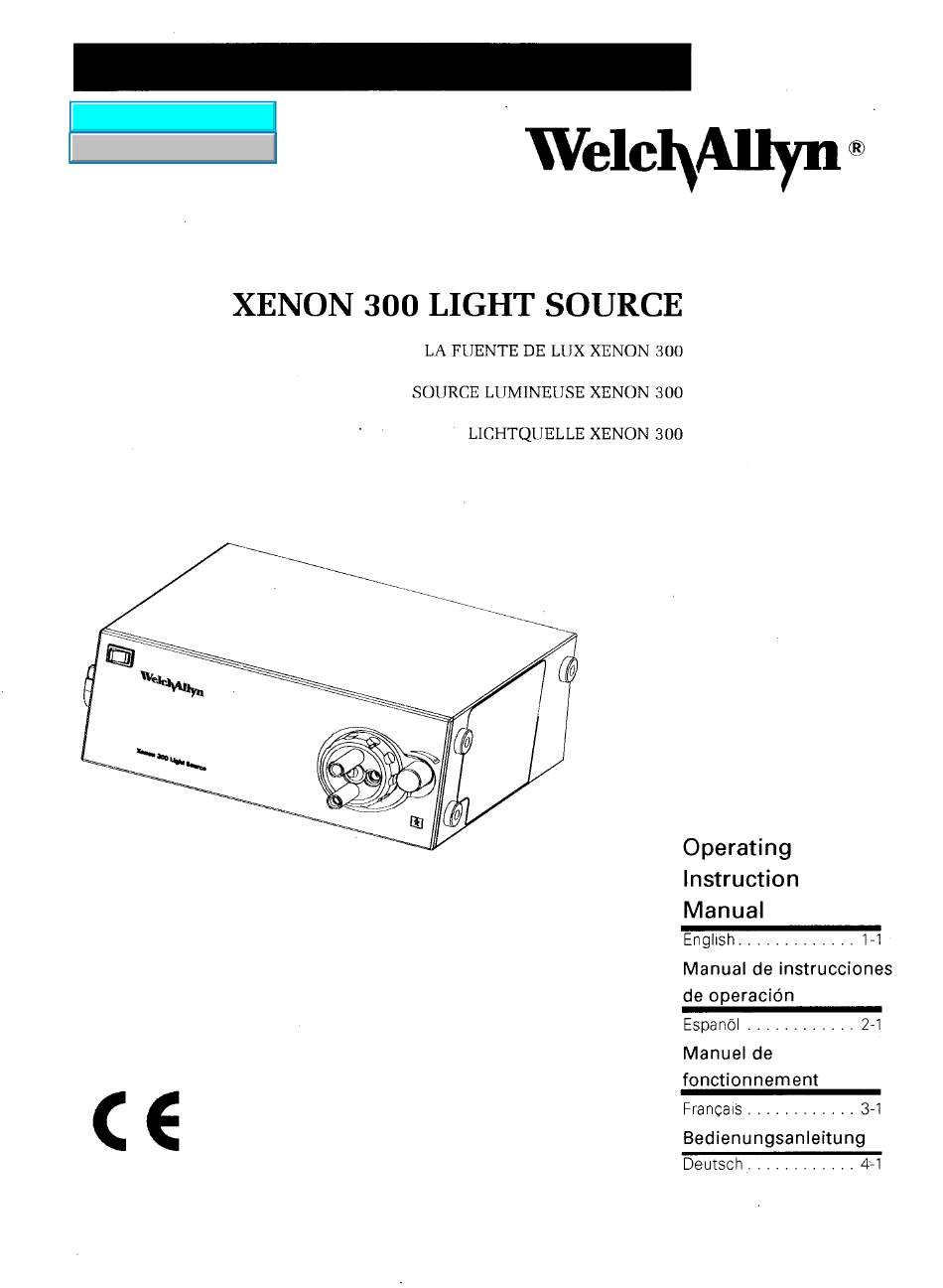

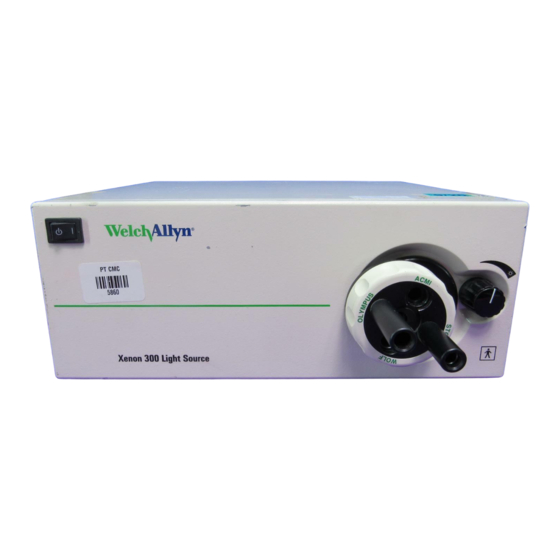

- Page 1 Light Source Menu Service Manual...
- Page 2 Thank you for purchasing the Welch Allyn Xenon 300 Light Source. By following the use and care guide- lines given in this booklet, you will be rewarded with years of dependable, trouble-free service from your new light source. WARNING: All users of this product should be thoroughly trained in the medical procedures appropriate to the equipment.
-
Page 3: Table Of Contents
Table of Contents Conventions ........... Warnings and Precautions: ........ - Page 4 WARNING: Extremely high energy light. Some fiber optic bundles will not with- stand the light intensity of this light source. USE ONLY WELCH ALLYN FIBER OPTIC BUNDLE or CUDA PRODUCTS, INC. (904-737-7611) CLAD ROD (CR) MODEL FIBER OPTIC BUNDLES.
-
Page 5: Conventions
THE COVER OF THE LIGHT SOURCE SHOULD NEVER BE REMOVED. ELECTRICAL SHOCK HAZARD DUE TO HIGH INTERNAL VOLTAGE. THERE ARE NO USER SERVICEABLE PARTS INSIDE THIS LIGHT SOURCE EXCEPT FOR THE LAMP AND FUSE, WHICH ARE ACCESSIBLE THROUGH THE BOTTOM AND SIDE DOOR PANELS. Refer all service to Welch Allyn. -
Page 6: Indications
TION AVAILABLE. Since the light source uses a custom lamp, always have a spare lamp available for replacement. Use only Welch Allyn replacement lamp number 04980. USE CAUTION BECAUSE LAMP MAY BE HOT. Allow the lamp to cool before replacing. -
Page 8: Set-Up And Operation
Cleaning Instructions NOTE: Welch Allyn Xenon 300 Light Source should not be sterilized or immersed. Prior to cleaning, turn power off and disconnect the power cord from both the wall outlet and the Welch Allyn Xenon 300 Light Source. The external surfaces may be cleaned by wiping with a cloth dampened with mild soap and water or by using the following cleaning/disinfecting solutions. -
Page 9: Lamp Care And Replacement
Lamp Care and Replacement The lamp in the Welch Allyn Xenon 300 Light Source will typically provide more than 500 hours of service. The symptoms indicating the need for replacement are: Low light output After the unit is turned on, there are four or more ignition attempts without lamp going into opera- tion. - Page 10 Fuse Replacement If light source fails to operate after power is turned on, turn unit off prior to checking the fuses. Unplug the light source. Remove fuse covers by using flat blade screw driver and check for blown fuse. Replace the blown fuses with the same size and rating. 5.
-
Page 11: Specifications
The CE mark on this product indicates it has been tested to and conforms with the provisions noted within the 93/ 42/EEC Medical Device Directive. Declarations of Conformity are held by Welch Allyn’s European Representative. European Regulatory Manager Welch Allyn LTD. -
Page 12: Basic Troubleshooting
Clean with isopropyl alcohol and allow Light transmission rod is damaged or con- to dry. Use care not to chip edges. taminated. Contact Welch Allyn for repair. Replace lamp if four or more ignition Several ignition Three or fewer ignition attempts are normal. -
Page 13: Warranty
The Welch Allyn Xenon 300 Light Source is guaranteed by Welch Allyn against all manufacturing defects. Welch A l l y n will repair or replace, free of charge, any parts of its own manufacture that prove to be defective for reasons other than misuse, neglect, damage in shipment, or normal wear.
