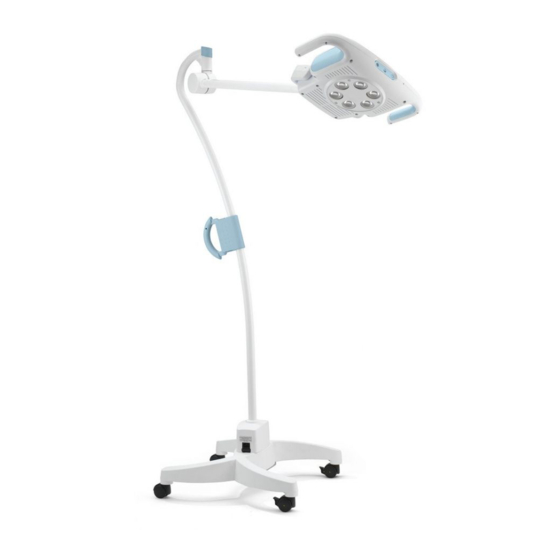

GS 900 on Mobile Stand Assembly Instructions
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the GS 900 and is the answer not in the manual?

Questions and answers

Jose Hernandez
June 20, 2025

Where I can purchase a replacement for the power supply ?

0

Related Manuals for Welch Allyn GS 900

Summary of Contents for Welch Allyn GS 900

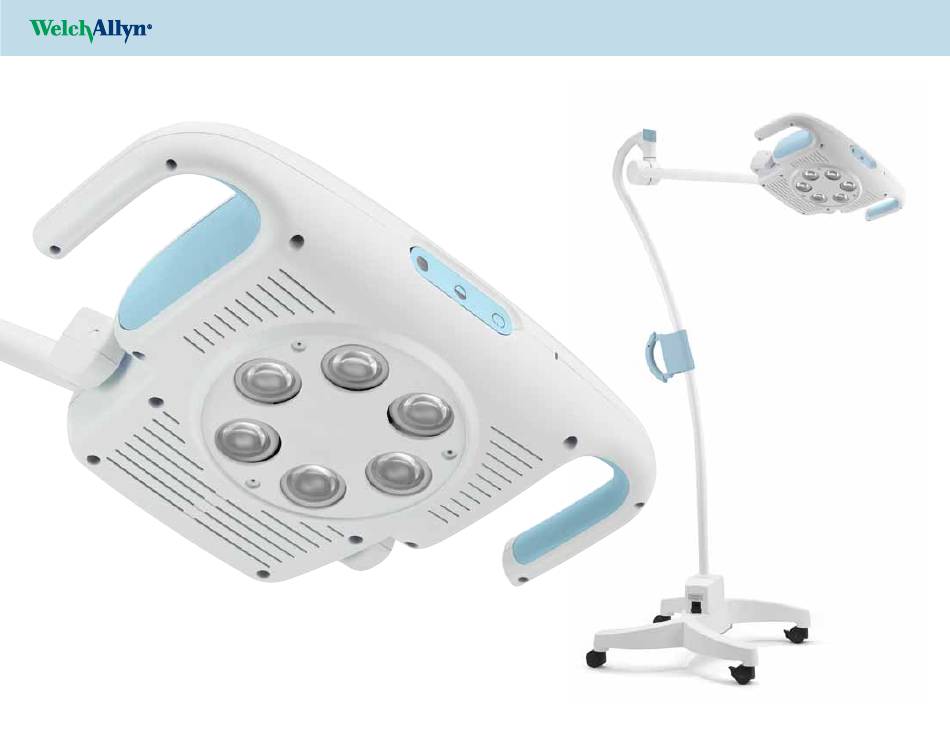

  • Page 1 GS 900 on Mobile Stand Assembly Instructions...
  • Page 2 GS 900 on Mobile Stand Assembly Instructions Ships in 3 boxes...
  • Page 3 GS 900 on Mobile Stand Assembly Instructions (2) wheels without brakes (2) wheels with brakes...
  • Page 4 GS 900 on Mobile Stand Assembly Instructions (2) wheels without brakes (2) wheels with brakes go through the ring cable...
  • Page 5 GS 900 on Mobile Stand Assembly Instructions Place wheels with brakes through ring cable and insert completely...
  • Page 6 GS 900 on Mobile Stand Assembly Instructions Insert two wheels without brakes completely...
  • Page 7 GS 900 on Mobile Stand Assembly Instructions...
  • Page 8 GS 900 on Mobile Stand Assembly Instructions Parts included with Mobile Stand...
  • Page 9 GS 900 on Mobile Stand Assembly Instructions Tools not included...
  • Page 10 GS 900 on Mobile Stand Assembly Instructions Insert two screws into pole...
  • Page 11 GS 900 on Mobile Stand Assembly Instructions...
  • Page 12 GS 900 on Mobile Stand Assembly Instructions Insert the tripod tube so that the recess in the tube is seated in the nose of the tripod base and cannot be rotated any more...
  • Page 13 GS 900 on Mobile Stand Assembly Instructions Assemble the winged screw with the spring washer and tighten...
  • Page 14 GS 900 on Mobile Stand Assembly Instructions...
  • Page 15 GS 900 on Mobile Stand Assembly Instructions Remove and discard grey protective cover...
  • Page 16 GS 900 on Mobile Stand Assembly Instructions Unscrew the Phillips/plus-slotted screw, pull the cover off, pull cord through the top opening and insert the spring arm...
  • Page 17 GS 900 on Mobile Stand Assembly Instructions Place the disk over spring arm...
  • Page 18 GS 900 on Mobile Stand Assembly Instructions Place retaining ring over spring arm and secure into the pin groove...
  • Page 19 GS 900 on Mobile Stand Assembly Instructions Make the electrical connection, tuck wires back inside, replace cover and tighten Phillips/plus screw...
  • Page 20 GS 900 on Mobile Stand Assembly Instructions Remove and discard grey protective cover...
  • Page 21 GS 900 on Mobile Stand Assembly Instructions Loosen the slotted/minus screw Loosen the Phillips/plus-slotted screw...
  • Page 22 GS 900 on Mobile Stand Assembly Instructions Luminaire...
  • Page 23 GS 900 on Mobile Stand Assembly Instructions Insert luminaire into the spring arm...
  • Page 24 GS 900 on Mobile Stand Assembly Instructions Place securing segment completely into slot...
  • Page 25 GS 900 on Mobile Stand Assembly Instructions Tighten the Phillips/plus-slotted screw, turn plastic sleeve 180° and tighten the slotted/minus screw...
  • Page 26 GS 900 on Mobile Stand Assembly Instructions Plug in electrical connection to the unit and the wall...
  • Page 27 GS 900 on Mobile Stand Assembly Instructions Turn on light © 2010 MC7635...
