Summary of Contents for Welch Allyn Exam Light III
- Page 1 Service Manual Exam Light III Examination Light Welch Allyn Medical Division 4341 State Street Road P.O. Box 220 Skaneateles Falls, NY 13153-0220 488061 Rev. B Copyright 2002...
- Page 3 D*: See SAP DIR for change number, approver name, and date of approval. Drawings and/or illustrations and/or part numbers contained in this document are for refer- ence purposes only. For current revisions call the Welch Allyn Customer Service phone number listed in Section 1 page 3.
-
Page 4: Table Of Contents
Rectifier Board Removal....................5 Light Pipe Connector Assembly Dissassembly..............6 Focusing Sleeve Assembly ....................8 Appendix A: Repair Part Numbers Appendix B: Expoded View Drawings/Photos Appendix C: Electrical Schematic ii Welch Allyn Exam Light III Service Manual 488061 Rev. B... - Page 5 Service Manual 488061 Rev. B Welch Allyn Exam Light III iii...
- Page 6 Welch Allyn Exam Light III Service Manual 488061 Rev. B...
-
Page 7: Section 1: General Information

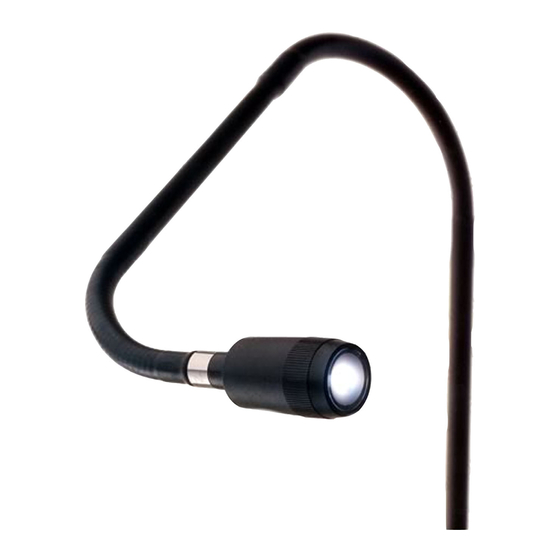

Welch Allyn’s Exam Light III takes flexible illumination to a new level. It mounts easily to fit on a wall, stand, or on an examination table. The Exam Light III delivers bright, white, fiber optic illumination for better visibility and more accurate diagnosis. -
Page 8: Cautions And Warnings
Intense Light: Lamp is extremely bright. Do not stare at the lamp when in use. May be harmful to eyes. Caution: Remove power cord from electrical outlet and allow lamp to cool 10 minutes before replacing with a Welch Allyn lamp. Danger: Electrical shock hazard. Refer servicing to qualified service per- sonnel. -
Page 9: Help Information
65-291-5780 fax: (011) tel: (011) 86-21-63279631 fax: (011) 86-21-63279632 Welch Allyn Japan K.K. Bon Marusan 8F, 3-5-1 Kanda Jinbo-Cho, Chiyoda-Ku Tokyo 101-0051 Japan tel: (011) 813-5212-7391 fax: (011) 813-3261-7372 Service Manual 488061 Rev. B Welch Allyn Exam Light III 3... - Page 10 Blank Page...
-
Page 11: Incoming Inspection
Service Section 2 Incoming Inspection NOTE: Use the following guidelines when unpacking the Exam Light III from its shipping carton. 1. Before opening the Exam Light shipping carton, check for damage. 2. If damage is apparent, stop unpacking the carton and contact the shipping company for further instructions. - Page 12 Blank Page...
-
Page 13: Initial Screening
A. Pull fuses out and check fuses with ohm meter. B. Attach a known good power cord. C. Replace the green rocker switch. D. Check the AC connector for damage and cracks. Service Manual 488061 Rev. B Welch Allyn Exam Light III 1... - Page 14 2. Green rocker switch light is illuminated but the lamp does not light. A. Check for proper lamp. It should be 12 volt 35 watt, Welch Allyn #04200. NOTE: If the lamp is replaced, burn the unit in for at least one hour to confirm there are not other issues.
-
Page 15: Section 4: Disassembly And Repair
Rotate the clip toward the base of the unit it pops out. NOTE: Discard the clip. It is used only for shipping. Service Manual 488061 Rev. B Welch Allyn Exam Light III 1... -
Page 16: Lamp Removal
Grasp the lamp connector and pull the lamp straight out of its holder. 5. Lamp Holder Removal Remove the two nuts. 6. Lamp Baffle Removal Remove the one phillips head screw. 2 Welch Allyn Exam Light III Service Manual 488061 Rev. B... -
Page 17: Light Pipe Connector Assembly Removal
The photo shows the wiring as wired for domestic 120V. See the wiring diagram in Appendix C for the wiring in your local area. Brown Black Service Manual 488061 Rev. B Welch Allyn Exam Light III 3... -
Page 18: Illuminated On/Off Switch Removal
Use a 3/16 driver on the hex nut and a flat bed screw driver on the screw and remove all four fasteners. Disconnect the fan connector from the PCB. 4 Welch Allyn Exam Light III Service Manual 488061 Rev. B... -
Page 19: Rectifier Board Removal
C. Notice wire ties on brown wires. Note : Notice the wiring orientation to G G reen the IEC connector and wire colors Blue Brown 11. Rectifier board removal Remove all four phillips head screws. Service Manual 488061 Rev. B Welch Allyn Exam Light III 5... - Page 20 Section 4 Disassembly and Repair 12. Light Pipe Connector Assembly Disassembly. A. Remove the retaining ring. B. Remove the square heat filter. C. Remove the heat filter gasket. 6 Welch Allyn Exam Light III Service Manual 488061 Rev. B...
- Page 21 D. Remove the two hex set screws that secure the insulator to the retaining collar. E. Pull the retaining collar from the insulator. F. Remove the brake from the inside of the insulator. Service Manual 488061 Rev. B Welch Allyn Exam Light III 7...
-
Page 22: Focusing Sleeve Assembly
C. Insert the end window into the main body. NOTE: There are three very small tabs on the lip of the end window. Line those three tabs with the three long slots of the main body. 8 Welch Allyn Exam Light III Service Manual 488061 Rev. B... - Page 23 Observe that each cam sleeve has a slot N N ote the slot at the rear of the cam sleeve. The slot must face toward the rear of the assembly. Service Manual 488061 Rev. B Welch Allyn Exam Light III 9...
- Page 24 F. Slide the front body over the assembly. You may have to rotate the front body. The front body will snap in place. 10 Welch Allyn Exam Light III Service Manual 488061 Rev. B...
- Page 25 SET SCREW, 6-32 X .125 CUP 488001-502 PIPE CONNECTOR ASSEMBLY 236707-1 ILLUMINATED SWITCH-DOMESTIC 125VAC 488118-501 REAR HOUSING, ASSY COMPLETE 747187 #8-32 HEX NUT-CAD PLTD 483412 #8 EXTERNAL LOCKWASHER 106137-2 NUT,8-32 EXTLOCK Service Manual 488061 Rev. B Welch Allyn Exam Light III 1...
- Page 26 HALOGEN LAMP-2 PIN 488011-2 FRONT COVER W/LOGO 488420-502 MOUNTING HARDWARE KIT 482200-501 FLEXIBLE FIBER OPTIC CABLE ASSY 106113-25 CUT PT.SET SCR,8-32X.25 STEEL 488082 Molex Connector 714160 Operation Instruction 488061 Service Manual 2 Welch Allyn Exam Light III Service Manual 488061 Rev. B...
- Page 27 Exploded View Drawings/Photos Appendix B Service Manual 488061 Rev. B Welch Allyn Exam Light III 1...
-
Page 28: Appendix B: Expoded View Drawings/Photos
Appendix B Exploded View Drawings/Photos Transformer Insulator 2 Welch Allyn Exam Light III Service Manual 488061 Rev. B... - Page 29 Exploded View Drawings/Photos Appendix B Service Manual 488061 Rev. B Welch Allyn Exam Light III 3...
- Page 30 Appendix B Exploded View Drawings/Photos 4 Welch Allyn Exam Light III Service Manual 488061 Rev. B...
- Page 31 Exploded View Drawings/Photos Appendix B Service Manual 488061 Rev. B Welch Allyn Exam Light III 5...
- Page 32 Appendix B Exploded View Drawings/Photos 6 Welch Allyn Exam Light III Service Manual 488061 Rev. B...
- Page 33 Exploded View Drawings/Photos Appendix B Service Manual 488061 Rev. B Welch Allyn Exam Light III 7...
- Page 34 Appendix B Exploded View Drawings/Photos Neonate Lite Pipe For the 48780 8 Welch Allyn Exam Light III Service Manual 488061 Rev. B...
- Page 35 Exploded View Drawings/Photos Appendix B Service Manual 488061 Rev. B Welch Allyn Exam Light III 9...
- Page 36 Appendix B Exploded View Drawings/Photos Set Screw 10 Welch Allyn Exam Light III Service Manual 488061 Rev. B...
- Page 37 Exploded View Drawings/Photos Appendix B Service Manual 488061 Rev. B Welch Allyn Exam Light III 11...
- Page 38 Appendix B Exploded View Drawings/Photos 12 Welch Allyn Exam Light III Service Manual 488061 Rev. B...
-
Page 39: Appendix C: Electrical Schematic
AC LINE NEUTRAL GRN/YEL 12VAC DPST CHASSIS GRAY TRANSFORMER PRIMARY BLU - COMMON WHT - 100V TAP BLK - 120V TAP BRN - 230V TAP GRAY - 240V TAP Service Manual 488061 Rev. B Welch Allyn Exam Light III 1... - Page 40 Blank Page...
