  • Page 1 XENON 300 LIGHT SOURCE...
  • Page 2 Thank you for purchasing the Welch Allyn Xenon 300 Light Source. By following the use and care guide- lines given in this booklet, you will be rewarded with years of dependable, trouble-free service from your new light source. WARNING: All users of this product should be thoroughly trained in the medical procedures appropriate to the equipment.

  • Page 3: Table Of Contents

    Contents 1 - Conventions..........1 Symbols .
  • Page 4 Contents Welch Allyn Xenon 300 Light Source...
  • Page 5 WARNING: Extremely high energy light. Some fiber optic bundles will not withstand the light intensity of this light source. USE ONLY WELCH ALLYN FIBER OPTIC BUNDLE or SUNOPTICS TECHNOLOGIES (formerly CUDA FiberOptics - 904-737-7611) CLAD ROD (CR) MODEL FIBER OPTIC BUNDLES.

  • Page 7: Conventions

    Conventions Symbols Power “ON” Protective Earth Ground Type BF CAUTION; consult Directions For Use Power “STANDBY” Alternating Current Warning...

  • Page 8: Warnings

    Electrical shock hazard due to high internal voltage. there are no user serviceable parts inside this light source except for the lamp and fuse, which are accessible through the bottom and side door panels. refer all service to Welch Allyn. WARNING Replace fuses as marked.

  • Page 9: Cautions

    Caution Since the light source uses a custom lamp, always have a spare lamp available for replacement. Use only Welch Allyn replacement lamp number 04980. Use caution because lamp may be hot. Allow the lamp to cool before replacing.

  • Page 10: Indications

    Chapter 1 Conventions Welch Allyn Xenon 300 Light Source Indications For use with the Welch Allyn Headlight System Contraindications • Neonate transillumination • Ophthalmic procedures Any procedure where close or direct exposure to high intensity light could cause tissue injury or damage (see “Warnings”...

  • Page 11: Components

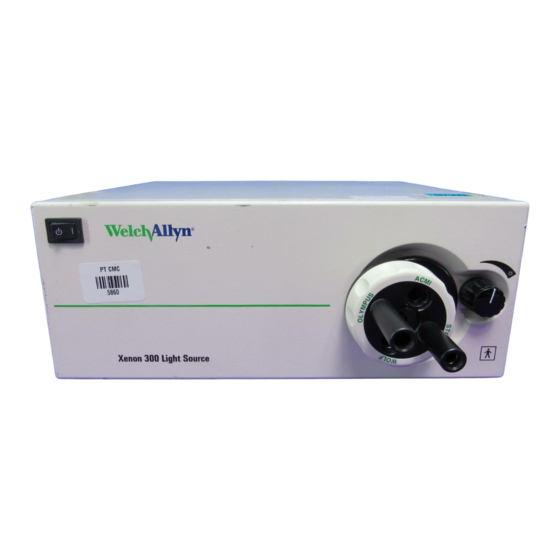

    Components System Description The Welch Allyn 49801 light source is intended to be used as a 300 watt light source to supply illumination for surgical fiber optic headlights. Fiber Optic Bundle Turret - accepts fiber optic bundles for Cooling Fans - provides ACMI, Wolf, Olympus and Storz.

  • Page 12: Set-Up And Operation

    Chapter 2 Components Welch Allyn Acuity LT Hardwired Set-Up and Operation Unpack unit and visually inspect it for damage that may have occurred during shipment. 2. Plug power cord into light source power module and the remaining end into a hospital grade receptacle.

  • Page 13: Maintenance

    Maintenance Cleaning Instructions Note Do not sterilize or immerse the Welch Allyn Xenon 300 Light Source. Turn power off and disconnect the power cord from both the wall outlet and the Welch Allyn Xenon 300 Light Source. 2. Wipe the external surfaces clean with a cloth dampened with mild soap and water or use one of the following cleaning/disinfecting solutions.

  • Page 14: Lamp Care And Replacement

    Welch Allyn Xenon 300 Light Source Lamp Care and Replacement The lamp in the Welch Allyn Xenon 300 Light Source will typically provide more than 500 hours of service. The symptoms indicating the need for replacement are: TO REMOVE LAMP PULL OUT.

  • Page 15: Fuse Replacement

    3. Use a flat blade screwdriver to remove fuse covers and check for blown fuse. 4. Replace the blown fuses with the same size and rating. 5. Replace fuse covers. Ordering Information Part Information 49800 Welch Allyn Xenon 300 Light Source 100-120/200-240 VAC, 50-60 Hz, 5.5A 50-60 Hz USA Plug type Replacement Parts 04980-U...

  • Page 16: Basic Troubleshooting

    Chapter 3 Maintenance Welch Allyn Xenon 300 Light Source Basic Troubleshooting Symptom Possible Problem Remedy Power does Power plug is not plugged into the receptacle. Plug in power cord. not come on. Power switch is off. Turn on power switch.

  • Page 17: Technical Information

    Technical Information Specifications Electrical Lamp Operating Power: 300 watts DC, nominal Lamp Current: 21 Amps DC, nominal Input Voltage: 100-120/200-240 VAC, 50/60 Hz, 5.5A Lamp: Cermax® Xenon Lamp Lamp Life: 500 hours Dimensions Size: 12.75” (324mm)W x 4.75” (121mm) H x 12.5” (318mm) D Weight: 12.5 lbs (5.7kg) Fiber Optic Bundle Interface...
  • Page 18 The CE mark on this product indicates it has been tested to and conforms CAN/CSA C22.2 with the provisions noted within the 93/42/EEC Medical Device Directive. No601.1-M90 Declarations of Conformity are held by Welch Allyn’s European IEC 601-1 Representative. IEC 601-1-2 European Regulatory Manager Welch Allyn LTD.

  • Page 19: Warranty And Service

    Welch Allyn Service Center should repair products out of warranty. Technical Assistance If you have an equipment problem that you cannot resolve, you may call the Welch Allyn Service Center nearest you for assistance. Call the service center on normal business days at the phone numbers listed on page 14.
  • Page 20 Chapter 5 Warranty and Service Welch Allyn Xenon 300 Light Source Welch Allyn Service Centers For Service or Repair USA Customers Canada Customers Welch Allyn, Inc. Welch Allyn Canada Limited 4341 State Street Road Technical Service Centers Skaneateles Falls, NY 13153 USA 160 Matheson Blvd., East...
  • Page 22 Welch Allyn, Inc. 4341 State Road P.O. Box 220 Skaneateles Falls, NY 13153-0220 Tel: (315) 685-4560 Printed in U.S.A. Part No. 498047-1 Rev. D...
