Summary of Contents for Alpha Fan HANI-5B/36 LED

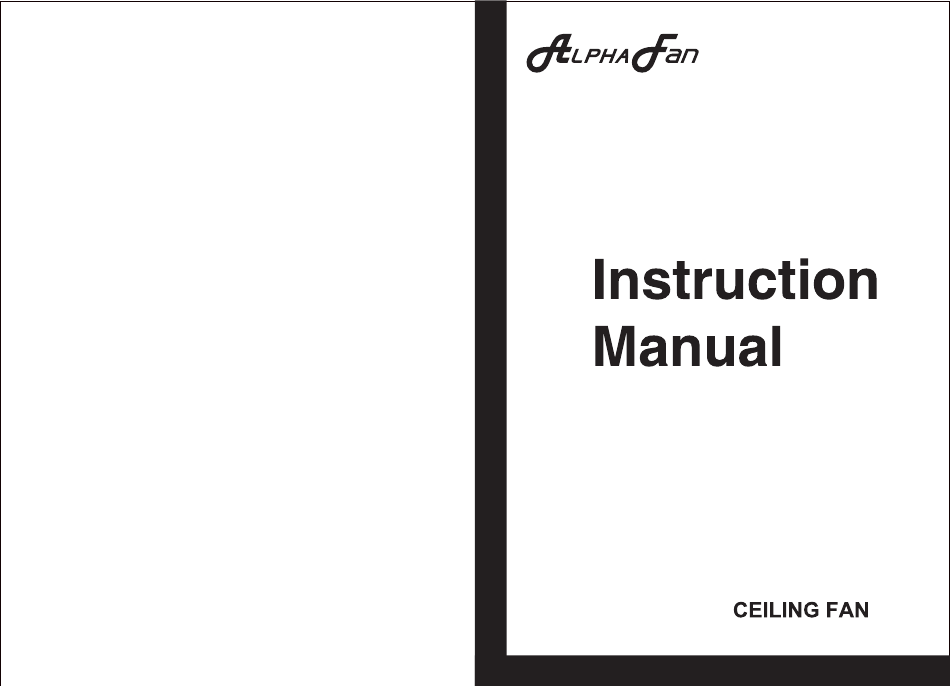

- Page 1 Model : HANI-5B/36 LED Version: 2022 V1...
- Page 2 1 - 2 4 - 6 Transmitter Learning Process & Function 7 - 8 Power Supply Connection & Circuit Diagram 9 - 10 Warning Installation and maintenance work shall only be performed by qualified persons, familiar with local code and regulation, and experienced with this type of appliance. All field wiring must be installed in accordance with the national wiring regulation.
-
Page 3: Safety Precaution
SAFETY PRECAUTION CAUTION Please take note of the following important points when installing. The fixing means for attachment to the ceiling such as hooks or other devices shall be fixed with a sufficient strength to withstand 4 times the weight of the ceiling fan. The mounting of the suspension system shall be performed by the manufacturer, its service agent or suitably qualified persons. - Page 4 White Yellow Yellow Grey Grey Green/Yellow(E) *For HANI-5B/36 LED only Step 6 Install the Blades on Motor with Screw. Step 3 a. Remove the Bolt, Clevis Pin, Nut, Washer and Rubber Pulley from the Fan Rod. b. Place the Rubber Pulley onto the ceiling hook and fix back the Bolt, Clevis Pin, Nut and Washer.
- Page 5 TRANSMITTER LEARNING PROCESS Step 7 IMPORTANT : DO NOT CONNECT THIS REMOTE CONTROL CEILING FAN TO DIMMER a. Route the LED Wire from Motor throught the Light Kit SWITCH OR REGULATOR. b. Install the LED Light Kit on Motor with Light Kit Screw. c.
- Page 6 Power Turn off fan Fan Speed 1 - Lowest speed 8 - Highest speed Natural Wind Fan speed changes within its range creating gentle Forward/Reverse Regulator Dimmer Switch sea-breeze effect Anti-clockwise or clockwise rotation Light Timer On On/Off & LED light 1h - Fan turns on after 1 hour colour selection - 3h - Fan turns on after 3 hours...
-
Page 7: Maintenance
Model HANI-5B/36 LED IMPORTANT : DO NOT CONNECT THIS REMOTE CONTROL CEILING FAN TO DIMMER No. of Blades SWITCH OR REGULATOR. Fan Width 914mm (36”) Motor RPM 90 - 220 Voltage 220-240V~ 50Hz Motor Wattage 5W - 35W LED Wattage... - Page 8 If you need any technical assistance or faulty report, please contact our customer service centre at : Alpha Home Appliances Sdn. Bhd. (390258-H) Head Office : 6, Jalan Sungai Kayu Ara 32/37, Berjaya Park, Section 32, 40460 Shah Alam, Selangor. : 03-5740 6666 : 03-5740 8220 Website...
