Related Manuals for Alpha Fan Excel 3B/56

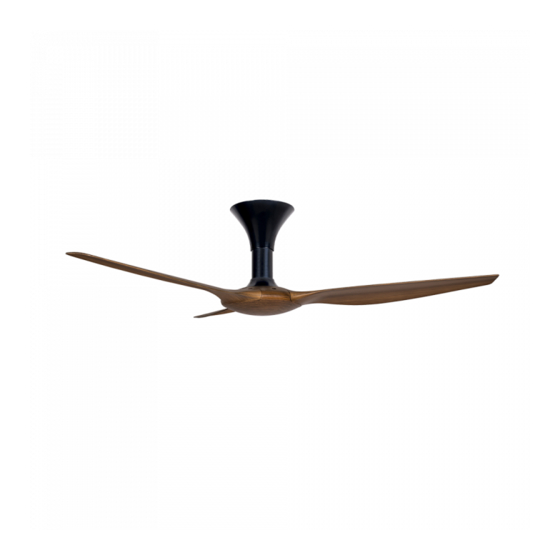

Summary of Contents for Alpha Fan Excel 3B/56

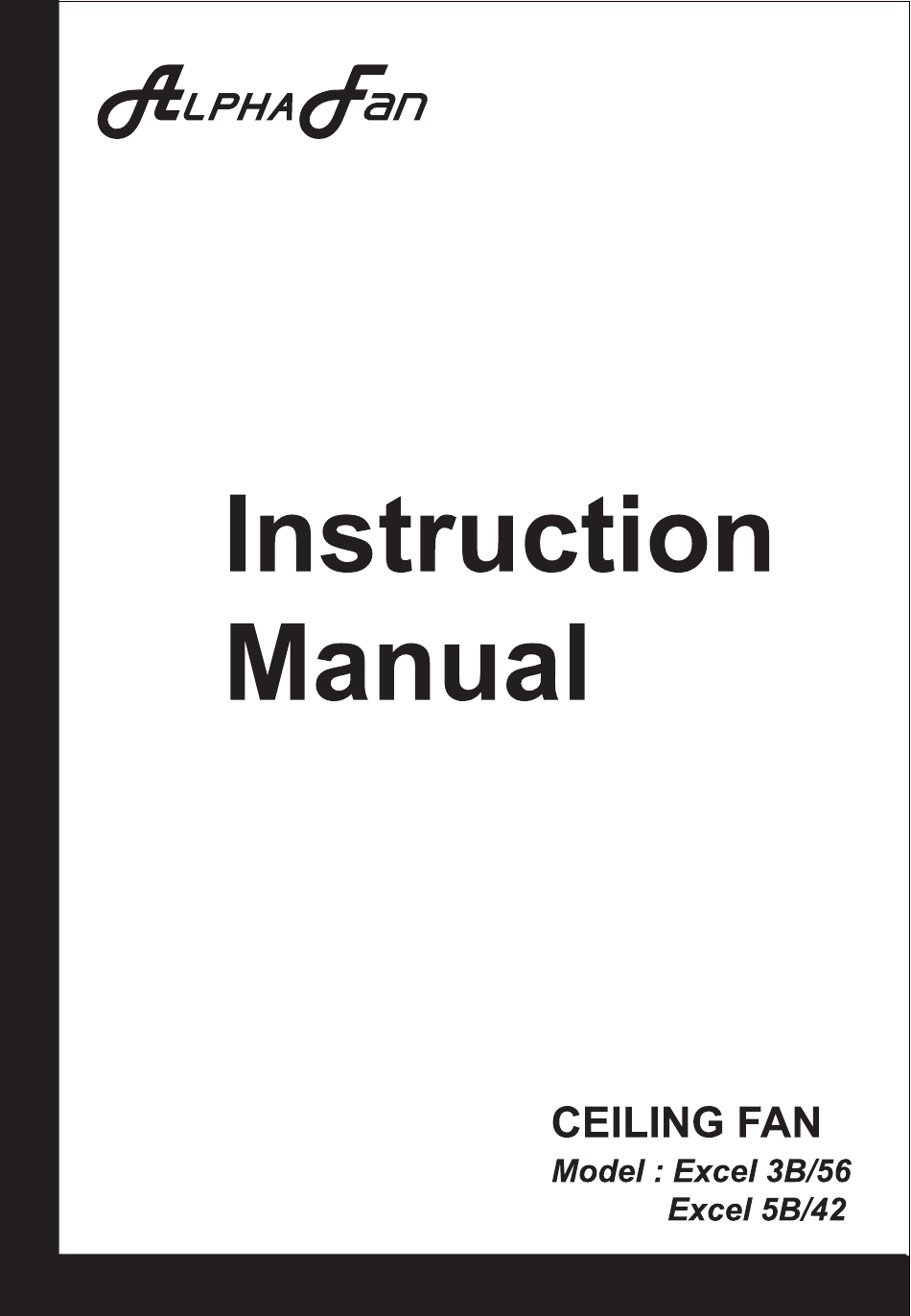

- Page 1 Version: 2016 V1 (SIN)
- Page 2 TABLE OF CONTENT Item Page No. 1. Safety Precaution ................. 1 - 2 2. Parts & Accessories ................3 3. Installation Instruction ................4 - 6 4. Circuit Diagram ..................7 5. Power Supply Connection ..............7 6. Transmitter Programming ..............8 7.
-
Page 3: Safety Precaution
SAFETY PRECAUTION Disconnect from the main power supply before servicing the unit. DO NOT pull out the power cord when the power is ON. This may cause serious electrical shocks which may result in fire hazards. STOP using the ceiling fan when any abnormality or failure occurs. Immediately stop using the ceiling fan and switch off the power supply. - Page 4 Blade Screw x 10 Wire Connector x 3 Blade Screw x 16 Wire Connector x 3 Washer x 10 Expansion Bolt with Nut x 3 Washer x 16 Expansion Bolt with Nut x 3 Spacer x 3 Expansion Bolt with Hook x 1 Spacer x 5 Expansion Bolt with Hook x 1 Wood Screw x 4...
-
Page 6: Concrete Ceiling
Install the bracket onto concrete ceiling with the expansion with nuts and expansion bolt with hook. Hook the safety wire from fan motor onto hook (Fig. 1). IMPORTANT : SCREW & NUTS MUST BE TIGHTENED TILL SNUG. Concrete Ceiling Expansion Bolt with Nut Fig. - Page 7 Insert the receiver into the canopy and store all wires neatly.
- Page 9 Learn Button Press and hold for 3 sec...
- Page 10 The transmitter & receiver is incorporated with last memory function. This function stores your last setting in memory and the next time you turn on the fan, by pressing , fan will operate as the last setting.
- Page 12 Motor RPM 70 - 175 87 - 220 Voltage 240V~ 50Hz 240V~ 50Hz Wattage (Fan only) 5W - 47W 5.2W - 47W 203mm 305mm (8”) More than 1m (12”) Excel 3B/56 - 1422mm (4’ 8”) Excel 5B/42 - 1067mm (3’ 6”)
- Page 13 If you need any technical assistance or faulty report, please contact our customer service centre at : Alpha Sales & Service Pte. Ltd. (200709461 R) 8, Ubi Road 2, # 01-07 & 01-08, Zervex, Singapore 408538. : +65 6841 0111 : +65 6747 0030 Website : www.alphasingapore.com...
