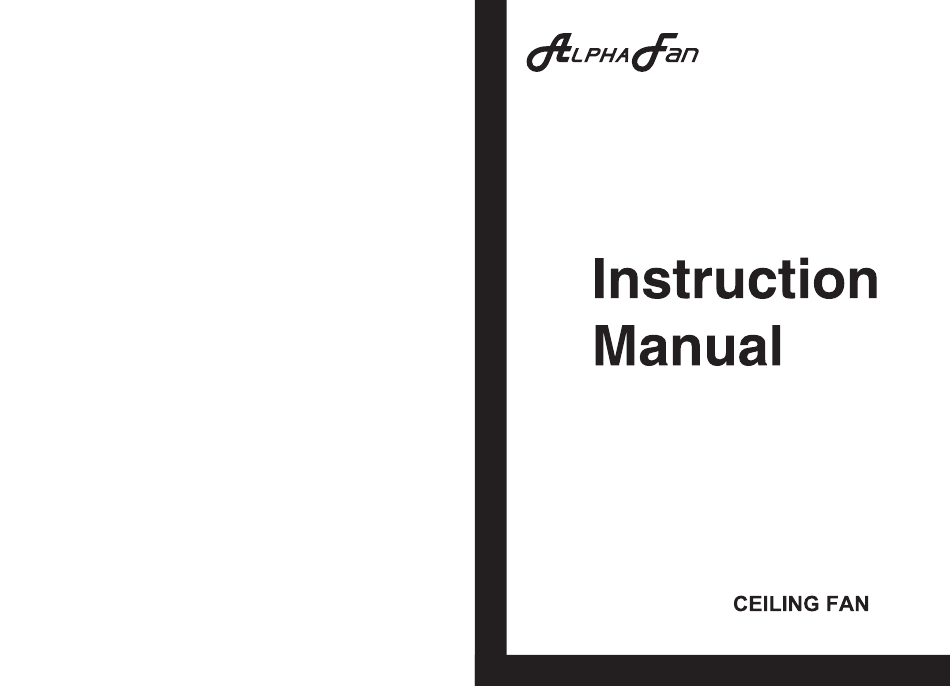

- Page 1 Model : HANI-5B/36 LED Version: SG/2022 V1...
- Page 2 1 - 2 4 - 8 Transmitter Learning Process & Function 8 - 9 Power Supply Connection & Circuit Diagram 10 - 11 Warning Installation and maintenance work shall only be performed by qualified persons, familiar with local code and regulation, and experienced with this type of appliance. All field wiring must be installed in accordance with the national wiring regulation.
-
Page 3: Safety Precaution
SAFETY PRECAUTION CAUTION Please take note of the following important points when installing. The fixing means for attachment to the ceiling such as hooks or other devices shall be fixed with a sufficient strength to withstand 4 times the weight of the ceiling fan. The mounting of the suspension system shall be performed by the manufacturer, its service agent or suitably qualified persons. - Page 4 Step 2 Step 1 a. Drill the holes for 4 Expansion Screws and 1 Expansion ‘J’ Hook provided to the concrete a. Route all the wires & Safety Wire from the Motor through the Fan Rod. ceiling. b. Fix the Fan Rod to the Motor Assembly with Bolt, Washer, Nut and tighten them firmly then insert b.
- Page 5 Step 4 - Step 7 a. Connect the Connectors from Fan and Receiver. a. Install the Blades on Motor with Screw. b. Connect the wires from the Receiver to House’s Supply Wire. b. Two pieces blade screw and washer for each fan blade. c.
- Page 6 Step 9 Below shows a complete installation diagram. Power Fan Speed Turn off fan 1 - Lowest speed 8 - Highest speed Natural Wind Forward Reverse Fan speed changes within Anti-clockwise or its range creating gentle clockwise rotation. sea-breeze effect Timer On Light 1h - Fan turns on after 1 hour...
- Page 7 IMPORTANT : DO NOT CONNECT THIS REMOTE CONTROL CEILING FAN TO DIMMER SWITCH OR REGULATOR. Motor Regulator Dimmer Switch 220-240V~ 50Hz Power Supply Double Pole Switch Earth Orange Blue MAIN PCB Neutral (Blue) Blue Orange N LED+ Single Pole Live (Brown) Brown Blue Switch...
- Page 8 If you need any technical assistance or faulty report, please contact our customer Model HANI-5B/36 LED service centre at : No. of Blades Fan Width 914mm (36”) Alpha Sales & Services Pte. Ltd. (200709461 R) Motor RPM 90 - 220 50, Ubi Avenue 3, #02-16/17, Frontier, Singapore 408866.
