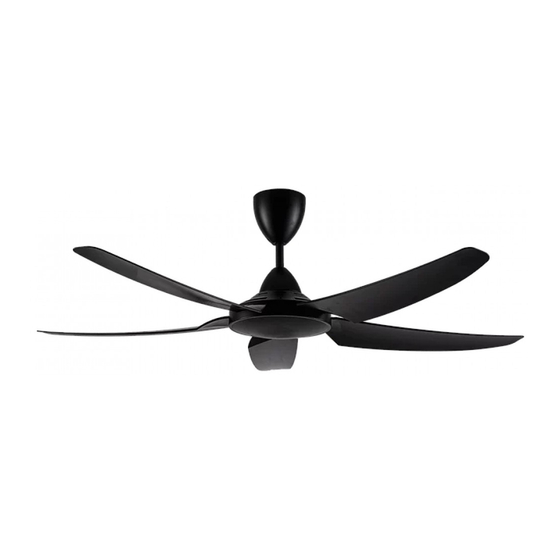

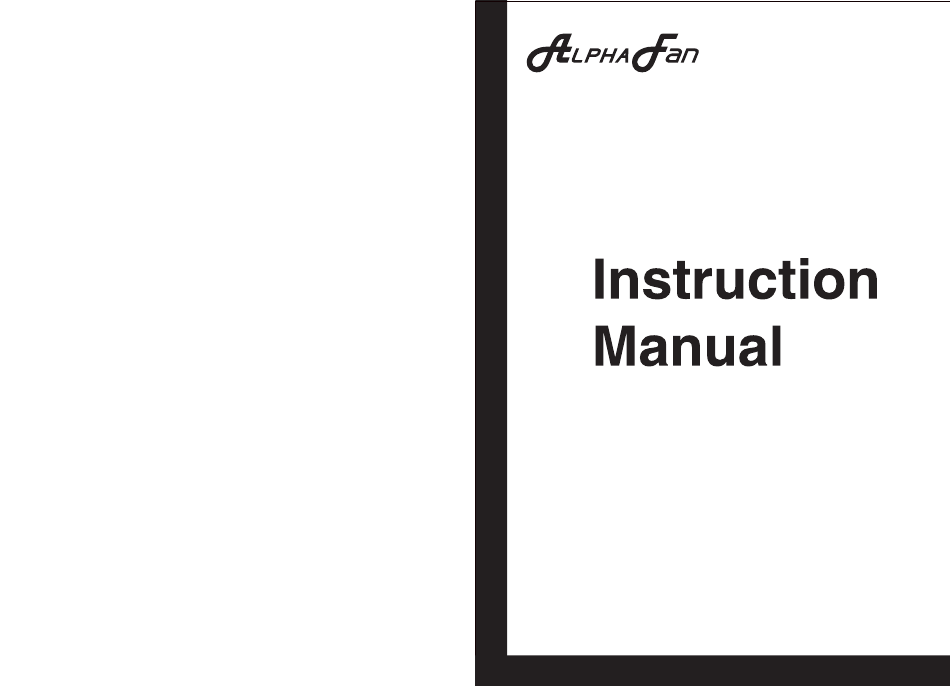

- Page 1 CEILING FAN Model : AX666-5B/56 AX666-5B/40 Version: 2020 V1...
-
Page 2: Safety Precaution
TABLE OF CONTENT SAFETY PRECAUTION Item Page No. CAUTION Please take note of the following important points when installing. 1. Safety Precautions ................1 - 2 The fixing means for attachment to the ceiling such as hooks or other devices shall be fixed with a 2. -
Page 3: Parts And Accessories
PARTS & ACCESSORIES INSTALLATION INSTRUCTION Step 3 Step 1 Assemble the Canopy and Coupling Cover through Fix the Rubber Pulley Assembly to the Downrod the Downrod. with Bolt, Washer, Nut and tighten them firmly, then insert the Clevis Pin. IMPORTANT : Clevis Pin MUST be inserted to prevent Nut from loosening. - Page 4 INSTALLATION INSTRUCTION INSTALLATION INSTRUCTION Step 5 Step 7 Remove the Safety Wire screw and spring washer from the Downrod. Firmly screw the Safety Wire with spring washer onto the Downrod. Step 8 Step 6 Connect the Connectors from Fan and Receiver. Connect the wires from the receiver to House’s Supply Tie the Safety Wire across the hook as shown.
- Page 5 INSTALLATION INSTRUCTION TRANSMITTER LEARNING PROCESS The receiver & transmitter is pre-programmed in factory. If you wish to control 2 or more `fans using 1 Step 9 transmitter, the below steps are required. Install the Blades on Motor with Screw. DO NOT PRESS ANY OTHER BUTTON DURING THIS PROCESS IMPORTANT : Assemble the Fan Blades only after the ceiling fan is mounted on the hook.
-
Page 6: Transmitter Assembly
TRANSMITTER ASSEMBLY POWER SUPPLY CONNECTION IMPORTANT : DO NOT CONNECT THIS REMOTE CONTROL CEILING FAN TO DIMMER 1. Insert the 2 pcs of AAA battery (provided) into the Transmitter. 2. Mount the Transmitter Holder on the wall with the screws provided. SWITCH OR REGULATOR. -
Page 7: Maintenance
2. Damp the cloth lightly. Use only soft or lint-free cloth to clean the fan. Rough fabric will scratch the surface. 3. Do not bent the blades while cleaning. At the event where blades are bent or damage, AX666-5B/56 1420mm (4’ 8”) AX666-5B/40 1030mm (3’...
