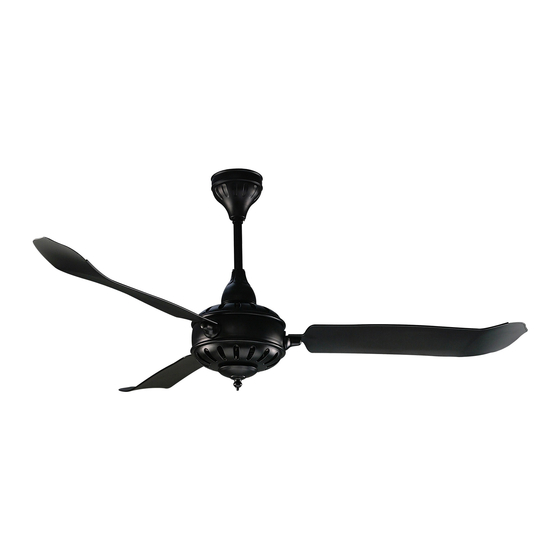

- Page 1 Model : Heritage...
- Page 2 TABLE OF CONTENT IMPORTANT : PLEASE READ BEFORE INSTALLATION 1. Installation must be carried out by a qualified wiring installer. 2. Turn off the electrical mains at the circuit breaker fuse box. 3. Do not use power supply other than 240V~ 50Hz. 4.
- Page 4 Step 3 Remove the bolt and rubber pulley from the downrod and place it onto the ceiling mounting hook. Step 4 Remove the safety wire screw and washer from the downrod.
- Page 5 Step 4 Tie the safety wire across the hook as shown. Step 5 Firmly screw the safety wire with washer onto the dowrod.
- Page 6 Step 7 a) Connect the brown, blue and orange wires from the receiver to the fan. b) Connect the red, white and green wires from the receiver to house’s supply wire. Step 8 Remove the screws at the motor and fix the blades to motor using these screws. IMPORTANT : ASSEMBLE THE BLADES ONLY AFTER THE CEILING FAN IS MOUNTED ON THE HOOK.
- Page 7 Step 9 Install the decorative screw to the fan.
-
Page 9: Power Supply Connection
POWER SUPPLY CONNECTION IMPORTANT : DO NOT CONNECT THIS REMOTE CONTROL CEILING FAN TO REGULATOR OR DIMMER SWITCH. - Page 10 240V~ 50Hz...
