Summary of Contents for Alpha Fan PRIMA-5B/56 LED

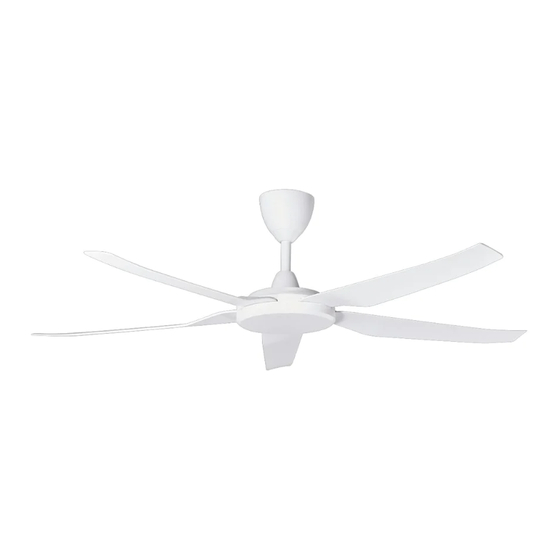

- Page 1 Model : PRIMA-5B/56 LED PRIMA-5B/40 LED Version: 2019 V1...
- Page 2 1 - 2 4 - 6 Transmitter Learning Process & Function 7 - 8 Power Supply Connection & Circuit Diagram 9 - 10 Warning Installation and maintenance work shall only be performed by qualified persons, familiar with local code and regulation, and experienced with this type of appliance. All field wiring must be installed in accordance with the national wiring regulation.
-
Page 3: Safety Precaution
SAFETY PRECAUTION CAUTION Please take note of the following important points when installing. The fixing means for attachment to the ceiling such as hooks or other devices shall be fixed with a sufficient strength to withstand 4 times the weight of the ceiling fan. The mounting of the suspension system shall be performed by the manufacturer, its service agent or suitably qualified persons. - Page 4 a. Route all the wires from the Motor through the Motor Bracket. a. Remove the Bolt, Clevis Pin, Nut, Washer and Rubber Pulley from the Downrod. Place the Rubber Pulley b. Route all the wires through the Downrod. onto the ceiling hook and fix back the Bolt, Clevis Pin, Nut and Washer. c.
- Page 5 Step 5 Step 8 a. Connect the Connectors from Fan and Receiver. Below shows a complete installation diagram. b. Connect the wires from the receiver to House’s Supply Wire. c. Connect Earth Wire to House Supply Earth Terminal. House Supply Wires Brown (L) Green/Yellow (E) Blue (N)
- Page 6 Power Turn off fan Fan Speed 1 - Lowest speed 8 - Highest speed Natural Wind Fan speed changes within Regulator Dimmer Switch Forward/Reverse its range creating gentle Anti-clockwise or sea-breeze effect clockwise rotation Timer On Light 1h - Fan turns on after 1 hour On/Off &...
- Page 7 Model PRIMA-5B/56 LED PRIMA-5B/40 LED IMPORTANT : DO NOT CONNECT THIS REMOTE CONTROL CEILING FAN TO DIMMER No. of Blades SWITCH OR REGULATOR. Fan Width 1420mm (56”) 1015mm (40”) Motor RPM 70 - 210 80- 240 Voltage 220-240V~ 50Hz 220-240V~ 50Hz...
- Page 8 If you need any technical assistance or faulty report, please contact our customer service centre at : Alpha Home Appliances Sdn. Bhd. (390258-H) Head Office : 6, Jalan Sungai Kayu Ara 32/37, Berjaya Park, Section 32, 40460 Shah Alam, Selangor. : 03-5740 6666 : 03-5740 8220 Website...
