- Page 1 User Manual IDK-1115WP-50HDA1E 15.6” HD Industrial Display Kit with Touch Solution...
- Page 2 No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd. Information provided in this manual is intended to be accurate and reliable. How- ever, Advantech Co., Ltd.
- Page 3 Whether your new Advantech equipment is destined for the labo- ratory or the factory floor, you can be assured that your product will provide the reliability and ease of operation for which the name Advantech has come to be known.
- Page 4 Because of Advantech’s high quality-control standards and rigorous testing, most of our customers never need to use our repair service. If an Advantech product is defec- tive, it will be repaired or replaced at no charge during the warranty period. For out- of-warranty repairs, you will be billed according to the cost of replacement materials, service time and freight.
-
Page 5: Table Of Contents
Contents Chapter Overview..........1 General Description .................. 2 Specifications .................... 2 1.2.1 LCD Panel..................2 1.2.2 Touch Screen................2 1.2.3 Environment.................. 2 LCD Functional Block Diagram ..............3 Figure 1.1 Function block diagram ..........3 Mechanical Characteristics ............... 3 Touch Screen driver.................. 4 Absolute Maximum Ratings .............. - Page 6 Handling Precautions................28 IDK-1115WP User Manual...
-
Page 7: Chapter 1 Overview
Chapter Overview... -
Page 8: General Description

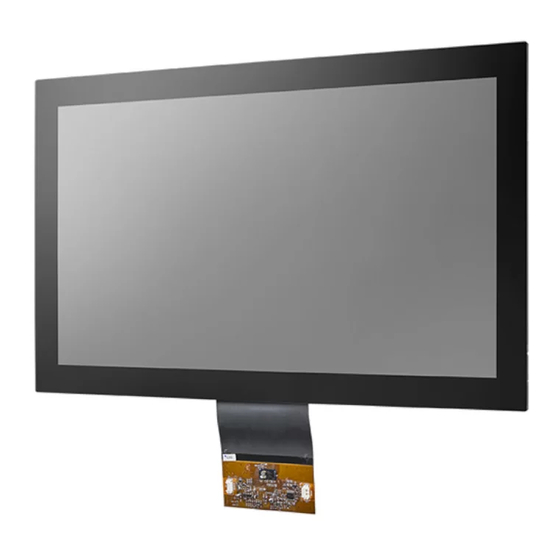

General Description The Advantech IDK-1115WP series comes with a 15.6" industrial grade LCD display with Projected Capacitive touch. IDK-1115WP series supports Projected Capacitive touch with low power consumption. IDK-1115WP series is ideal for embedded appli- cations which customers have maximum flexibility for mechanical design. -
Page 9: Lcd Functional Block Diagram
LCD Functional Block Diagram The following diagram shows the functional block of the 15.6 inches Color TFT-LCD Module: Figure 1.1 Function block diagram Mechanical Characteristics Front View Figure 1.2 IDK-1115WP User Manual... -
Page 10: Touch Screen Driver
Rear View Figure 1.3 Absolute Maximum Ratings 1.5.1 TFT LCD Module Item Symbol Min. Max. Unit Note Power Supply Voltage -0.3 [Volt] Logic Input Voltage -0.3 [Volt] 1.5.2 Backlight Unit Item Symbol Value Unit Note Min. Max. Typ. (1), (2) Converter Voltage V [Volt] Duty=100%... -
Page 11: Absolute Environment Ratings
1.5.3 Environment Item Symbol Min. Max. Unit Note Operating Temperature (1), (2) Storage Temperature Note (1) (a) 90 %RH Max. (Ta < 40 (b) Wet-bulb temperature should be 39 C Max. (Ta < 40 (c) No condensation. Note (2) The temperature of panel surface should be 0 C min. - Page 12 IDK-1115WP User Manual...
-
Page 13: Chapter 2 Electrical Characteristics
Chapter Electrical Characteristics... -
Page 14: Tft Lcd Module
TFT LCD Module 2.1.1 LCD Electronics Specification Input power specifications are as follows: Table 2.1: Power specification Value Parameter Symbol Unit Note Min. Typ. Max. Power Supply Voltage [Volt] White 0.17 0.22 (3)a Input Current Black 0.24 0.29 (3)b Vertical Stripe - 0.27 0.32 (3)c... - Page 15 Note (3) The specified power supply current is under the conditions at Vcc = 5.0 V, Ta = 25 C ± 2 C Fr = 60Hz, whereas a power dissipation check pat- tern below is displayed. Figure 2.2 Note (4) The power consumption is specified at the pattern with the maximum current.
-
Page 16: Vcc Power Dip Condition
2.1.2 Vcc Power Dip Condition Figure 2.4 Backlight Unit Following characteristics are measured under stable condition at 25°C: Table 2.2: Backlight driving conditions Values Item Symbol Unit Note Min. Typ. Max. Input Voltage 10.8 13.2 [Volt] Input Current @ Vi = 12V (Duty 100%) Power Consumption 10.5... -
Page 17: Backlight Pin Assignment
Figure 2.5 Backlight Pin Assignment Table 2.3: Backlight Pin Assignment Symbol Description Remark Converter input voltage VGND Converter ground Ground Enable pin 3.3 V PWM Dimming Backlight Adjust (Hi: 3.3VDC, Lo: 0VDC) Not Connect Note! Connector Part No.:CI4205M2HRP-NH,CVILUX LVDS Input Signal Specifications 2.4.1 LVDS Data Mapping Table Table 2.4: LVDS Data Mapping Table... - Page 18 2.4.2 Color Data Input Assignment The brightness of each primary color (red, green and blue) is based on the 8-bit gray scale data input for the color. The higher the binary input, the brighter the color. The table below provides the assignment of color versus data input. Table 2.5: Color Data Input Assignment Data Signal Color...
-
Page 19: Chapter 3 Signal Characteristics
Chapter Signal Characteristics... -
Page 20: Display Timing Specifications
Display Timing Specifications The input signal timing specifications are shown as the following table and timing diagram. Table 3.1: Display Timing Specifications Signal Item Symbol Min. Typ. Max. Unit Note Frequency Period 13.15 - "Input cycle Trcl -0.02*Tc - 0.02*Tc cycle jitter"... - Page 21 Figure 3.1 Note (3) The input clock cycle-to-cycle jitter is defined as below figures. Trcl = I — Figure 3.2 Note (4) Input Clock to data skew is defined as below figures. Figure 3.3 Note (5) The SSCG (Spread spectrum clock generator) is defined as below fig- ures.
-
Page 22: Power On/Off Sequence
Figure 3.4 Power On/Off Sequence The power sequence specifications are shown as the following table and diagram. Figure 3.5 Table 3.2: Timing Specifications: Parameter Value Units IDK-1115WP User Manual... - Page 23 Note! Please avoid floating state of interface signal at invalid period. Note! When the interface signal is invalid, be sure to pull down the power sup- ply of LCD VCC to 0 V. Note! The Backlight converter power must be turned on after the power supply for the logic and the interface signal is valid.
-
Page 24: Pin Description
Pin Description Table 3.3: Pin Description Name Description Not connection, this pin should be open Not connection, this pin should be open Not connection, this pin should be open Ground RX0- Negative LVDS differential data input. Channel 0 RX0+ Positive LVDS differential data input. Channel 0 Ground RX1- Negative LVDS differential data input. -
Page 25: Chapter 4 Touchscreen & Touch Controller
Chapter Touchscreen & Touch Controller... -
Page 26: Touchscreen
Black border Touch Controller Advantech’s IDK-1115WP series projective capacitive touch screen adopts a COF (Chip on FPC) design so an extra touch control board is not required. This communi- cates with a PC system directly through USB connectors. The superior design is sen- sitive, accurate and user friendly. -
Page 27: Electrical Specifications
4.2.1 Electrical Specifications Item Specifications 1pt +/- 1mm offset / 10mm 2pt +/- 2mm offset / 10mm Line drawing accuracy : Touch (point) accuracy : 1pt +/- 2.5mm Touch (point) accuracy : 2pt +/- 5.0mm Refer to Windows 7 Logo regulation Operating voltage Insulation resistance DC25V and 20MΩ... - Page 28 IDK-1115WP User Manual...
-
Page 29: Appendix Alcd Optical Characteristics
Appendix LCD Optical Characteristics... -
Page 30: Lcd Module Optical Characteristics
LCD Module Optical Characteristics The optical characteristics are measured under stable conditions at 25°C (Room Temperature): Table A.1: Optical Characteristics Item Conditions Min. Typ. Max. Unit Note Horizontal CR ≧ 10 Viewing Angle [degree] Vertical CR ≧ 10 Luminance Uniformity White x 0.313 Color coordinates... - Page 31 Figure A.2 Note! 9-point luminance uniformity is defined by dividing the maximum lumi- nance values by the minimum test point luminance Minimum [L (1) ~ L (9)] Maximum [L (1) ~ L (9)] Note! Measurement method The LCD module should be stabilized at given temperature for 20 min- utes to avoid abrupt temperature change during measuring.
- Page 32 Figure A.4 Note! Definition of Contrast Ratio (CR):The contrast ratio can be calculated by the following expression. Contrast Ratio (CR) = L255 / L0 L255: Luminance of gray level 255 L 0: Luminance of gray level 0 CR = CR (5) CR (X) is corresponding to the Contrast Ratio of the point X (See Figure IDK-1115WP User Manual...
-
Page 33: Appendix B Handling Precautions
Appendix Safety Precautions... - Page 34 Safety Precautions The optical characteristics are measured under stable conditions at 25°C (Room Temperature) Since the front polarizer is easily damaged, be very careful not to scratch it. Be sure to turn off the power supply when inserting or disconnecting from the input connector.
- Page 35 No part of this publication may be reproduced in any form or by any means, electronic, photocopying, recording or otherwise, without prior written permis- sion of the publisher. All brand and product names are trademarks or registered trademarks of their respective companies. © Advantech Co., Ltd. 2018...
