  • Page 1 User Manual IDS-3315 Series 15" Industrial Front IP65 Monitor...
  • Page 2 The documentation and the software included with this product are copyrighted 2018 by Advantech Co., Ltd. All rights are reserved. Advantech Co., Ltd. reserves the right to improve the products described in this manual at any time without notice. No part of this manual may be reproduced, copied, translated, or transmitted in any form, or by any means, without the prior written permission of Advantech Co., Ltd.
  • Page 3 In such cases, users are required to correct the interference at their own expense. Technical Support and Assistance Visit the Advantech website at http://support.advantech.com to obtain the latest product information. Contact your distributor, sales representative, or Advantech's customer service center for technical support or additional assistance.
  • Page 4 Discard used batteries according to the manufacturer's instruc- tions. Note! Notes provide additional optional information. Document Feedback To assist us in improving this manual, we welcome all comments and constructive criticism. Please send all feedback in writing to support@advantech.com IDS-3315 User Manual...
  • Page 5 The sound pressure level at the operator's position does not exceed 70 dB (A) in accordance with IEC 704-1:1982. DISCLAIMER: These instructions are provided according to IEC 704-1. Advantech disclaims all responsibility for the accuracy of any statements contained herein.
  • Page 6 IDS-3315 User Manual...
  • Page 7: Table Of Contents

    Contents Chapter Overview..........1 Introduction ....................2 Features ....................2 Applications....................2 Product Photos..................2 Naming Rule ..................... 3 Chapter System Setup ........5 Specifications .................... 6 Rear Mount Assembly................7 Packing List....................7 Chapter Touchscreen ........9 OSD Functions..................10 OSD Menu Details .................. 11 3.2.1 Luminance ..................
  • Page 8 IDS-3315 User Manual viii...
  • Page 9: Chapter 1 Overview

    Chapter Overview  Introduction  Features  Applications  Product Photos  Naming Rule...
  • Page 10: Introduction

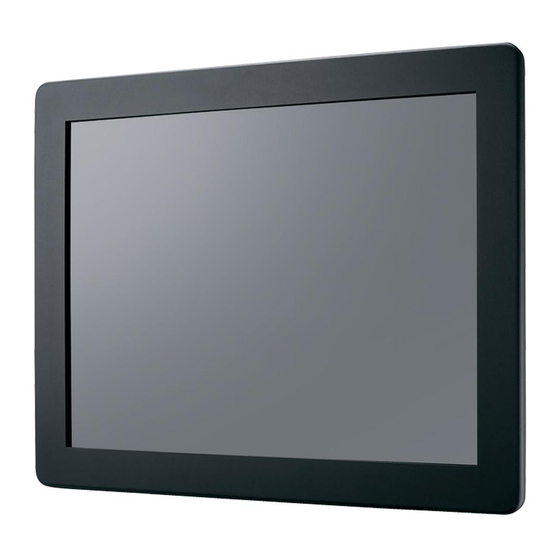

    Introduction Advantech’s IDS-3315 series is a brand new Industrial front IP65 Monitor, designed for waterproof and dustproof at the front side for different applications, such as public signage, front of house information, medical, and point-of-sale. Features  15" XGA LED backlight panel which provides 20~30% power saving ...
  • Page 11: Naming Rule

    Naming Rule IDS-3315 User Manual...
  • Page 12 IDS-3315 User Manual...
  • Page 13: Chapter 2 System Setup

    Chapter System Setup  Specifications  Dimensions  Rear Mount Assembly  Cable Clamp  Packing List...
  • Page 14: Specifications

    Specifications Note! The IDS-3315 offers the following features. Unless otherwise indicated, all the specifications listed below are sub- ject to change without prior notification. Model IDS-3315 Size 15" LED panel Resolution 1024 x 768 (XGA) Viewing Angle 88°/88° (H), 88°/88° (V) Display Brightness 500 (cd/m...
  • Page 15: Rear Mount Assembly

    Rear Mount Assembly Note! Suggested screws - M4x10L Packing List  1 x VGA cable 15P(M) 1.8 meter  1 x USB-A(M)/USB-A(M) 1.8 meter  8 x Panel-mount clamps  8 x Panel-mount clamper screws: M4_25L  1 x Cable clamp ...
  • Page 16 IDS-3315 User Manual...
  • Page 17: Chapter 3 Touchscreen

    Chapter Touchscreen  OSD Functions  Touch Drivers...
  • Page 18: Osd Functions

    OSD Functions IDS-3315 is equipped with 1024 x 768 display resolution and the following OSD fea- tures: Buttons Description Power Turn the monitor power ON or OFF Activate the OSD menu Menu Select Automatically adjust the clock, phase Auto/Exit H-position and V-position Move the selector to the previous option Value Up/Down Reduce the value of the selected option...
  • Page 19: Osd Menu Details

    OSD Menu Details 3.2.1 Luminance Contrast Brightness Eco Mode IDS-3315 User Manual...
  • Page 20: Image Setup

    3.2.2 Image Setup Clock IDS-3315 User Manual...
  • Page 21 Phase H. Position V. Position Image Ratio IDS-3315 User Manual...
  • Page 22: Color Temperature

    3.2.3 Color Temperature Color Temperature IDS-3315 User Manual...
  • Page 23: Osd Setup

    3.2.4 OSD Setup H. Position V. Position Timeout IDS-3315 User Manual...
  • Page 24: Extra

    Language 3.2.5 Extra Input Select IDS-3315 User Manual...
  • Page 25 DDC/CI Reset IDS-3315 User Manual...
  • Page 26 Layer 1 Layer 2 Layer 3 Comment Default Value Contrast Adjusts contrast Brightness Adjusts brightness (backlight) Standard Sport Luminance Movie ECO Mode Standard Game Internet Text Sets dynamic contrast ratio Adjusts clock latency of output Depends on the Clock capture window input resolution Depends on the Adjusts clock phase of output...
  • Page 27: Touch Drivers

    Display current source infor- Depends on the Information H. Frequency mation input source V. Frequency Touch Drivers The touchscreen driver is available online at the Advantech website. Use the follow- ing link to access the driver: http://support.advantech.com/support/default.aspx IDS-3315 User Manual...
  • Page 28 IDS-3315 User Manual...
  • Page 29 Appendix Troubleshooting...
  • Page 30: Appendix A Troubleshooting

    Introduction If the monitor is malfunctioning or does not operate according to the user manual, refer to the following instructions before calling the Advantech service center. If you are unable to correct the faults using the instructions provided below, please contact your distributor or the Advantech service center.
  • Page 31 IDS-3315 User Manual...
