π

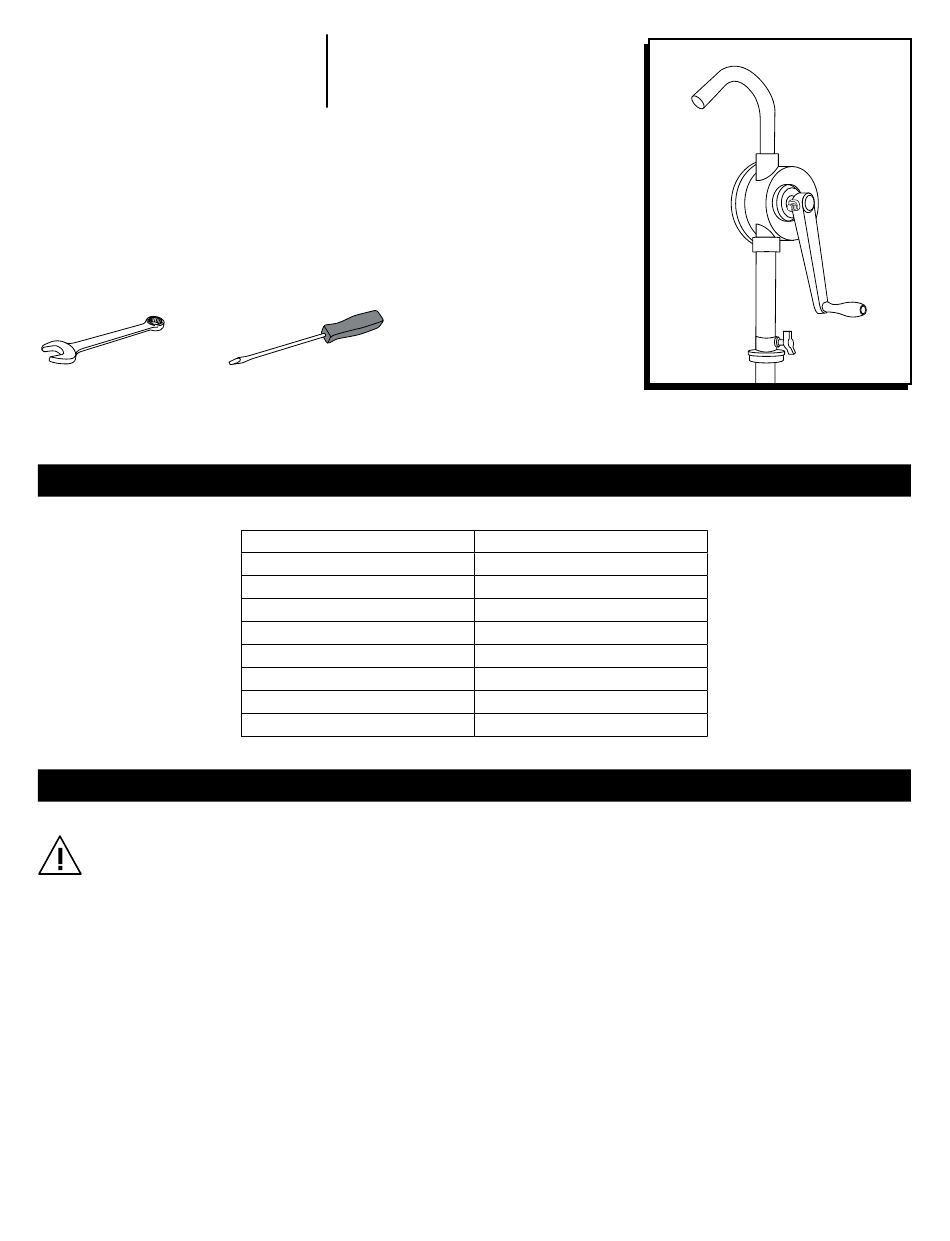

H-5647

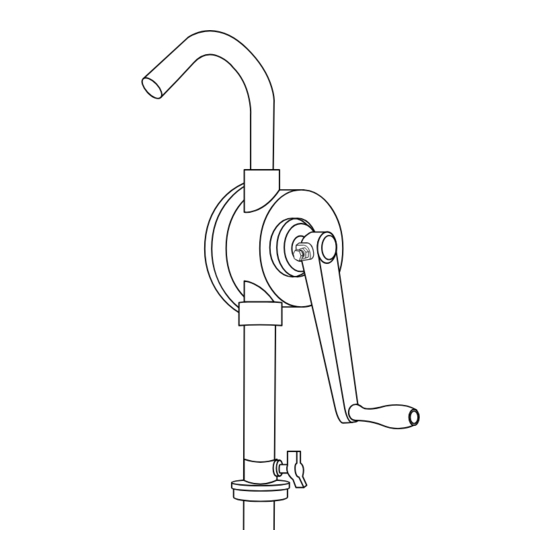

STAINLESS STEEL
ROTARY DRUM PUMP
TOOLS NEEDED
1/2" Wrench
IMPORTANT! This pump is made out of 304 stainless steel and PTFE. Use liquids compatible with pump
component materials. Follow OSHA guidelines when using this pump, including proper grounding and
protective gear as required. For a full list of materials and compatible chemicals, see uline.com.
Unit not UL or FM approved.
1.
Rotate handle clockwise several times to prime. If
unit does not prime after a few turns, pouring some
fluid into pump inlet may help free pump.
2. For siphoning, position handle straight down.
3. To stop siphoning, rotate handle 1/4 turn (leave
handle in horizontal position).
PAGE 1 OF 9
1-800-295-5510
uline.com
Flathead Screwdriver
SPECIFICATIONS
Pump Type
Flow
Maximum Fluid Temperature
Bung Adapter
Suction Tube Length
Inlet
Outlet
Wetted Parts
Maximum Viscosity
OPERATING INSTRUCTIONS
Rotary – Vane
10 GPM
140°F / 60°C
2" Male
40" Maximum
1⁄" O.D.
1" O.D. Curved Spout
304 Stainless Steel, PTFE
1,000 cps
4. After using pump, position handle straight down.
Liquid will drain back into the container.
5. If pump is removed from drum, rinse it thoroughly in
a liquid that is compatible with both the pump and
the fluid being pumped.
6. Regularly check pump and suction tubes for leaks.
Leaks in the suction line or in pump housing will
cause inefficient pumping and loss of prime.
Para Español, vea páginas 4-6.
Pour le français, consulter les pages 7-9.
0123 IH-5647

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H-5647 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for U-Line H-5647

Summary of Contents for U-Line H-5647

  • Page 1 Para Español, vea páginas 4-6. Pour le français, consulter les pages 7-9. π H-5647 1-800-295-5510 uline.com STAINLESS STEEL ROTARY DRUM PUMP TOOLS NEEDED 1/2" Wrench Flathead Screwdriver SPECIFICATIONS Pump Type Rotary – Vane Flow 10 GPM Maximum Fluid Temperature 140°F / 60°C Bung Adapter 2"...

  • Page 2: Assembly And Installation

    ASSEMBLY AND INSTALLATION DESCRIPTION QTY. Discharge Spout Barb Spout Casing Rotor Assembly Vane Spring Spring Rod Lip Seal O-RIng Front Cover Cap Screw Crank Arm Handle Bung Adapter Thumb Screw Cap Screw Handle Shaft Hex Nut Tail Pipe Suction Tube NOTE: Teflon tape should be applied to all 5.

  • Page 3: Troubleshooting

    TROUBLESHOOTING OPERATING ISSUE RECOMMENDATIONS Not priming Ensure Teflon tape has been applied to all intake threads. Wrap up to 6 times each. Rotate handle backwards for slight intake to coat mechanisms. If insufficient, turn discharge spout upside down and feed liquid through pump back into drum. If issues persist and user determines compatible with drum contents and their intended application, can use a PTFE Spray into discharge spout and flush (ex: WD40).

  • Page 4: Especificaciones

    π H-5647 800-295-5510 uline.mx BOMBA GIRATORIA DE ACERO INOXIDABLE PARA TAMBO HERRAMIENTAS NECESARIAS Llave de 1/2" (13 mm) Desarmador de Cabeza Plana ESPECIFICACIONES Tipo de Bomba Giratoria – Aspas Flujo 10 GPM (Galones por Minuto) Temperatura Máxima de Fluido 140 °F / 60 °C Adaptador de Tapón...
  • Page 5 ENSAMBLE E INSTALACIÓN DESCRIPCIÓN CANT. Boquilla de Descarga Boquilla Cubierta Ensamble del Rotor Aspas Resorte Varilla del Resorte Sello del Reborde Anillo Tórico Tapa Delantera Tornillo de Cabeza Manivela Adaptador de Tapón Tornillo Moleteado Tornillo de Cabeza Eje del Asa Tuerca Hexagonal Tubería de Escape Tubo de Succión...

  • Page 6: Solución De Problemas

    SOLUCIÓN DE PROBLEMAS PROBLEMA DE FUNCIONAMIENTO RECOMENDACIONES No se purga Asegúrese de que se ha aplicado cinta de teflón en todas las roscas. Envuelva hasta 6 veces cada una. Gire el asa hacia atrás para conseguir una poca entrada de líquido que recubra los mecanismos. Si no es suficiente, gire la boquilla de descarga y vuelva a introducir el líquido en el tambo a través de la bomba.

  • Page 7: Spécifications

    π H-5647 1-800-295-5510 uline.ca POMPE À BARIL ROTATIVE EN ACIER INOXYDABLE OUTILS REQUIS Clé de 1/2 po (13 mm) Tournevis à tête plate SPÉCIFICATIONS Type de pompe Rotative à palettes Débit 10 GPM (12 oz [354,9 ml]/tour de manivelle) Température maximale du liquide 60 °C / 140 °F Adaptateur de bonde 5 cm (2 po) (mâle)

  • Page 8: Assemblage Et Installation

    ASSEMBLAGE ET INSTALLATION DESCRIPTION QTÉ Goulotte orientable Bec à raccord cannelé Boîtier Rotor Palette Ressort Tige à ressort Rondelle d'étanchéité Joint torique Couvercle avant Vis d'assemblage Bras de manivelle Poignée Adaptateur de bonde Vis de serrage Vis d'assemblage Arbre de poignée Écrou hexagonal Tuyau d'échappement Tube d'aspiration...

  • Page 9: Dépannage

    DÉPANNAGE PROBLÈME RECOMMANDATIONS Aucun amorçage Assurez-vous que le ruban de Téflon a été appliqué sur tous les filetages d'entrée. Enroulez le ruban jusqu'à six fois. Faites tourner la poignée vers l'arrière pour légèrement enduire les mécanismes d'entrée. Si cela ne suffit pas, tournez la goulotte orientable vers le bas et renvoyez le liquide dans le baril en utilisant la pompe.
