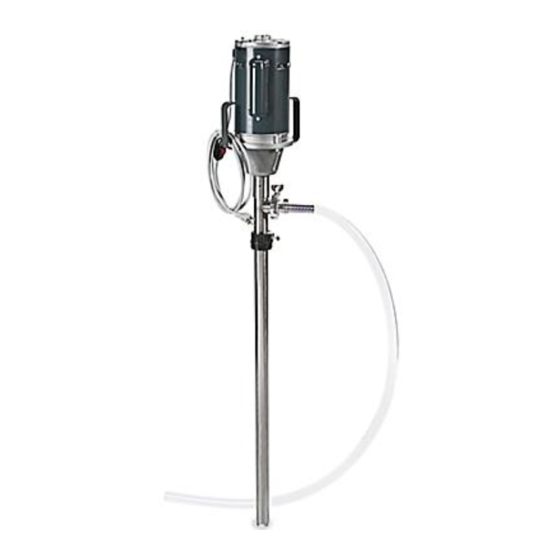

High-viscosity electric drum pump
Table of Contents
  • Seguridad General
  • Conexión a Tierra
  • Instalación y Operación
  • Mantenimiento
  • Solución de Problemas
  • Sécurité Générale
  • Mise à la Terre
  • Installation et Fonctionnement
  • Dépannage

Advertisement

Available languages

Available languages

Quick Links

π
H-6501
HIGH-VISCOSITY
ELECTRIC DRUM PUMP
GENERAL SAFETY
This pump is designed to transfer clean, non-abrasive,
and nonflammable liquids that are compatible with
pump materials.
For a list of materials and compatible chemicals, see
uline.com.
Other factors such as viscosity, pressure, specific
gravity, temperature, concentration and chemical
combinations should also be considered when
determining compatibility. Always contact your
chemical supplier for compatibility recommendations.
Final selection should be based on actual field testing
under the conditions of intended use.
1.
Know the pump application, limitations and
potential hazards.
CAUTION! Do not use to pump flammable
or explosive fluids, such as gasoline, fuel
oil, kerosene, etc. Do not use in explosive
atmospheres. Pump should only be used with
liquids compatible with pump component
materials. Failure to follow this warning can
result in personal injury and/or property
damage.
2. Make certain that the power source conforms to the
requirements of the equipment.
3. Provide adequate protection and guarding around
moving parts.
4. Disconnect power before servicing.
PAGE 1 OF 9
1-800-295-5510
uline.com
SAFETY
5. Release all pressure within pump before servicing
any component.
6. Drain all liquids from pump before servicing.
7.
Secure the discharge line before starting the pump.
An unsecured discharge line will whip, possibly
causing personal injury and/or property damage.
8. Before each use, check hoses for weak or worn
condition, making certain that all connections are
secure.
9. Periodically inspect pump components. Perform
routine maintenance as required.
(See Maintenance section)
10. Provide a means of pressure relief for pumps where
discharge line can be shut off or obstructed.
11. Personal Safety –
a. Wear safety glasses at all times when working
with pump.
b. Wear a face shield and proper apparel when
pumping hazardous chemicals.
12. When wiring an electrically-driven pump, follow all
electrical and safety codes, as well as the most
recent United States National Electrical Code (NEC)
and the Occupational Safety and Health Act (OSHA).
Para Español, vea páginas 4-6.
Pour le français, consulter les pages 7-9.
CAUTION! Risk of electrical shock! Never
connect the green (or green and yellow) wire to
a live terminal!
0721 IH-6501
