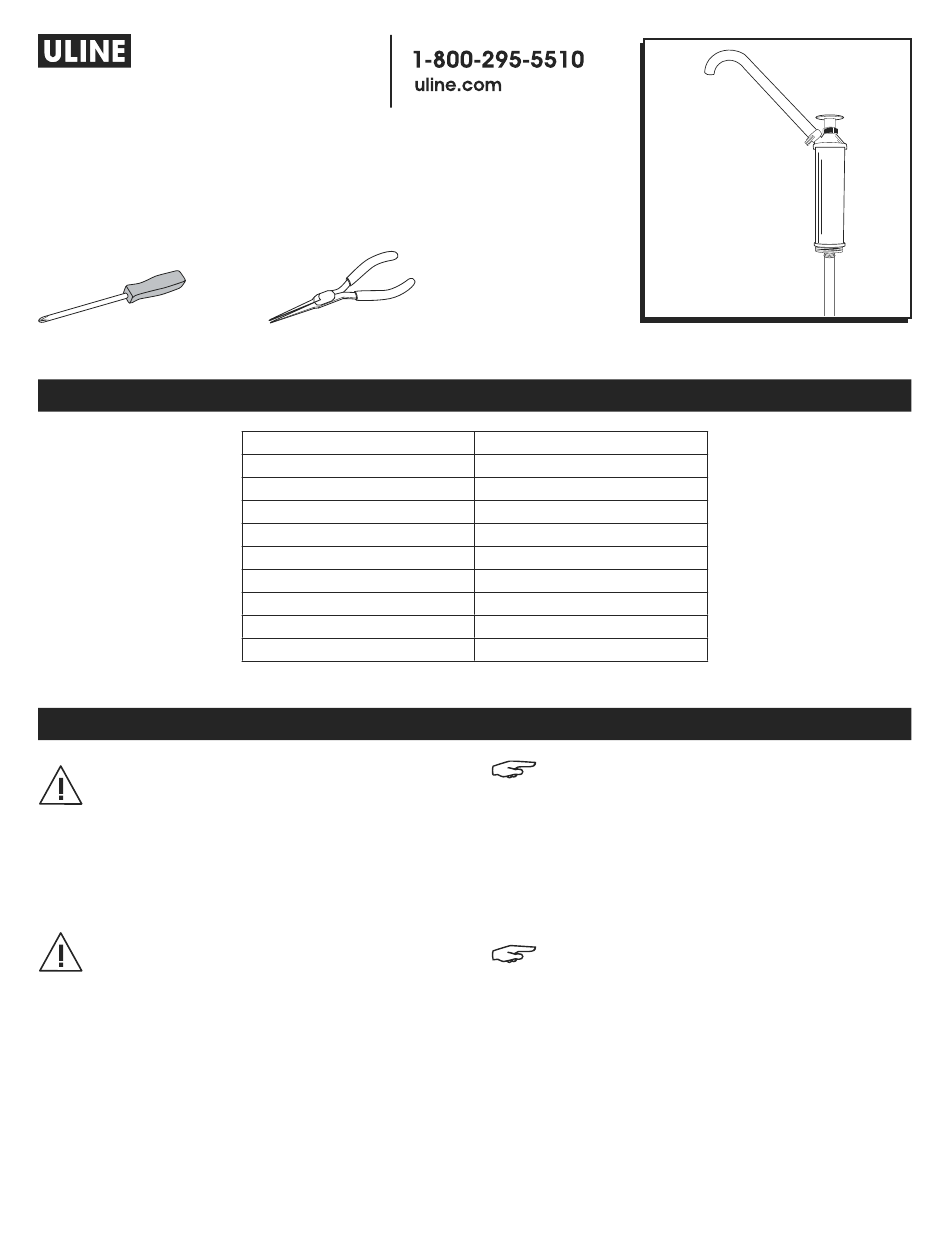

H-2634
PLASTIC PAIL/DRUM PUMP
TOOLS NEEDED
Screwdriver
WARNING! It is the responsibility of the user to
operate the pump in conformance with OSHA
rules for dispensing liquids. Pump containers
should be grounded when using with
flammable liquids to avoid static electricity.
Pump should be washed out before usage
since processing lubricants could contaminate
fluids.
CAUTION! Pump is not to be used with acid
products or flammable or explosive chemicals.
Not U.L. approved.
PAGE 1 OF 12
Pliers (Optional)
SPECIFICATIONS
Flow rate per stroke
Mounting
Inlet
Outlet
Bung Adapter
Suction Tube
Packing Gland
Wetted Parts
Viscosity
Max. Temp.
GENERAL SAFETY
8 oz. (2, 4, 6 or 8)
5 gal. flex 2⁄"
1/2"
1/2"
2" & 3/4" Polypropylene
32" Polyethylene
PE
PE & PP
1,000 cps
140°F
NOTE: Pump should only be used with
liquids compatible with pump component
materials. The chemical supplier should
be consulted regarding any questions of
chemical compatibility, proper and safe use
and handling of chemical. Misapplication of
pump or use of noncompatible liquids will void
warranty.
NOTE: Do not overtighten nonmetallic threaded
fittings. One full turn past hand tight is usually
enough to prevent leakage. Teflon sealant
tape should be used on all threaded joints,
including the spout.
Para Español, vea páginas 5-8.
Pour le français, consulter les page 9-12.
0721 IH-2634
