Seat/Helmet Holder - BMW R 1150 R 2002 Rider's Manual

B
2

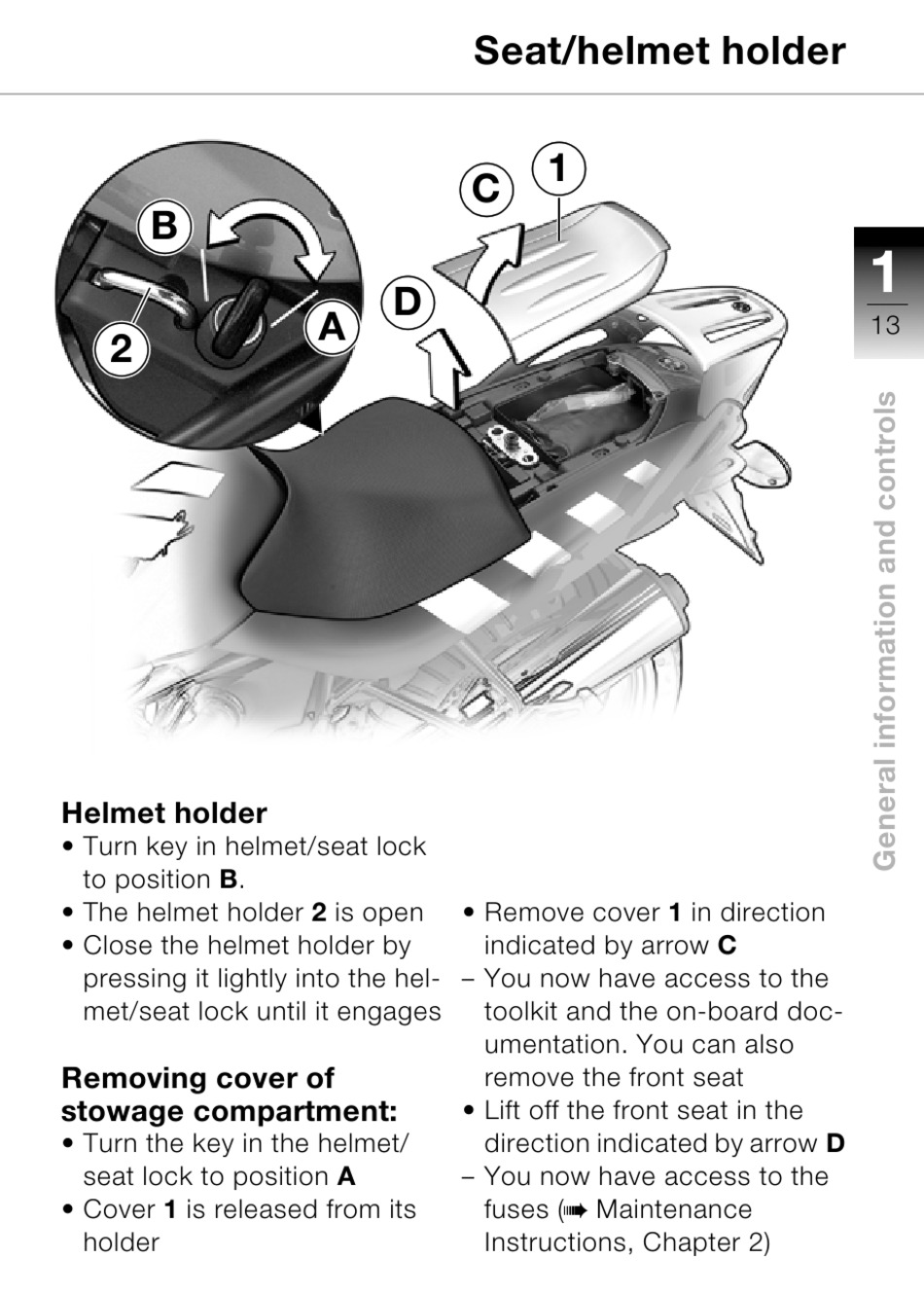

Helmet holder
• Turn key in helmet/seat lock
to position B.
• The helmet holder 2 is open
• Close the helmet holder by
pressing it lightly into the hel-
met/seat lock until it engages
Removing cover of
stowage compartment:
• Turn the key in the helmet/
seat lock to position A
• Cover 1 is released from its
holder

Seat/helmet holder

C
D
A
• Remove cover 1 in direction
indicated by arrow C
– You now have access to the
toolkit and the on-board doc-
umentation. You can also
remove the front seat
• Lift off the front seat in the
direction indicated by arrow D
– You now have access to the
fuses (
Instructions, Chapter 2)
1
Maintenance
b
1
13
