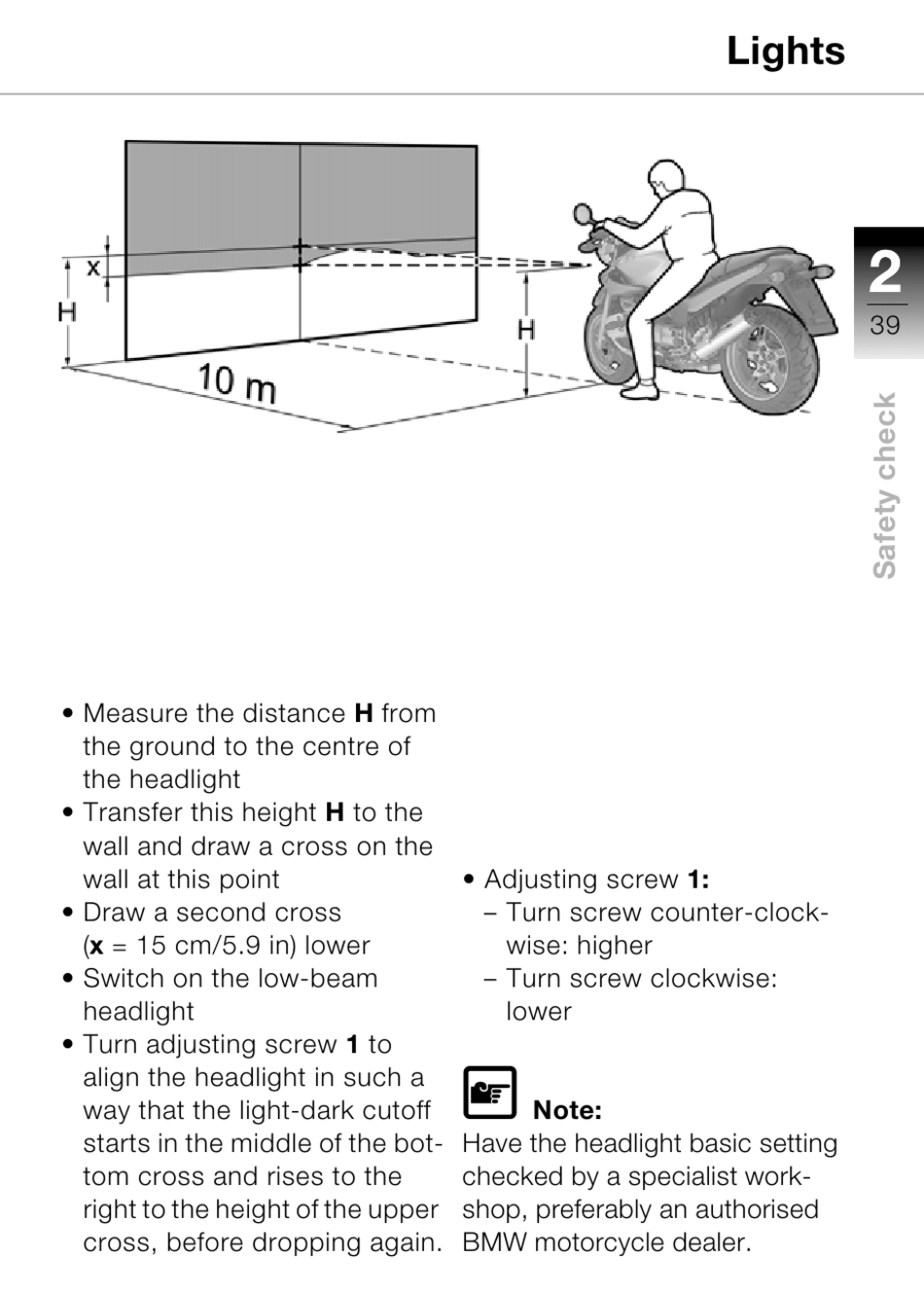

• Measure the distance H from
the ground to the centre of
the headlight
• Transfer this height H to the
wall and draw a cross on the
wall at this point
• Draw a second cross
(x = 15 cm/5.9 in) lower
• Switch on the low-beam
headlight
• Turn adjusting screw 1 to
align the headlight in such a
way that the light-dark cutoff
starts in the middle of the bot-
tom cross and rises to the
right to the height of the upper
cross, before dropping again.
• Adjusting screw 1:
– Turn screw counter-clock-
wise: higher
– Turn screw clockwise:
lower
L
Note:
Have the headlight basic setting
checked by a specialist work-
shop, preferably an authorised
BMW motorcycle dealer.
Lights
2
2
39
