Sku# 2595237
Item# 52106
Model# HYFP40205-107
WARNING: If the information in this
manual is not followed exactly, a fire or
explosion may result causing property
damage, personal injury, or loss of life.
WARNING
Improper installation, adjustment, alteration, service or maintenance can cause property
damage, personal injury or loss of life. Refer to the owner's information manual provided
with this appliance. Installation and service must be performed by a qualified installer,
service agency, or the gas supplier.
INSTALLER: Leave this
manual with the appliance.
CONSUMER: Retain this
manual for future reference.

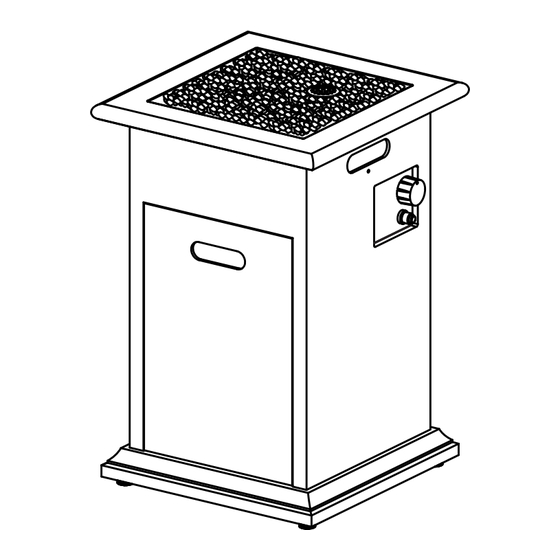

Castle Rock Fire Column
DANGER
Owner's Manual
DANGER
FIRE OR EXPLOSION HAZARD
If you smell gas:
Shut off gas to the appliance.
•
Extinguish any open flame.
•
If odor continues, leave the area immediately.
•
After leaving the area, call your gas supplier
•
or fire department.
Failure to follow these instructions could
result in fire or explosion, which could cause
property damage, personal injury, or death.
WARNING
Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance. An LP-cylinder not connected
for use shall not be stored in the vicinity of
this or any other appliance.
WARNING: For Outdoor Use Only.
Installation and service must be performed
by a qualified installer, service agency,
or the gas supplier.
CARBON MONOXIDE HAZARD
This appliance can produce carbon
monoxide which has no odor.
Using it in an enclosed space can kill you.
Never use this appliance in an enclosed
space such as a camper, tent, car or
home.
