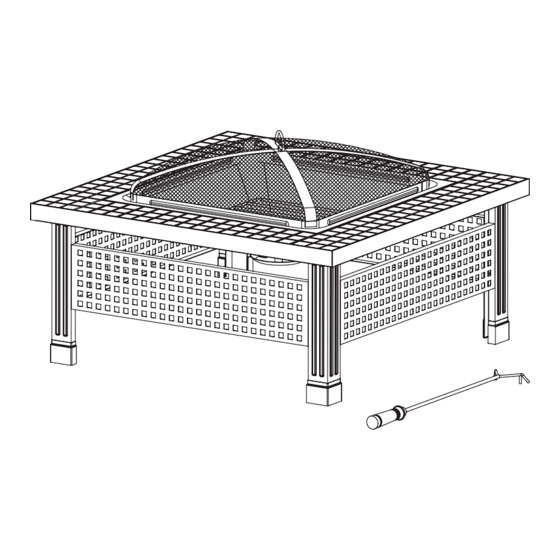

SIENNA 34" SLATE TOP FIRE PIT
MODEL #OFW107S-M
Questions, problems, missing parts? Before returning to your retailer,
call our customer service department at 1-877-447-4768,
8:30 a.m.-4:30 p.m., CST, Monday-Friday or email us at
customerservice@ghpgroupinc.com.
30-10-061
Rev 9/29/14
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OFW107S-M and is the answer not in the manual?

Questions and answers

Related Manuals for Backyard Creations OFW107S-M

Summary of Contents for Backyard Creations OFW107S-M

  • Page 1 SIENNA 34" SLATE TOP FIRE PIT MODEL #OFW107S-M Questions, problems, missing parts? Before returning to your retailer, call our customer service department at 1-877-447-4768, 8:30 a.m.-4:30 p.m., CST, Monday-Friday or email us at customerservice@ghpgroupinc.com. 30-10-061 Rev 9/29/14...
  • Page 2 PACKAGE CONTENTS PART DESCRIPTION QUANTITY Handle Mesh Cover Wood Grate Fire Bowl Ash Catcher Slate Top Legs Side Panels Poker...
  • Page 3 HARDWARE LIST M6 Nut M6/M5 M6x10mm M6 Flange M5x10mm M5 Nut Qty. 4 Wrench Bolt Bolt Qty. 3 Qty. 1 Qty. 16 Qty. 1 Qty. 3 SAFETY INFORMATION Please read and understand this entire manual before attempting to assemble, operate or install the product.
  • Page 4 PREPARATION Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and hardware contents above. If any part is missing or damaged, do not attempt to assemble the product. Contact customer service for replacement parts. Estimated Assembly Time: 25 minutes Tools Required for Assembly: Phillips Screwdriver (Not Included) and Wrench (Included) ASSEMBLY INSTRUCTIONS...
  • Page 5 ASSEMBLY INSTRUCTIONS 2. Attach ash catcher (E) to fire bowl (D) by inserting three M5x10mm bolts (AA) into predrilled holes and secure with M5 nuts (BB). Tighten with wrench (FF) and screwdriver. Hardware Used M5x10mm Bolt M5 Nut Wrench 3. Attach leg (G) to slate top (F) using two M6 Nuts (EE).
  • Page 6 ASSEMBLY INSTRUCTIONS 5. Turn completed base and slate top assembly right side up. Place fire bowl (D) into base as illustrated. Place wood grate (C) into fire bowl as illustrated. Place mesh cover (B) over fire bowl as illustrated. Keep poker (I) near fire pit for use as needed.
  • Page 7 CARE AND MAINTENANCE • To extend the life of your fire pit, clean it after each use. • To protect fire pit finish, use a soft cloth to wipe fire pit and poker. • Do not attempt to clean while hot. •...
  • Page 8 PART DESCRIPTION PART # Handle 40-07-453 Hardware Pack 30-09-002 Mesh Cover 40-08-113 Model/Modelo/Modéle #OFW104SC/ #OFW104SC-1 Wood Grate 40-08-114 #OFW104S/ #OFW104S-KR/ #OFW107S-M Fire Bowl 30-01-008 Ash Catcher 40-08-116 Slate Top 30-01-009 Legs 30-06-297 Side Panels 30-06-002 Poker 40-04-409 #30-09-002 Printed in China...
