Backyard Creations SRFP41301 Instruction Manual

47'' stone fireplace
Hide thumbs

Advertisement

Quick Links

Questions, problems, missing parts? Before returning to your retailer, call
our customer service department at 1-866-814-0585, 8 a.m. - 8 p.m., EST
Monday - Friday. Or e-mail: customerservice@shinerichgroup.com.
259-5069
47'' Stone Fireplace
Model# SRFP41301
Instructions Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the SRFP41301 and is the answer not in the manual?

Questions and answers

Related Manuals for Backyard Creations SRFP41301

Summary of Contents for Backyard Creations SRFP41301

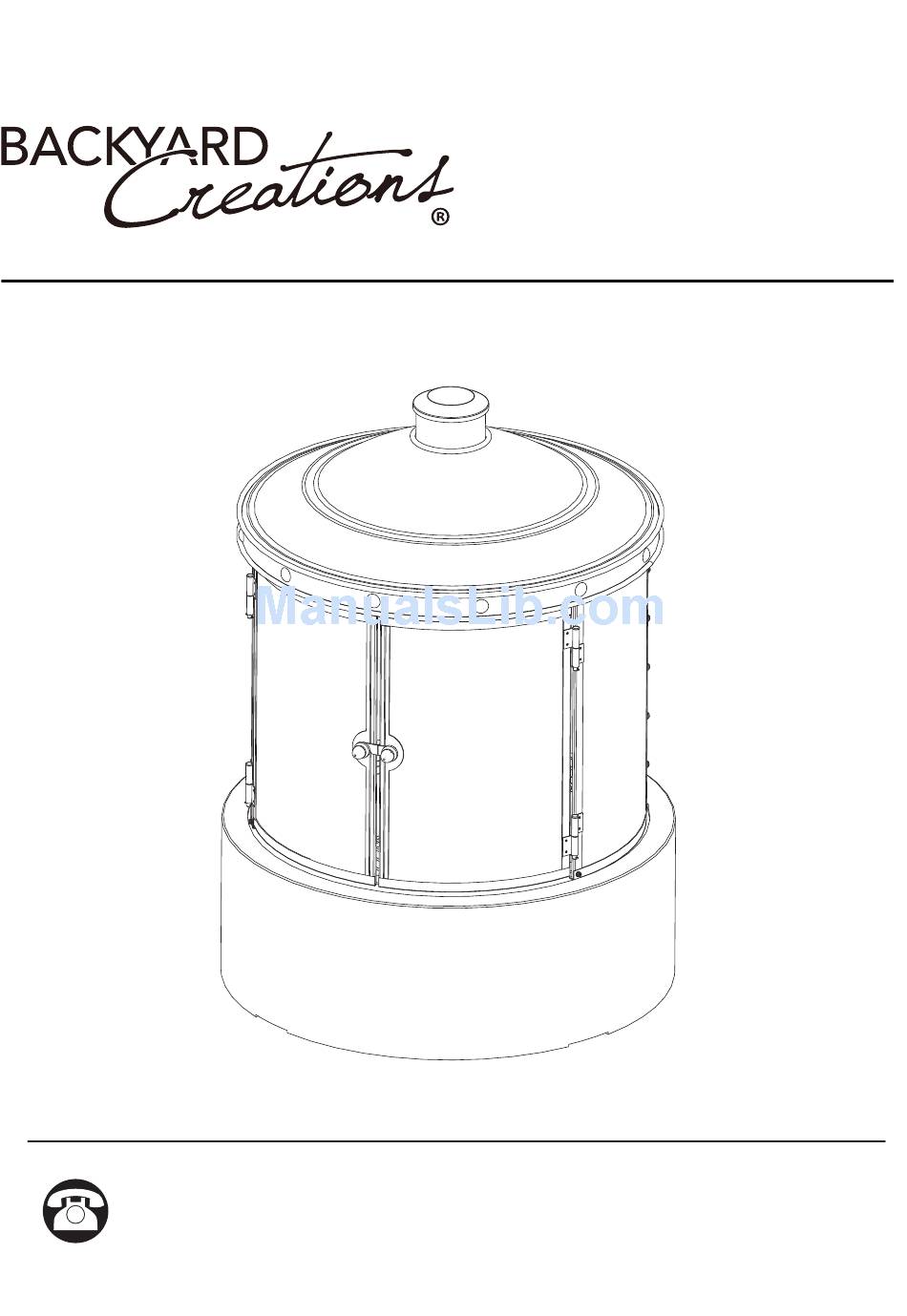

  • Page 1 259-5069 47'' Stone Fireplace Model# SRFP41301 Instructions Manual Questions, problems, missing parts? Before returning to your retailer, call our customer service department at 1-866-814-0585, 8 a.m. - 8 p.m., EST Monday - Friday. Or e-mail: customerservice@shinerichgroup.com.

  • Page 2: Table Of Contents

    Table of Contents Table of Contents................. 1 Warnings.................... 2 Tools Required .................. 4 Parts List .................... 5 Hardware.................... 6 Assembly Instructions................. 7 Care and Maintenance..............14 Warranty Information................ 15 REMINDER BEFORE ASSEMBLY Verify that all parts are included with your fireplace BEFORE you begin assembly by checking the Parts and Hardware List.

  • Page 3: Warnings

    Warnings WARNING For Outdoor Use Only (outside any enclosure) WARNING 1. Improper Installation, adjustment, alteration, service, or maintenance may result in property damage, injury or death. 2. Read the Installation, operation, maintenance instructions thoroughly before installing or servicing this equipment. 3.
  • Page 4 Warnings 14. DO NOT store or use gasoline or other flammable vapors or liquids in the vicinity of this or any other appliance. 15. DO NOT store or use an LP gas cylinder within 10 feet (3.05m) of this fireplace while it is in operation.

  • Page 5: Tools Required

    Tools Required Description (Not included) Picture Phillips Head Screwdriver Adjustable open end wrench...

  • Page 6: Parts List

    Parts List Part # Description Picture Quantity Chimney cap Roof Panel 1 Connecting pole Door spindle Panel 2 Right door Door holder Door knob Hook Charcoal grid Fire bowl Base Left door Panel 3 Panel 4...

  • Page 7: Hardware

    Hardware Hardware # Description Picture Quantity M5 x 35mm Bolt M5 x 16mm Bolt M5 x 12mm Bolt ST5.5 x 13mm Bolt D6 Washer D5 Washer D5 Spring Washer M5 Nut D6 Spring Washer M6 Nut NOTE: Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and hardware contents above.

  • Page 8: Assembly Instructions

    Assembly Instructions NOTE: Assemble the fireplace on a non-abrasive level surface.If missing parts please contact customer service. Step 1 Attach Door knob (J) to Left door (O) with D6 spring washer (II) and M6 nut (JJ). See Figure 1 Hardware Used D6 Spring Washer M6 Nut Step 2...
  • Page 9 Assembly Instructions NOTE: Assemble the fireplace on a non-abrasive level surface.If missing parts please contact customer service. Step 3 Attach Panel 1 (C) and Panel 2 (G) to Connecting pole (D) with (10) ST5.5 x 13mm bolts (DD). (3) M5 x 12mm bolts (CC), (3) D5 spring washers (GG) and (3) M5 nuts (HH).
  • Page 10 Assembly Instructions NOTE: Assemble the fireplace on a non-abrasive level surface.If missing parts please contact customer service. Step 4 Attach Panel 4 (Q) and Panel1 (C) to Connecting pole (D) with (10) ST5.5 x 13mm bolts (DD). (2) M5 x 12mm bolts (CC), (2) D5 spring washers (GG) and (2) M5 nuts (HH).
  • Page 11 Assembly Instructions NOTE: Assemble the fireplace on a non-abrasive level surface.If missing parts please contact customer service. Step 5 Attach Panel 4 (Q) and Panel 3 (P) to Connecting pole (D) with (10) ST5.5 x 13mm bolts (DD), (3) M5 x 12mm bolts (CC), (3) D5 spring washers (GG) and (3) M5 nuts (HH).
  • Page 12 Assembly Instructions NOTE: Assemble the fireplace on a non-abrasive level surface.If missing parts please contact customer service. Step 7 Line up the hole both of panel assembly and Left door (O) then fix them with (2) door spindle (E). Insert the (2) pin (F) into the hole on the door spindles (E). Repeat the same procedure to install the Right door (H).
  • Page 13 Assembly Instructions NOTE: Assemble the fireplace on a non-abrasive level surface.If missing parts please contact customer service. Step 8 Connect decoration Chimney cap (A) to Roof (B) with (3) ST5.5 x 13mm Bolts (DD). See Figure 8 Hardware Used ST5.5 x 13 Bolt Step 9 Connect Roof (B) and panel assembly with (8) M5 x 16mm bolts (BB).
  • Page 14 Assembly Instructions Step 10 Place Charcoal grid (L) on top of Fire bowl (M) followed by Hook (K) and close front doors, then latch door holder. See Figure 10...

  • Page 15: Care And Maintenance

    Care and Maintenance Lighting 1. Make sure there is only a small amount of ash in the bottom of the bowl. 2. Place a layer of dry kindling or a natural fire-starter onto the center of the grate. 3. Place above that a layer of dry seasoned hardwood that is no more than 3/4 the diameter of the bowl. 4.

  • Page 16: Warranty Information

    Warranty Information The appliance has been manufactured under the highest standards of quality and workmanship. We warrant to the original consumer purchaser that all aspects of this product will be free of defects in material and workmanship for one year (1) from the date of purchase. A replacement for any defective part will be supplied free of charge for installation by the consumer.
