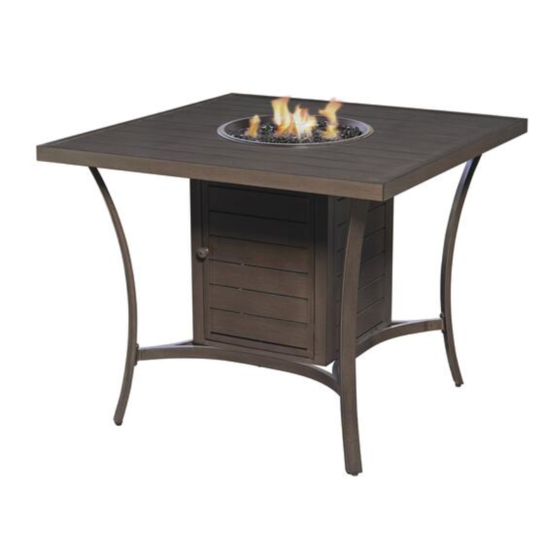

ST. CROIX HD FIREPIT TABLE
ASSEMBLY INSTRUCTIONS
WARNING: It is UNSAFE to use this product
for cooking!
Installer: Leave these instructions with
consumer.
Consumer: Keep these instructions for future
.
reference
WARNING:
Improper installation, adjustment
alteration, service, or maintenance can
cause injury or property damage. Read the
installation, operating, and maintenance
instructions thoroughly before installing or
servicing this equipment.
WARNING
Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
An LP-cylinder not connected for use shall
not be stored in the vicinity of this or any
other appliance.
DANGER
CARBON MONOXIDE HAZARD
This appliance can produce carbon
monoxide which has no odor.
Using it in an enclosed space can kill
you.
Never use this appliance in an enclosed
space such as a camper, tent, car or
home.
Questions, Problems, Missing Parts? Before returning to
your retailer, call our customer service department in the
US and Canada at 1-800-416-3511, Monday-Friday, 9 a.m.
– 5 p.m. Eastern Time.
Jul-01-2020
CSA Model WT17YL SKU: 272-2008
Factory Model: ARW08500K01
DANGER
If you smell gas:
FIRE OR EXPLOSION HAZARD
If you smell gas:
•shut off gas to the appliance.
•Extinguish any open flame.
•if odor continues, leave the area
immediately.
•After leaving the area, call your gas
supplier or fire department.
Failure to follow these instructions could
result in fire or explosion, which could cause
property damage, personal injury, or death.
WARNING:
If the information in this manual is not
followed exactly, a fire or explosion may
result causing property damage, personal
injury, or loss of life.
WARNING：For Outdoor Use Only.
Installation and service must be performed
by a qualified installer, service agency, or
the gas supplier.
FOR USE WITH 9KG (20LB) PROPANE
CYLINDER WITH TYPE 1 CONNECTION OR
FOR USE WITH NATURAL GAS AFTER
CONVERSION KIT IS INSTALLED (MUST BE
PROFESSIONALLY INSTALLED).
WARNING:
USE FACTORY APPROVED
REPLACEMENT PARTS AND
ACCESSORIES ONLY. USE OF
UNAPPROVED PARTS OR
ACCESSORIES CAN VOID THE
WARRANTY ON THIS PRODUCT
AND RESULT IN A HAZARDOUS
CONDITION. PLEASE
CONTACT US FOR
INFORMATION REGARDING
REPLACEMENT HOSES,
THERMOCOUPLES,
ELECTRODES, IGNITION
MODULES, LAVA ROCKS, LOGS,
FIRE ICE, ETC.
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Backyard Creations ST. CROIX HD WT17YL
Summary of Contents for Backyard Creations ST. CROIX HD WT17YL
- Page 1 ST. CROIX HD FIREPIT TABLE ASSEMBLY INSTRUCTIONS CSA Model WT17YL SKU: 272-2008 Factory Model: ARW08500K01 DANGER If you smell gas: FIRE OR EXPLOSION HAZARD If you smell gas: •shut off gas to the appliance. •Extinguish any open flame. •if odor continues, leave the area WARNING: It is UNSAFE to use this product immediately.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Important Safety Information ..............3 Important Information about Propane............4 Specification ..................4 Parts Identification List ..............5-6 Installation ..................6-8 Natural Gas Conversion ..............9-10 Maintenance ..................10 Batteries ....................11 Lighting Instructions ..............11-12 Troubleshooting Guide ................12 Warranty ....................13... -
Page 3: Important Safety Information
IMPORTANT SAFETY INFORMATION The installation must conform with local codes or, in the absence of local codes, with the National Fuel Gas Code, ANSI Z223.1/NFPA 54; International Fuel Gas Code. ; Natural Gas and Propane Installation Code, CSA B149.1; or Propane Storage and Handling Code, B149.2, as applicable. The appliance and its appliance main gas valve must be disconnected from the gas supply piping system during any pressure testing of that system at test pressures in excess of 1/2 psi (3.5kPa). -
Page 4: Important Information About Propane
IMPORTANT SAFETY INFORMATION ABOUT PROPANE (LP) GAS A LP-gas cylinder for use with this appliance must have a capacity of 20 lbs / 9kg. and must be equipped with a Type 1 connector and an OPD (overfill protection device). Figure 1 The LP-gas supply cylinder to be used must be constructed and marked in accordance with the specification for LP-gas cylinders of the U.S. -
Page 5: Parts Identification List
PARTS IDENTIFICATION LIST PART DESCRIPTION PART# CONTROL KNOB FP2329 GAS VALVE FP2330 THERMOCOUPLE FP2331 FLEX CONNECTOR FP2332 ELECTRODE FP2333 IGNITION MODULE FP2334 LP TANK RETAINING KNOB FP0585 LP REGULATOR HOSE FP2250 FOOT CAPS FC0607 PROPANE ORIFICE FP2103 NATURAL GAS ORIFICE FP1919 AIR SHUTTER FP1922... -
Page 6: Installation
FIREPIT TABLE TOP FP3205 SIDE PANEL FP3206 BACK PANEL FP3207 DOOR PANEL FP3208 LEG CONNECTOR FP3209 BRACKET TABLE LEG FP3210 BURNER COVER FP3212 INSTALLATION 1. Carefully unpack all items from the box. Place the base in the final position. There must be a minimum of 24 in / 60.96 cm of clearance from the side of the table top to any combustible walls. - Page 7 3. Attach the leg connector bracket to the firepit base by using four 1/4"x55 mm bolts and Ø6.5x1.0 mm washers as shown in Figure 3. Guide the bolts through the holes in the leg connector bracket, into the pre-drilled holes in the firepit base. Hand tighten only 2-3 turns. Figure 3 4.
- Page 8 6. After making any necessary adjustments to the alignment of the parts, use the hex bolt driver to tighten all bolts. Repeat until all bolts are tight. Do not over tighten. Over tightening may strip bolts. 7. Pour ALL of the media (fire ice or lava rock, not included) into the burner pan. The burner MUST be completely covered to ensure the appliance functions properly and safely.
-
Page 9: Natural Gas Conversion
NATURAL GAS CONVERSION Natural gas conversion must be performed only by your natural gas provider or service company. 1. SHUT OFF THE GAS SUPPLY TO THE UNIT AND ANY NEARBY ELECTRICAL SOURCE OR APPLICANCES 2. Below the burner, carefully disconnect flex connector attached to the orifice holder (see step1). 3. -
Page 10: Maintenance
ALL of the connections. NEVER USE A FLAME TO CHECK FOR GAS LEAKS! Step5 10. Stick the conversion label on the rating plate as shown in Figure 9. Metal Rating Plate SerialNumber : ModelNumber : WT17YL Numéro de série Numéro de modèle ... -
Page 11: Batteries
BATTERIES Make sure the control knob is in the "OFF" position. Unscrew the push button cap on the ignition module located on the control panel to access the battery compartment. The ignition module requires one Alkaline AA size battery (1.5V). The negative (-) end goes in first. See Figure 11. -
Page 12: Troubleshooting Guide
TROUBLESHOOTING GUIDE PROBLEM CAUSE REMEDY Check that the gas tank valve is open. Turn the control knob to “ON” No propane gas at the burner and push the control knob in. Make sure tank has propane gas. Check that the AA battery is installed with the negative (-) end first and has Burner won’t light a charge. -
Page 13: Warranty
ONE-YEAR LIMITED WARRANTY What is Covered Under This Warranty? The item you have purchased is warranted against defects in material and workmanship for the following parts from the date of purchase for the period of warranty as outlined below, but only when the unit is installed and operated in accordance with the instructions in this Owner’s Manual and in compliance with local building and fire codes: Limited 1 Year •...
