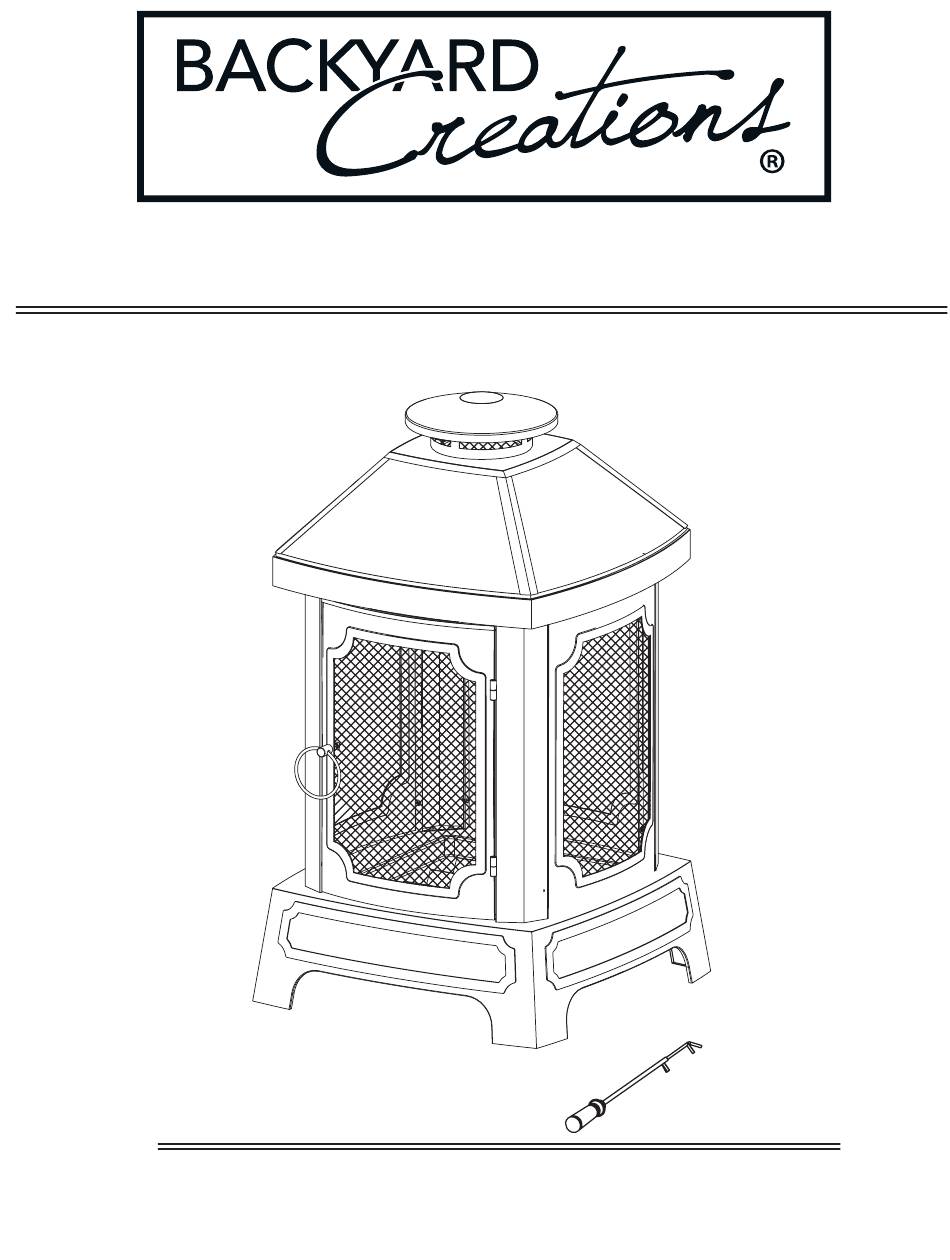

- Page 1 FIRE HOUSE ESTATE Model # OFW871H-M MENARDS SKU # 259-5146 Questions, problems, missing parts? Before returning to your retailer, call our customer service department at 1-877-447-4768, 8:30 a.m.-4:30 p.m., CST, Monday-Friday or email us at customerservice@ghpgroupinc.com. 30-10-143 2017-09-18...
- Page 2 PACKAGE CONTENTS PART DESCRIPTION QUANTITY Chimney Top Cover Back Support Right Front Support Left Front Support Side Mesh Panel Locking Latch Door Door Handle Fire Bowl Bottom Base Poker...
- Page 3 HARDWARE LIST M6x10mm Bolt Qty. 27 SAFETY INFORMATION Please read and understand this entire manual before attempting to assemble, operate or install the product. WARNINGS: • DO NOT allow children or pets near the fire house without supervision. • DO NOT touch surface of fire house while in use. •...
- Page 4 PREPARATION Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and hardware contents above. If any part is missing or damaged, do not attempt to assemble the product. Contact customer service for replacement parts. Estimated Assembly Time: 20 minutes Tools Required for Assembly: Phillips Screwdriver (Not Included) ASSEMBLY INSTRUCTIONS...
- Page 5 ASSEMBLY INSTRUCTIONS 2. Attach the back supports (C), the right front support (D), and the left front support (E) to the bottom base (K) using eight M6 x 10mm bolts (AA). Do not tighten completely at this time. Hardware Used M6x10mm Bolt 3.
- Page 6 ASSEMBLY INSTRUCTIONS 5. Attach the door (H) to the right front support (D). Insert the pins on the door (H) into the corresponding holes on the right front support (D) as shown in figure 5. 6. Attach the chimney (A) to the top cover (B) using two M6 x 10mm bolts (AA) as shown in figure 6.
- Page 7 CARE AND MAINTENANCE • Allow the fire house to cool completely before moving it. • To extend the life of your fire house, clean it after each use. • To protect fire house finish, use a soft cloth to wipe fire house and poker. •...
- Page 8 REPLACEMENT PARTS LIST For replacement parts, call our customer service department at 1-877-447-4768, 8:30 a.m. – 4:30 p.m., CST, Monday – Friday. PART DESCRIPTION PART # Chimney 30-01-167 Top Cover 30-01-168 Back Support 30-01-169 Right Front Support 30-01-170 Left Front Support 30-01-171 Side Mesh Panel 30-01-172...
