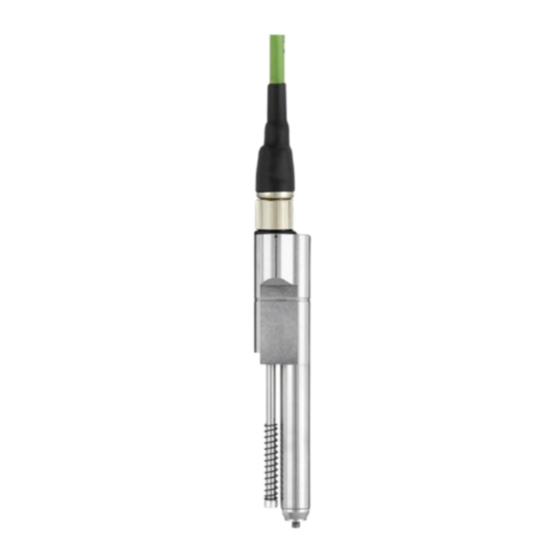

- Page 1 013205EN Operating Instruction Booklet Stationary Screwdriver Spindle 345-308-31 339271 A 345-408-31 345765 A 345-508-31 339271 B 345-608-31 381562 A 345-708-31 385138 A 345-808-31 385138 C MICROMAT...
-
Page 2: Table Of Contents
We kindly ask that you read these operating instructions carefully so that you will be able to use this tool safely and for many years to come. If you need additional information, please contact your DEPRAG Representative, one of our international support offices or us direct at DEPRAG. -
Page 3: Safety Tips
Safety Tips 1.1. General Safety Tips Before operating tool make sure to carefully read and observe this operating instruction. Generally, the operator of the equipment and/or machinery is responsible for the equipment’s perfect condition and operation, while observing all necessary safety regulations. -
Page 4: General Safety Tips For Pneumatic Stationary Screwdriver Spindles
1.2. General Safety Tips for Pneumatic Stationary Screwdriver Spindles · Disconnect the tool from the air supply, when changing bits or when re-adjusting clutch. · Do not wear wide clothing or jewelry, for they can be seized by movable parts. Wear a hairnet if operator has long hair. ·... -
Page 5: Operator Obligation
1.4. Operator Obligation Personnel, who is engaged in the operation of the equipment, must always be committed to · observe the basic safety and accident preventing regulations, · read and observe the safety and warning notifications of this operating instruction booklet. 1.5. -
Page 6: Symbol Description
1.6. Symbol Description Read and observe the Operating Instruction Booklet, prior to and during operation of tool. DANGER Reference to an immediate danger to a person. May lead to serious injuries or even death if unobserved! Properly recycle environmentally damaging grease, cooling agents or detergents. - Page 7 Maintenance and repair on hydraulic and pneumatic equipment may only be performed by specially trained personnel! Disconnect equipment from air supply, prior to repair of pneumatic or hydraulic equipment. Provide regular preventive maintenance on hoses and airlines. Exchange hose lines, even if there is no visible damage! (Observe corresponding requirements of the manufacturer!) After repair and maintenance, check the following items: ·...
-
Page 8: Observe Environmental Regulations
1.7. Observe Environmental Regulations When working on or with the equipment, it is imperative to observe all requirements in regards to waste-disposal and proper recycling. Especially during installation, repair or maintenance, water damaging agents such as · lubricating grease and oil ·... -
Page 9: Installation
The hose length should not exceed 2 meters. · All DEPRAG Screwdrivers may be operated either with or without lubricated air (see paragraph: Maintenance and Upkeep). Best results are achieved, when machine is lubricated with 1 – 2 drops of oil per 1m... - Page 10 OUR RECOMMENDATION: The preferred lubricating method for the screwdriver spindles mounted in fixtures, brackets, machines, etc., each in connection with a controller, is method b) with Point-of-Use Oiler. · Check pressure at directly on the machine. The Regulator needs to be adjusted to an airflow between 5.0 (71 PSI) and 6.3 bar (90 PSI).
-
Page 11: Operation
Operating the clutch using a clutch spring which exceeds its allowable torque, leads to a reduction of the torque accuracy. The necessary torque adjustment can be tested, using a DEPRAG Torque Wrench or Measuring Platform (see DEPRAG catalogs D3020 and D 3022). -
Page 12: Range And Exchange Of Clutch Spring
4.1. Range and Exchange of Clutch Spring The torque range of the DEPRAG Screwdriver is adjustable. Please see a listing for the torque ranges of the color-coded springs below. Torque Range of the individual clutch spring: -Æ OLOR ORQUE ORQUE... -
Page 13: Torque Adjustment
clutch spring adjustment nut lock ring hex of the clutch shaft Picture: Exchange of clutch spring Make sure to screw adjustment (adjusting) nut onto clutch bearing until one line of the thread is visible. 4.2. Torque Adjustment Disconnect driver from air-supply. Unscrew spring sleeve (Optional Equipment) (left hand thread). -
Page 14: Change Of Bits
4.3. Change of Bits ATTENTION Change bits only, if air supply is disconnected and clutch bearing is unscrewed. · Remove spring sleeve 364670 A (left-hand thread) - only necessary if a finder is mounted! · Unscrew clutch bearing about 2,5 mm (3 rotations) (left-hand thread). ·... -
Page 15: Connection-Possibilities Of The Function Control
4.4. Connection-Possibilities of the Function Control Use as air pressure outlet during screw-assembly: · to control driver start and stop, as well as shut-off control of clutch; · as cycle counter of the complete process; each in connection with a PE-Switch or similar This function control is under pressure of appx. -
Page 16: Disassembly - Assembly
After repair or maintenance, verify that equipment runs to specification! Principally, use only DEPRAG original spare parts. Otherwise, a reduction in equipment power-output and an increased maintenance-requirement occurs. If NON-DEPRAG parts are installed, DEPRAG is justified to void any existing warranty and liability obligations. ATTENTION... - Page 17 Press the two ball bearings from the bearing covers. IMPORTANT Minimum vanes width should be 3 mm. Assembly: Use the DEPRAG Grease 807293 (100-g tube) to grease the ball bearing, needle bearing and gearing parts prior to reassembly. a. Clean rotor.
-
Page 18: Service Tools (Optional Equipment)
5.1. Service Tools (Optional Equipment) Chucking jaws (to clamp motor housing) 461500 Fixing device (for rotor cylinder) 461501 Arbor (to disassemble bearing cover with grooved rotary joint) 462329 Fixture (for motor housing) 462942 Spanner AF 8 (for slide connector 821431) 800399 Spanner AF 17 (for threaded fitting 324974) 800405... -
Page 19: Spare Part Drawings
5.2. Spare Part Drawings... - Page 22 -------------------------------------------------------------------------------------------------------------...
- Page 23 ------------------------------------------------------------------------------------------------------- -------------------------------------------------------------------------------------------------------...
- Page 24 ---------------------------------------------------------------------------------------------------------- ----------------------------------------------------------------------------------------------------------...
- Page 25 ------------------------------------------------------------------------------------------------------------- -------------------------------------------------------------------------------------------------------------...
-
Page 26: Installation Tips For Screwdriver Spindle
5.3. Installation Tips for Screwdriver Spindle... -
Page 29: Maintenance And Upkeep
6 months (single shift). · Exchange broken or worn inserting tools immediately, for they can cause injury to the Operator. · If tool malfunctions, we recommend to send the machine to DEPRAG. 6.1. Wear Parts UANTITY... -
Page 30: Trouble Shooting
Maintain air pressure of 90 PSI shut-off or for required torque ratchets value Valve Pin is too long Check length of valve pin, either shorten or replace valve pin (picture: Actual Size of Valve Pin) If necessary, please send tool to DEPRAG for service. -
Page 31: Delivery Capacity
Verify the actual size only with compressed air connected! Delivery Capacity Please check the delivery capacity in regards to its completeness. UANTITY Operating Instruction Booklet 013205EN Screwdriver spindle 339271 A/B; 345765 A; 381562 A; 385138 A/C Ring spanner AF 6 805492 Spanner AF 11 805491... -
Page 32: Accessories - Optional Equipment
· Insert finder into the spring sleeve, place pressure spring into finder and tighten all items to the clutch bearing (left-hand thread). INFORMATION You will find suitable inserting tools · in our brochure D 3320 E or · on the internet as follows: ® Screwdriving www.deprag.com Technology® Selection program: Inserting tools... -
Page 33: Storage
A complete exhaust connection # 334615 C is available as an optional item. Please mount the exhaust connection as follows: Disconnect the screwdriver from the air supply. Use motor housing to clamp the screwdriver spindle into a vice by means of the chucking jaws 461500. Unscrew the quick release nipple and take off the seal ring and one silencer. -
Page 34: Technical Data
11 Technical Data Manufacturer DEPRAG SCHULZ GMBH u. CO. Address Kurfürstenring 12 - 18 P.O. Box 1352 D-92224 Amberg D-92203 Amberg Phone 09621/371-0 09621/371-120 Technical Data: 345-308-31 345-408-31 345-508-31 345-608-31 339271 A 345765 A 339271 B 381562 A Direction of rotation right rotation, right shut-off Torque min. -
Page 35: Disposal
345-708-31 345-808-31 385138 A 385138 C Direction of rotation right-rotation, right shut-off Torque min. (Ncm/in.oz) 2 / 3 Torque max., 70 / 97 soft pull-up (Ncm/in.oz) Torque max., 70 / 97 hard pull-up (Ncm/in.oz) Speed, unloaded (rpm) Air Consumption 0.1 / 3.5 (m³/min / cfm) Weight (kg/lbs) 0.26 / 0.57... -
Page 36: Declaration Of Manufacturer
13 Declaration of Manufacturer EC-Declaration of Manufacturer in accordance with the CE-Machine-Guideline 98/37/EC, appendix II B DEPRAG SCHULZ GMBH u. CO. Kurfürstenring 12 – 18 Postfach 1352 D-92204 Amberg D-92203 Amberg declares, that the construction of the screwdriver spindle 345-308-31... -
Page 37: Service Locations And Authorized Partners
14 Service Locations and Authorized Partners ALGERIA CZECHIA/SLOWAKIA GREAT BRITAIN EP-Technology Trading S.U.A.R.L. DEPRAG CZ a.s. DEPRAG Ltd. 29 Rue Ahmed Tlili - ZI Borj Cedria ul. T.G. Masaryka 113 Unit B4, Pegasus Court TN-2055 Bir el Bey Tunis - Tunisia CZ -50781 Lázně... - Page 38 Shipping and courier deliveries: Fax: +32 9342 0678 Fax: +1 / 972 / 221 – 8163 12 Wrench Road Internet: http://www.awp-p.com ISANDO Toll Free: (800) 4 DEPRAG e-mail: willems@awp-p.com Internet: http://www.deprag.com 1601 e-mail: deprag@depragusa.com Republic of South Africa Postal deliveries: VENEZUELA P.O.
- Page 40 DEPRAG SCHULZ GMBH u. CO. Postfach 1352, D-92203 Amberg Kurfürstenring 12-18, D-92224 Amberg (09621) 371-0 (09621) 371-120 Internet: http://www.deprag.com e-mail: info@deprag.de...
