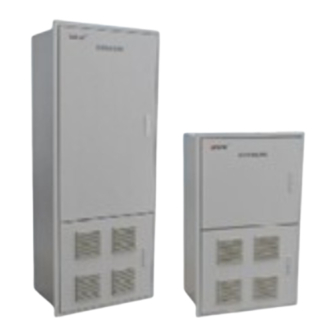

The GGF series Isolation Power Cabinet
Installation and Operation Manual V1.3
Acrel Co., Ltd.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GGF Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Acrel GGF Series

  • Page 1 The GGF series Isolation Power Cabinet Installation and Operation Manual V1.3 Acrel Co., Ltd.
  • Page 2 Declaration Please read this instruction carefully before using this product. All pictures, logos and symbols involved are owned by Acrel Co., Ltd. All or part of the content shall not be reproduced publicly without written authorization by non-company personnel. Please read the instructions and precautions in this operation manual carefully before using this series of products.
  • Page 3 Modified Records Time Versions Reasons for revision 2012.05.24 V1.0 Primary version 2014.08.12 V1.1 Correct errors and omissions 2018.10.15 V1.2 Modify some contents Change format, add content, add English 2022.12.08 V1.3 version Notes:...
  • Page 4: Table Of Contents

    Contens 1 Introduction ......................1 2 Product model ..................... 1 3 Function Features ....................1 4 Technical Parameters ..................2 5 Installation and wiring ..................3 5.1 Overall Dimensions ..................3 5.2 Installation Method ..................5 5.3 Connection Methods..................7 5.4 Matters Need Attention ................
  • Page 5: Introduction

    3 Function Features ● The GGF series isolated power cabinet can use a variety of cabinet body, the cabinet body is made of Q235A high quality cold rolled steel plate, stable structure is not easy to deformation;...
  • Page 6: Technical Parameters

    ● The GGF series isolation power cabinet has a high level of protection, the heat dissipation part has dustproof measures to meet the requirements of protection level; ● The GGF series isolation power cabinet generally adopts the upper and lower wiring mode. The internal wiring is complete.
  • Page 7: Installation And Wiring

    5 Installation and Wiring 5.1 Overall Dimensions The appearance dimensions of various standard GGF series isolated power cabinets are shown in the following figure (unit: mm): GGF-IXG series GGF-IXQ series GGF-IXF series GGF-OXGA/GGF-OXG series GGF-OXQ series GGF-OXF series 3 / 11...
  • Page 8 The internal layout and component configuration of GGF series power cabinet are designed according to the actual project site. The following takes GGF-OXGA as an example, and its internal layout is shown in the figure below (unit: mm): Front view...
  • Page 9: Installation Method

    The GGF series isolation power cabinet floor cabinet should be installed against the wall, with fans on both sides reserved for effective cooling operation space; The embedded cabinet should be installed vertically, with space reserved on the front;...
  • Page 10 The AID series external alarm display instrument usually adopts embedded installation, installation method is as follows: 2.Size of wall 3.Insert the shell 1.Product shape openings into the wall Attention: Acrel AID150 As our products are constantly Comm Error Alarm updated, this TEST drawing is for...
  • Page 11: Connection Methods

    5.3 Connection Methods The GGF series isolation power cabinet has flexible configuration and needs to be configured according to the actual project site. The attached accessories of the cabinet include primary system diagram and wiring schematic diagram. Typical primary system diagram is shown as the figure below:...
  • Page 12: Matters Need Attention

    If the meters are damaged or have other problems, contact the manufacturer. Matters Need Attention 5.4.1 When installing GGF series isolation power cabinet, it is necessary to strictly abide by the national electrical operation rules. No live operation is allowed. Please ask professional electrician to install, otherwise there may be electric shock accident.
  • Page 13: Operation And Usage

    A and switch on power supply B quickly to ensure continuous power supply. The GGF series isolation power cabinet is connected to the input line with the normal rated voltage, and the load switch, residual current protector, circuit breaker and other components can be switched off in turn.
  • Page 14 Operation Room Isolation C65H ICB 16A/2P Wall socket1 (special for surgery) Power Cabinet C65H ICB 16A/2P Wall socket2 (special for surgery) C65H ICB 16A/2P Medical isolation transformer Wall socket3 (special for surgery) AC220V/AC220V 8kVA Current Transformer C65H ICB 16A/2P Wall socket4 (special for surgery) C65 ICB 40A/2P AKH-0.66P26 C65H ICB 20A/2P...
  • Page 15: Application Environment

    3) The elevation of the installation site shall not exceed 2000m. Attached Information The GGF series isolation power cabinet should be delivered with the following documents: a) Plastic-sealed Isolation Power Cabinet - Customer Wiring Instructions, including primary system diagram, wiring terminal description and manual QR code;...
