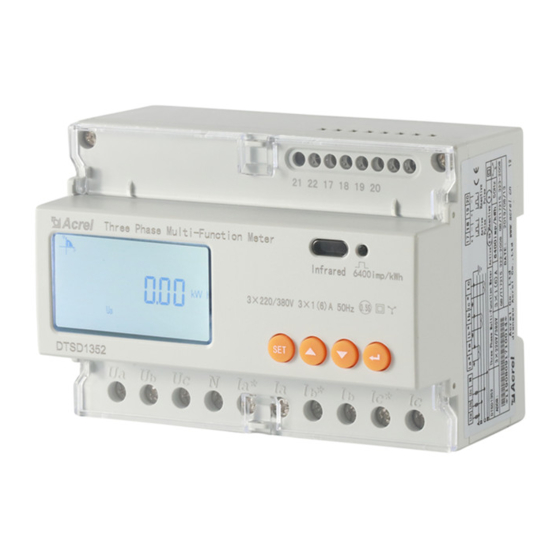

- Page 1 DTSD1352 安装使用说明书 V2.0（阳光电源定制） Installation and operation instruction V2.0 ACREL Co.,Ltd...
- Page 2 申明 Declare 版权所有，未经本公司之书面许可，此手册中任何段落、章节内 容均不得摘抄、拷贝或以任何形式复制、传播，否则一切后果由违者 自负。 本公司保留一切法律权利。 The copyright is the property of Acrel. Any information in any paragraph or section cannot be extracted, copied or otherwise reproduced or propagated. Otherwise offenders shall take all consequences. All rights are reserved. 本公司保留对本手册所描述之产品规格进行修改的权利， 恕不另...
- Page 3 目录 Content 1 概述 General ..........................1 2 型号说明 Type description ...................... 1 3 产品功能 Function description ....................1 4 技术参数 Technical parameter ....................3 5 外形尺寸 Dimension drawings ....................4 6 接线与安装 Wiring and installing ..................4 7 主要功能特点 Function description ..................6 8 操作与显示...
- Page 4 It is fitted with RS485 communication port and adapted to MODBUS-RTU. DTSD1352 can be used in all kinds of control systems, SCADA systems and meet the related technical requirements of electronic energy management systems.
- Page 5 Measurement of ■ electrical parameters 谐波测量 2~31 次谐波电压电流 □注 Note 1 Measurement of 2~31 Voltage and current harmonic LCD 显示 8 位段式 LCD 显示、背光显示 ■ 8 bits section LCD display, background light LCD Display 按键编程 4 按键可编程通信、变比等参数 ■ Key programming 4 keys to communication and set parameters 有功脉冲输出...
- Page 6 measurement “■”表示标配, “□”表示选配 “■” means standard, “□” means optional 注：1：外置互感器规格时，谐波测量为标配，其余规格均为选配。 2：默认无功脉冲、时钟脉冲、开关量输出三选一； 3：有源开关量和第二路通讯二选一； 4：选配测温功能时 1、2 所述选配功能均不可选。 Note: is a standard while choosing outlay transformer, optional for other situation. Harmonic 2: Reactive pulse output, clock pulse output and switching output: Choose one of these three.
- Page 7 脉冲常数 6400imp/kWh,400imp/kWh（与基本电流对应）(Correspond Pulse constant with the basic current) 接口与通信规约 RS485：Modbus RTU Interface and communication 通信地址范围 Range of communication Modbus RTU:1~ 255； address 波特率 Baud rate 1200bps~19200bps 工作温度 -30℃~+60℃ Operation temperature 存储温度 -30℃~+70℃ Storage temperature 相对湿度 ≤95%（无凝露）(No condensation) Relative humidity 5 外形尺寸 Dimension drawings 图...
- Page 8 图 3 三相四线直接接入 Fig 3 Three phase four lines direct connect 图 4 三相三线经互感器接入 Fig 4 Three phase three lines connect via CT 图 5 三相三线直接接入 Fig 5 Three phase three lines direct connect 6.2 开关量输入、输出、NTC 测温端子 Switching input, output, NTC temperature measurement. TP+ TP- Eq+ Eq- 有功电能脉冲...
- Page 9 DI1 COM1 DO1+ DO1- 开关量输入 开关量输出 2路通讯 图 7 通讯、开关量接线 Fig 7 Communication, pulse connection T3 COM 图 8 外置 NTC 测温 Fig 8 Outlay NTC temperature measurement 开关量输出为继电器输出，可实现“遥控”和报警输出。 开关量输入是采用开关信号输入方式，由外部电源供电。当外部接通或断开时，经过仪 表开关输入模块采集其接通或断开信息并通过仪表本地显示。 开关量输入不仅能够采集和显 示本地的开关信息，同时可以通过仪表的 RS485 实现远程传输功能，即“遥信”功能。 Switching output is relay output, can achieve the remote-control and alarm output. The switch input adapts the method of on-off signal input and powered by outer power supply.
- Page 10 The meter can measure all electrical parameters such as voltage, current, active power, reactive power, apparent power, power factor, frequency, 31 harmonic and total harmonic. The value format of voltage, current, frequency and power are listed as below. Example: U = 220.1V，f = 49.98Hz, I = 1.99A，P = 0.439kW 7.2 计量功能...
- Page 11 报警输出。开关量输入不仅能够采集和显示本地的开关信息，同时可以通过仪表的 RS485 实现远程传输功能，即“遥信”功能。 The switch input adapts the method of on-off signal input and powered by outer power supply. It can be gotten by meter when there is a change of on or off via a switching input module. The parameter of switching input can not only get and show the state of local switching information but also achieve the communication via RS485, which called “remote information”...
- Page 12 类的分时电能（即尖、峰、平、谷四种费率时段的电能）。 Note: 1 All the display menus above are in the model of DTSD1352 three phases four lines with multi-tariff rate function and can be changed by the keys. 2 There will not be power or power factor on each phase and will only show total power and power factor (Active, reactive, apparent) under the three phase three lines.
- Page 13 当前正向无功总电量 12.34kvarh 当前正向有功尖电量 12.34kWh Current forward reactive energy 12.34kWh Current forward active energy 12.34kWh 当前总功率 1.234kW 当前正向有功需量 1.234kW Current power is 1.234kW Current forward active demand is 1.234kW 当前 A 相电压为 123.4V 当前 A 相电流为 12.34A Voltage on A phase is 123.4V Current on A phase is 12.34A...
- Page 14 当前 T1 温度为 25.5 摄氏度 当前 T2 温度为 25.5 摄氏度 Temperature on T1 is 25.5 cent degree Temperature on T2 is 25.5 cent degree 当前 T3 温度为 25.5 摄氏度 Temperature on T3 is 25.5 cent degree 注：以上只是显示界面的一部分，其他界面显示模式与上图类似，可根据界面中显示的信息 来判断显示含义。 Note: There are parts of the display function, and other menus are familiar with the example above. The customers can understand the meaning refer to the above examples.
- Page 15 in “no” interface. without save by pressing 8.4 可设置数据项 Data settings 序号 一级菜单 First menu 二级菜单 Second menu 符号 Symbol 含义 Mean 符号 Symbol 含义 Mean 范围 Range 通讯地址设置 ADDR 1-247 Address setting 通讯设置 波特率选择 19200、9600、 Communicati Buad Baud rate 4800、2400、1200 on settings 校验选择...
- Page 16 The meter needs shielded twisted pair conductors to connect. Customers should consider the whole network’s parameters such like communication wire’s length, the direction, communication transformer and network cover range, etc. 注： 在布线工程上要严格按要求施工； 对于暂时不需要通信的仪表都要将他们连接到 RS-485 网络上，以便于诊断和测试； 进行 RS-485 电缆连接时，尽量使用双色双绞线，所有的 485 通信口“A”端接同一种颜色， “B”端接另一种颜色。...
- Page 17 electric energy 当前正向有功峰电能 Current forward active peak electric 000EH energy 当前正向有功平电能 Current forward active flat electric 0010H energy 当前正向有功谷电能 0012H Current forward active valley electric energy 当前反向有功总电能 0014H Current reversing active total electric energy 当前反向有功尖电能 0016H Current reversing active spike electric energy 当前反向有功峰电能...
- Page 18 Current total reactive peak electric energy 当前总无功平电能 0024H Current total reactive flat electric energy 当前总无功谷电能 0026H Current total reactive valley electric energy 当前正向无功总电能 0028H Current forward reactive total electric energy 当前正向无功尖电能 002AH Current forward reactive spike electric energy 当前正向无功峰电能 002CH Current forward reactive...
- Page 19 日期时间 Date， time 003CH 第一路通讯通信地址 003FH 高字节 1～247 First communication path：Address 1：9600pbs 第一路通讯波特率 2：4800pbs 003FH 低字节 First communication path：Baud rate 3：2400pbs 4：1200pbs 脉冲常数 Pulse constant 0040H 0041H 时区表 4个时区 … 3×4 4 time zones Time zone table 0046H 1-8时段参数设置信息 0047H 第一套时段表...
- Page 20 Voltage between C-B A- C 线电压 007AH Voltage between A-C 正向有功最大需量 007BH Forward active maximum demand 发生时间 007CH Time of occurrence for the forward active maximum amount 反向有功最大需量 007EH Reversing active maximum demand 发生时间 007FH Time of occurrence for the reversing active maximum amount 正向无功最大需量...
- Page 21 电流变比 CT 008EH Current transfer 失压阈值 008FH 高字节 Threshold of voltage 失压状态 008FH 低字节 State of loss voltage 保留 Reserve 0090H 运行状态 1 0091H 高字节 Running state 1 运行状态 2 0091H 低字节 Running state 2 零序电流 0092H Zero sequence current 电压不平衡度...
- Page 22 波特率 Baud rate （低 8 位 Low 8 bytes） 第 二 路 通 讯 Second communication path： 同第一路通讯设置 0097H 校验位 Testing byte（高 8 位 High 8 Same as the first bytes） communication path 停止位 Stop byte（低 8 位 Low 8 bytes） 保留...
- Page 23 016EH B 相无功功率 Reactive power of B phase 0170H C 相无功功率 Reactive power of C phase 0172H 总无功功率 Total reactive power 0174H A 相视在功率 Apparent power of A phase 0176H B 相视在功率 Apparent power of b phase 0178H C 相视在功率 Apparent power of c phase 017AH 总视在功率...
- Page 24 Maximum forward active demand last 发生时间：分、时 0189H Occur time 上 1 日反向有功最大需量 018AH Maximum reversing active demand last 发生时间：分、时 018BH Occur time 上 1 日正向无功最大需量 018CH Maximum forward reactive demand last 发生时间：分、时 018DH Occur time 上 1 日反向无功最大需量 018EH Maximum reversing reactive demand last day 发生时间：分、时...
- Page 25 发生时间：分、时 0197H Occur time 当前正向有功需量 0198H Current forward active demand 当前反向有功需量 0199H Current reversing active demand 当前正向无功需量 019AH Current forward reactive demand 当前反向无功需量 019BH Current reversing reactive demand 019BH-01FFH 保留 Reserved A 相电压极大值 0200H Maximum voltage on A phase 发生时间：月、日 0201H Occur date 发生时间：时、分...
- Page 26 Maximum active power on C phase and occur time 总有功功率极大值及发生时间 021EH Maximum active power and occur time A 相无功功率极大值及发生时间 0222H Maximum reactive power on A phase and occur time B 相无功功率极大值及发生时间 0226H Maximum reactive power on B phase and occur time C 相无功功率极大值及发生时间...
- Page 27 T1 温度 T1 temperature 2001H T2 温度 T2 temperature 2002H T3 温度 T3 temperature 9.2 历史电能冻结时间设定及历史电能数据 Historical energy frozen time setting and historical energy data DTSD1352 日冻结时间设定寄存器、月冻结日期设定寄存器。 DTSD1352’s registers on frozen by day and by month. 地址 名称 Name 备注 Note Address...
- Page 28 能（各费率电能）。历史电能只能通过块读取，长度为 120 个字节(60 个寄存器)，每块的顺 序和内容如下： DTSD1352 can achieve the history energy statistic in last 48 months and last 90days. (Each tariff rate of energy can be recorded.)The history energy record can only be read by assemblage and the length of whole part is 120 byte (60 registers), and list below is the registers’ name: 地址...
- Page 29 正向总无功电能 0016H Total forward reactive energy 正向无功尖电能 0018H Spike forward reactive energy 正向无功峰电能 001AH Peak forward reactive energy 正向无功平电能 001CH Flat forward reactive energy 正向无功谷电能 001EH Valley forward reactive energy 反向总无功电能 0020H Total reversing reactive energy 反向无功尖电能 0022H Spike reversing reactive energy 反向无功峰电能...
- Page 30 9.3 分次谐波数据 Harmonic data DTSD1352 可选配谐波测量，统计分相 31 次谐波电压电流、总谐波畸变率、分相谐波 电压电流、分相谐波有功功率无功功率、分相基波电流电压、分相基波有功功率无功功率。 DTSD1352 has function of harmonic. The function include 31 harmonic statistics of voltage and current, harmonic voltage and current of each phase apparently, harmonic active/reactive power of each phase apparently, fundamental voltage and current of each phase apparently and fundamental active/reactive power of each phase apparently.
- Page 31 整形,保留 2 位小数 Keep 2 decimal places A 相基波电压 0697H Fundamental voltage on A phase B 相基波电压 0698H Fundamental voltage on B phase C 相基波电压 整形，保留 1 位小数 0699H Fundamental voltage on C phase A 相谐波电压 Keep 1 decimal places 069AH Harmonic voltage on A phase B 相谐波电压...
- Page 32 phase C 相基波无功功率 06A9H Fundamental reactive power on C phase 总基波无功功率 06AAH Fundamental reactive power A 相谐波有功功率 06ABH Harmonic active power on A phase B 相谐波有功功率 06ACH Harmonic active power on B phase C 相谐波有功功率 06ADH Harmonic active power on C phase 总谐波有功功率...
- Page 33 Power on/off 当前电能清零 0001 Clear current energy Flash 历史电能清零 0002 Clear history energy on Flash 最大需量清零 0003 清零事件 Clear maximum demand 0200 历史电能清零 Clear 0004 Clear history energy 极值清零 0005 Clear maximum value on a period 全清零 0006 Clear out DO 断开...
- Page 34 80 23 10 铭牌与包装 Nameplate & Packaging 电表的铭牌需要包含阳光电源 logo 、CE 标志 、RCM 标志 、“Made In China”标志。通信地址 ADDR：254。 The nameplate must contain SUNGROW logo , CE mark of conformity , RCM mark of conformity , and communication address ADDR: 254. DTSD1352-C/1(6)A...
- Page 35 "DTSD1352-C-QIMUL-VerXX", corresponding to the SUNGROW material code M-H-001423. Print instructions: (1) Dimensions: 100× 150 mm (2) Material: Sanshan matte paper, four-color printing (3) Features: Color printing, saddle stitching (4) Never print any text on the back of the cover (2P in total) 、“SUNGROW POWER...
- Page 37 总部：安科瑞电气股份有限公司 地址：上海市嘉定区育绿路 253 号 电话：(86)021-69158300 69158301 69158302 传真：(86)021-69158303 服务热线：800-820-6632 网址：www.acrel.cn 邮箱：ACREL001@vip.163.com 邮编：201801 生产基地：江苏安科瑞电器制造有限公司 地址：江阴市南闸街道东盟路 5 号 电话(传真)：(86)0510-86179970 邮箱：JY-ACREL001@vip.163.com 邮编：214405...
