Operating instructions

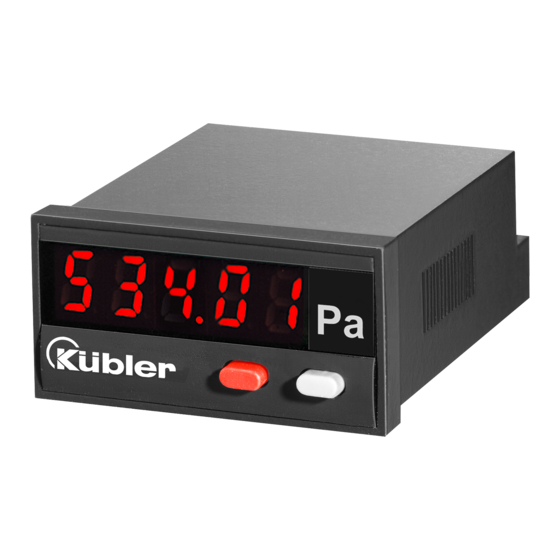

Digital display with analog inputs
Codix 534
Order code: 6.534.012.300
1.1 Safety instructions and warnings
Use this display only
– in compliance with its intended
!
purpose
– if its technical condition is perfect
– in accordance with the operating
instructions and the general safety
provisions.
1.2 General safety instructions and
warnings
1. Before carrying out installation or main-
tenance work, make sure that the device is
disconnected from the power supply.
2. Use this digital display only in compliance
with its intended purpose: if its technical
condition is perfect and in accordance with
the operating instructions and the general
safety provisions.
3. Comply with the country and applicati-
on-specific provisions
4. This digital display is not suitable for use
in areas with explosion protection and for
areas excluded in EN 61010 part 1.
5. This digital display must only be operated
when properly mounted in a panel in accor-
dance with the section "Technical Data".
6. The device must compulsorily be protected
with approved external fuses. The value of
these fuses can be found in the technical
information.
1.3 Use according to the intended purpose
This digital display may only be operated as a
built-in device. The application area for this
display device lies in industrial processes and
controls, in the fields of manufacturing lines for
the metal, wood, plastics, paper, glass, textile
and other like industries. Over-voltages at the
terminals of the device must be kept within the
limits of Over-voltage Category II. If the digital
display is used to monitor machines or pro-
cesses in which, in the event of a failure of the
display or an error made by the operator, there
Page 1 (R60046.0009 - Index 1)
(R60046.0009 - Index 1)
might be the risk of damaging the machine or
causing an accident to the operators, it is your
responsibility to take the appropriate safety
measures.
1.4 Description
• Digital 5-digit display with analog inputs
• Easily readable, bright 8 mm high LED
display
• Display range from -19999 to 99 999 with
leading zero blanking and programmable
decimal point
• The functions and operating parameters are
programmed by means of the two setting
keys.
Operator guidance on the display during the
programming routine
• The following parameters are programmable:
Measuring range
Measuring time
Decimal point measured value
Minimum input signal
Value to be displayed for the
lowest input signal
Maximum input signal
Value to be displayed for the
highest input signal
Minimum value display yes/no
Minimum value reset
Maximum value display yes/no
Maximum value reset
Totalizer yes/no
Decimal point totalizer
Multiplication factor totalizer
Scaling totalizer
Totalizer reset

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 534 and is the answer not in the manual?

Questions and answers

Summary of Contents for Kübler 534

  • Page 1 Operating instructions (R60046.0009 - Index 1) Digital display with analog inputs Codix 534 Order code: 6.534.012.300 might be the risk of damaging the machine or 1.1 Safety instructions and warnings causing an accident to the operators, it is your Use this display only responsibility to take the appropriate safety –...
  • Page 2: Setting Of The Operating Parameters

    2. Inputs 3. Setting of the operating parameters Latch/Reset (Terminal 4) 3.1 Selection of the displayed value and Static input for display storage. If it is activated reset of the minimum, maximum values (pnp) with a 4…30 V DC input signal, the cur- and of the totalizer rent measuring value is retained on the display until this input is released or its signal level...
  • Page 3 left key and then set the value with the 4.3 Decimal point setting right key. The decimal point defines the To switch to the next menu item, keep the number of displayed decimal left key depressed and press the right key places for the current mea- Selecting "Yes"...
  • Page 4 4.6 Maximum input signal 4.9 Minimum value reset This menu item allows exten- ding or reducing the measu- Manual reset (with red key) ring range. and electrical reset. When activated, the RESET input If the input signal exceeds the value program- and the RESET key reset the med here for the measuring range minimum value to the current...
  • Page 5 Electrical reset only. 4.13 Totalizer decimal point setting When activated, the RESET As for the current measured value, the input resets the maximum decimal point for the display can also be pro- value to the current measu- grammed for the sum (totalizer value). This red value.
  • Page 6: Terminal Assignment

    Electrical reset only. The 4.15 Scaling reset key is disabled. The Scaling allows extending the display range Latch/Reset input operates for the totalizer or reducing it for a very fine as a RESET input. When setting. actuated, it sets the totalizer to 0.
  • Page 7: Technical Data Display

    Err 4** Analog input signal exceeds the 6. Technical data valid measuring range Display: 5-digit 7-segment LED Err 5* Error/failure in FRAM. Device null display, height 8 mm balancing not performed Measuring ranges: 0…10 VDC Please send device back for inspection 2…10 VDC Check input signal and programming 0…20 mA DC...
  • Page 8 8.2 Filling level measurement 8.4 Filling level measurement with limit A filling level sensor with linear characteristics value display (in case of non-linear sensors, install linea- In this third case too, the available quantity rizing components upstream) delivers 4 mA must be displayed ;...
  • Page 9 8.5 Weight measurement with totalizing 8.6 Flow measurement with totalizing The quantity of granulate is to be determined The flowing quantity and the totalized quantity by means of flow measurement. At full flow are to be displayed alternately. The measuring rate (= 10 kg/sec.), the measuring sensor sensor with linear characteristics (in case delivers 20 mA...
