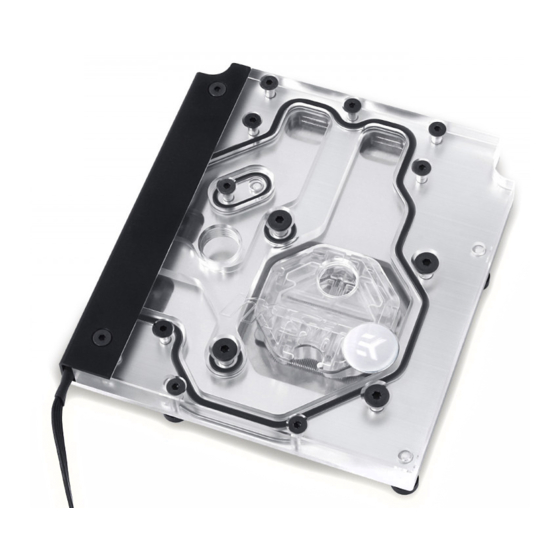

ekwb EK-FB MSI Z270 GAMING Monoblock Installation And Mounting Manual

Installation and mounting manual for EK-FB MSI Z270 GAMING
This product is intended for installation only by expert users. Please consult with a qualified technician for installation. Improper installation may result in damage to your equipment. EK Water Blocks assumes no liability
whatsoever, expressed or implied, for the use of these products, nor their installation. The following instructions are subject to change without notice. Please visit our web site at
installation of this product please read important notice, disclosure and warranty conditions printed on the back of the box.
Before you start using this product please follow these basic guidelines:
1. Please carefully read the manual before through before beginning with the installation process!
2. Please remove your motherboard from the computer to assure safest mounting process in order to prevent any possible damages to your CPU and/or motherboard's circuit board (PCB).
3. The EK-HFB and EK-ACF type fittings require only a small amount of force to screw them firmly in place since the liquid seal is ensured by the rubber o-ring gaskets.
4. The use of quality, market proved corrosion inhibiting coolants is always strongly recommended for any liquid cooling system.

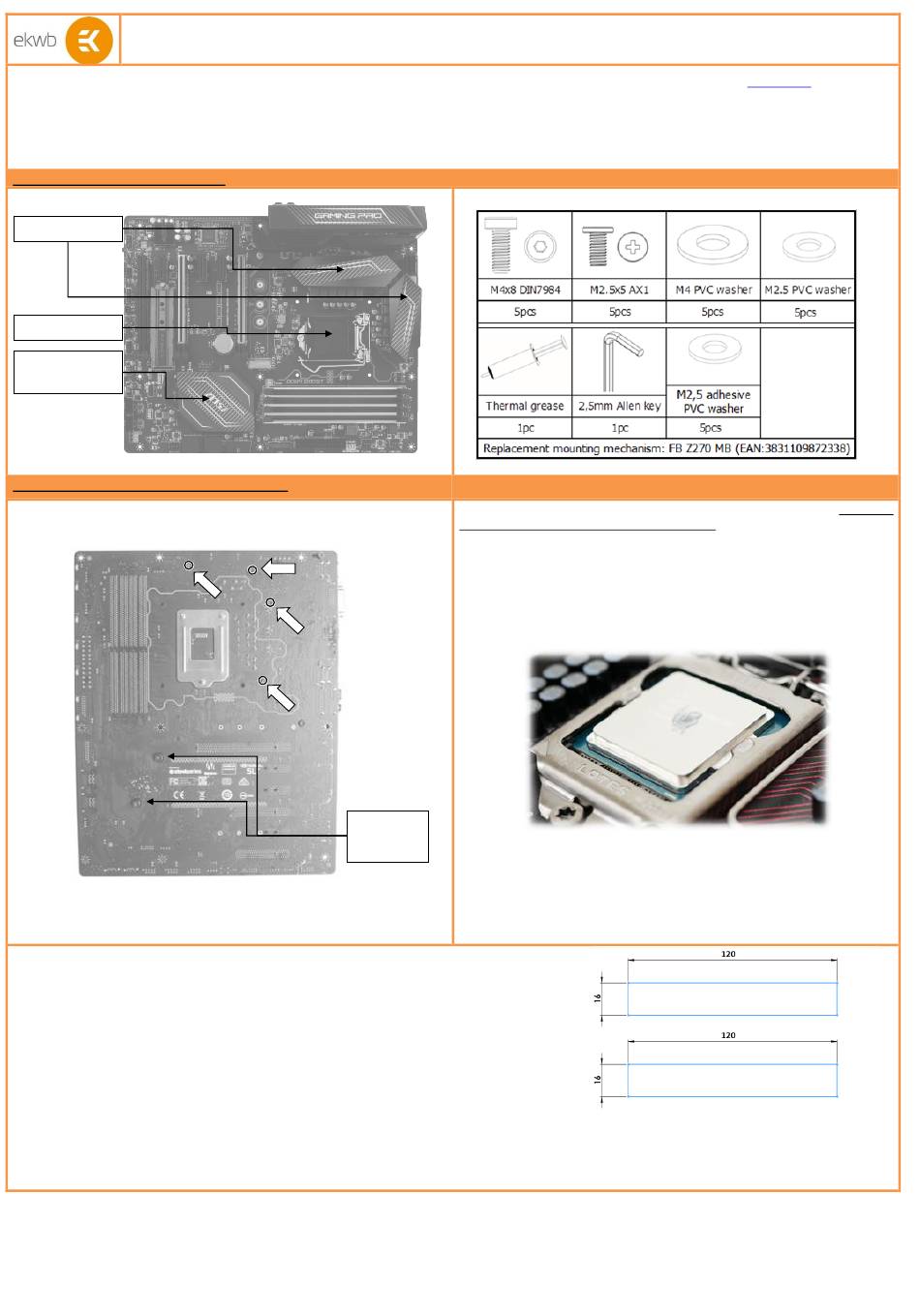

STEP 1: GENERAL INFORMATION Sample photo of MSI Z270 GAMING PRO CARBON motherboard
Mosfet heatsink
CPU socket
Z170 PCH (SB)
heatsink
STEP 2: PREPARING YOUR MOTHERBOARD
1. REMOVING STOCK COOLER.
on the back of the motherboard that need to be removed in order to remove the
factory installed MOSFET cooling solution.
3. CUTTING THERMAL PADS.
Your block comes with thermal pads which needs to be trimmed in order to fit
the voltage regulation area (MOSFET) on the motherboard's circuit board. WARNING: DIMENSIONS ON
PICTURES BELOW ARE SCALED.
Replacement thermal pads @ EKWB web shop:
Thermal PAD F 1mm - (120x16mm) [EAN: 3830046996732]
Thermal PAD F 0,5mm - (120x16mm) [EAN: 3830046996725]
This water block is compatible with motherboard models:
- MSI Z270 Gaming Pro
- MSI Z270 Gaming Pro Carbon
- MSI Z270 Krait Gaming
- MSI Z270 SLI
- MSI Z270 SLI Plus
- MSI Z270 Tomahawk
- MSI Z270 Tomahawk Arctic
These motherboards have similar mosfet and inductor coil layout, therefore this instructions stand for two models.
All disclosures, notices and warranty conditions are being written on EKWB web page. Please check terms of use.
Remove all encircled screws. There are 4 screws
Do not remove
the PCH (SB)
Cooler!
BAG CONTENT:
Bag content is universal for all water blocks, you may not need all screws.
2. APPLYING THERMAL COMPOUND
spreader (IHS) - see sample photo on right
thermal grease.
The quantity of about two rice grains is just about right. There is no need to cover the
whole IHS. Applying too much thermal grease will have negative impact on the
cooling performance!
1. Thermal pad F– 1.0mm
(for mosfets):
2. Thermal pad F– 0,5mm
(for inductor coils):
Revision 1.0. Published on February 10
Monoblock:
www.ekwb.com for updates. Before
CPU heat
. Apply thermal compound on
with enclosed EK-TIM Ectotherm
th
2017
