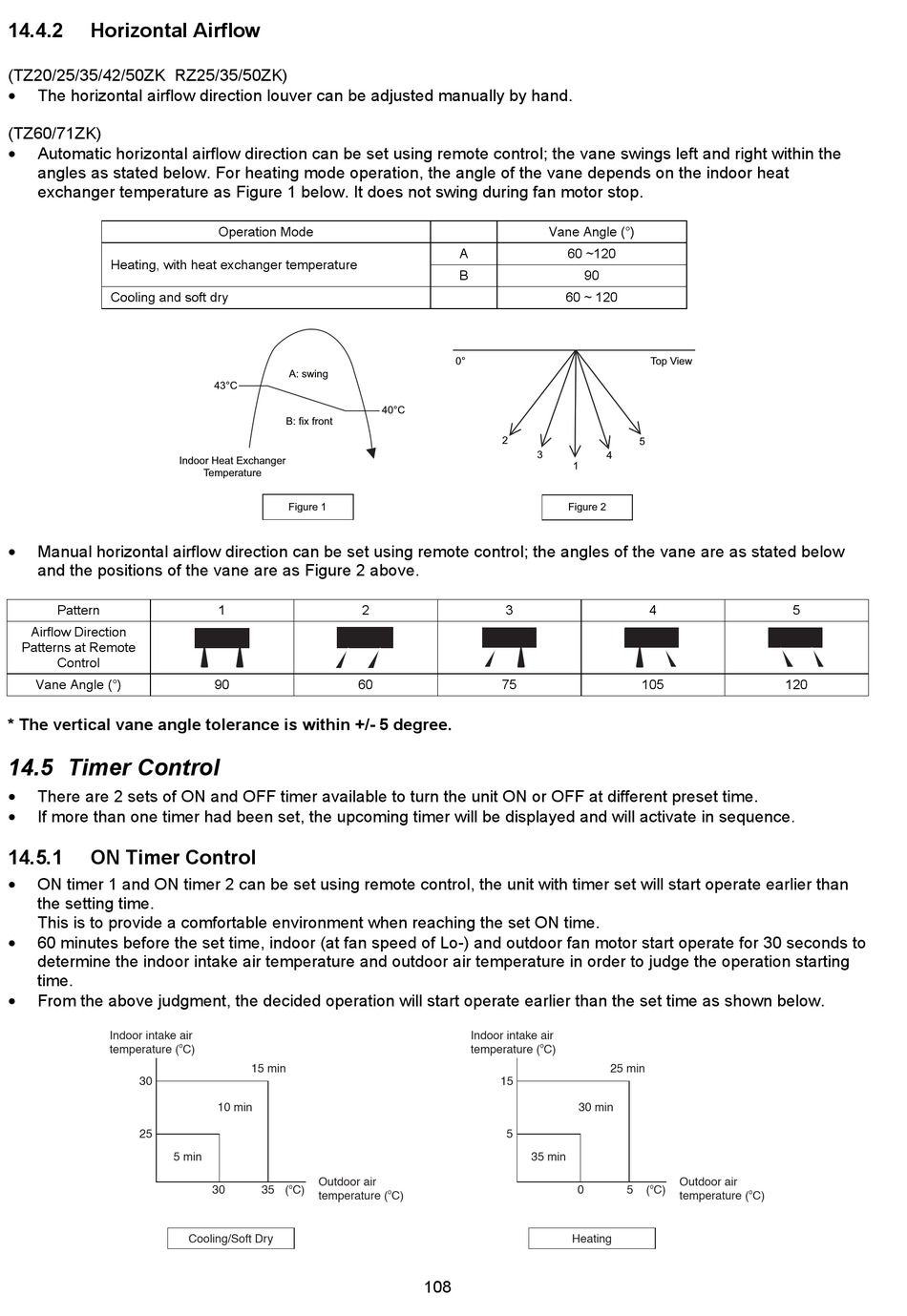

14.4.2 Horizontal Airflow
(TZ20/25/35/42/50ZK RZ25/35/50ZK)

The horizontal airflow direction louver can be adjusted manually by hand.
(TZ60/71ZK)

Automatic horizontal airflow direction can be set using remote control; the vane swings left and right within the
angles as stated below. For heating mode operation, the angle of the vane depends on the indoor heat
exchanger temperature as Figure 1 below. It does not swing during fan motor stop.
Heating, with heat exchanger temperature
Cooling and soft dry
Indoor Heat Exchanger

Manual horizontal airflow direction can be set using remote control; the angles of the vane are as stated below
and the positions of the vane are as Figure 2 above.
Pattern
Airflow Direction
Patterns at Remote
Control
Vane Angle (°)
* The vertical vane angle tolerance is within +/- 5 degree.

14.5 Timer Control


There are 2 sets of ON and OFF timer available to turn the unit ON or OFF at different preset time.

If more than one timer had been set, the upcoming timer will be displayed and will activate in sequence.
14.5.1 ON Timer Control

ON timer 1 and ON timer 2 can be set using remote control, the unit with timer set will start operate earlier than
the setting time.
This is to provide a comfortable environment when reaching the set ON time.

60 minutes before the set time, indoor (at fan speed of Lo-) and outdoor fan motor start operate for 30 seconds to
determine the indoor intake air temperature and outdoor air temperature in order to judge the operation starting
time.

From the above judgment, the decided operation will start operate earlier than the set time as shown below.
Indoor intake air
o
temperature (
30
25
5 min
Operation Mode
A: swing
43°C
B: fix front
Temperature
Figure 1
1
90
C)
15 min
10 min
Outdoor air
o
30 35 ( C)
temperature (
Cooling/Soft Dry
A
B
0°
40°C
2
2 3
60 75
Indoor intake air
temperature (
15
5
o
C)
108
Vane Angle (°)
60 ~120
90
60 ~ 120
Top View
5
3
4
1
Figure 2
4
105
o
C)
25 min
30 min
35 min
Outdoor air
o
0 5 ( C)
temperature (
Heating
5
120
o
C)
