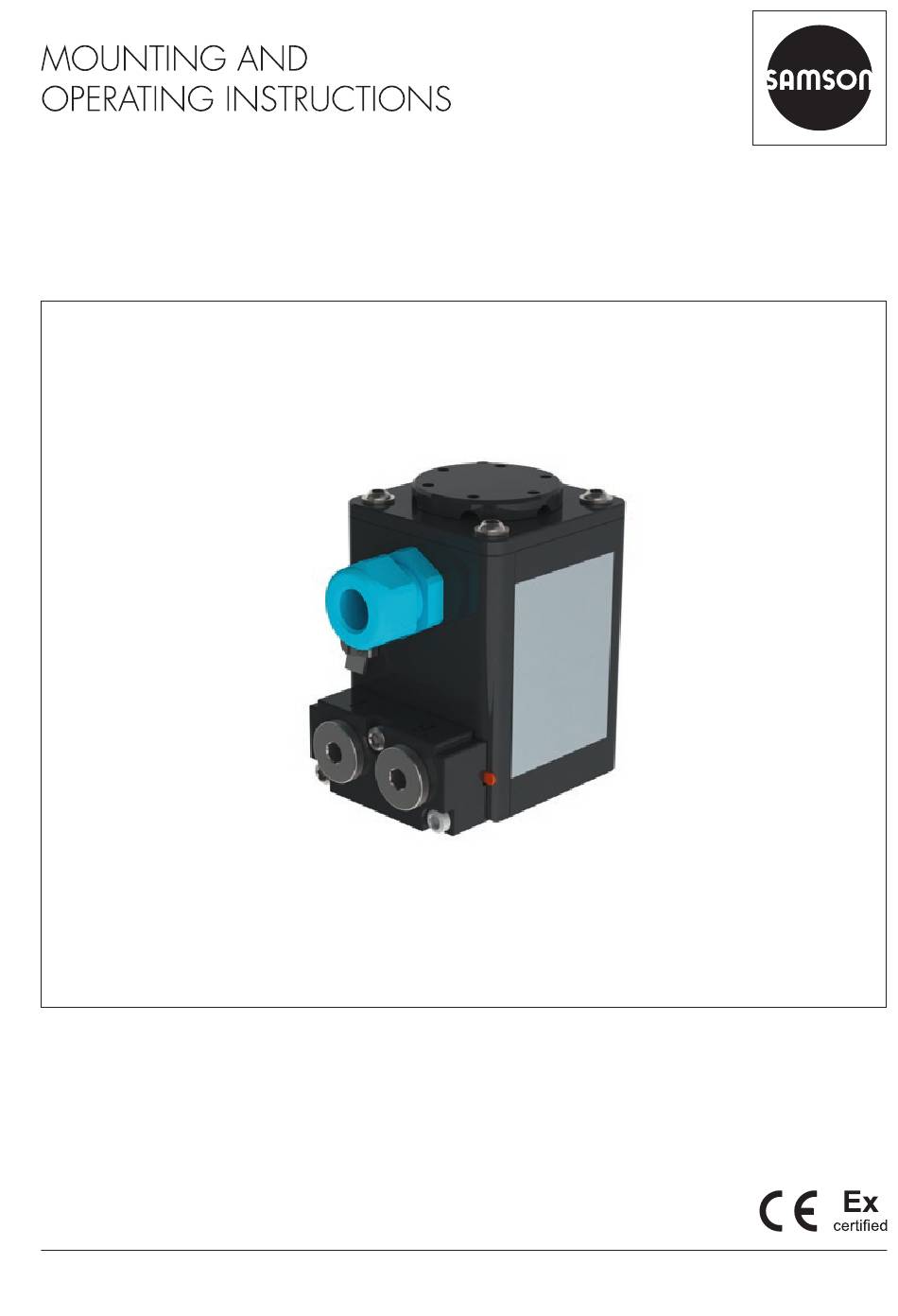

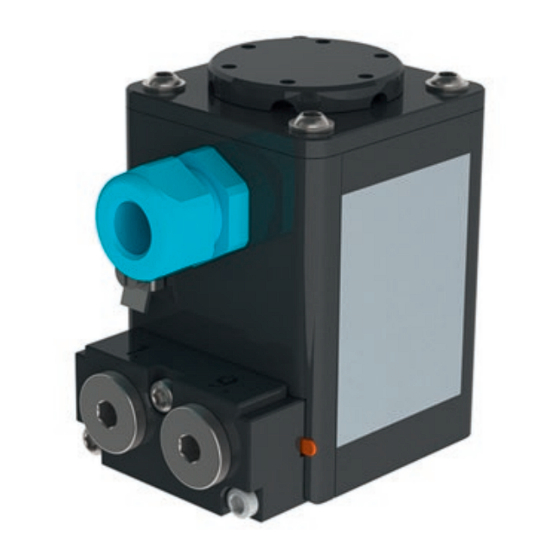

- Page 1 EB 3969 EN Translation of original instructions Type 3969 Solenoid Valve Edition June 2018...
- Page 2 Î For the safe and proper use of these instructions, read them carefully and keep them for later reference. Î If you have any questions about these instructions, contact SAMSON‘s After-sales Service Department (aftersalesservice@samson.de). The mounting and operating instructions for the devices are included in the scope of delivery.
-
Page 3: Table Of Contents
5.2.1 Direct attachment according to VDI/VDE 3847 ..........32 5.2.2 Rotary actuators according to VDI/VDE 3845 ..........32 5.2.3 Attachment according to IEC 60534-6 ............32 Pneumatic connections..................32 5.3.1 Connecting the supply air ................32 5.3.2 Port labeling ....................33 5.3.3 Sizing of the connecting line .................33 5.3.4 Compressed air quality .................34 5.3.5 Pilot supply ....................34 EB 3969 EN... - Page 4 Connecting the power supply ................37 Operation ....................38 Servicing.....................38 Preparation for return shipment ..............38 Malfunctions ....................39 Troubleshooting ...................39 Emergency action ..................39 Decommissioning and removal ..............40 Decommissioning ..................40 Removing the solenoid valve .................40 Disposal ......................40 Appendix ....................41 10.1 After-sales service ..................41 EB 3969 EN...
-
Page 5: Safety Instructions And Measures
In case operators intend to use the solenoid valve in other applications or conditions than specified, contact SAMSON. SAMSON does not assume any liability for damage resulting from the failure to use the de- vice for its intended purpose or for damage caused by external forces or any other external factors. - Page 6 Responsibilities of operating personnel Operating personnel must read and understand these mounting and operating instructions as well as the specified hazard statements, warning and caution notes. Furthermore, the operat- ing personnel must be familiar with the applicable health, safety and accident prevention regulations and comply with them. EB 3969 EN...
- Page 7 − The mounting and operating instructions of the components on which the solenoid valve is mounted (valve, actuator, valve accessories etc.) − Safety manual of the solenoid valve u SH 3969 − Safety manual of the restrictor plates u SH 3967-2 EB 3969 EN...
-
Page 8: Notes On Possible Severe Personal Injury
Risk of personal injury due to moving parts on the valve. During operation and when the solenoid valve is triggered, the actuator stem moves through its entire travel range. Injury to hands or fingers is possible if they are inserted into the valve. Î While the valve moves, do not insert hands or fingers into the valve yoke and do not touch any moving valve parts. EB 3969 EN... -
Page 9: Notes On Possible Property Damage
Incorrect assignment of the terminals will damage the solenoid valve and will lead to malfunction. For the solenoid valve to function properly, the prescribed terminal assignment must be observed. Î Connect the electrical wiring to the solenoid valve according to the prescribed termi- nal assignment. EB 3969 EN... -
Page 10: Markings On The Device
Markings on the device 2 Markings on the device 2.1 Nameplate Version without explosion protection Version with explosion protection Article code Configuration ID Serial number Order number Device index Safety approval EB 3969 EN... -
Page 11: Article Code
Markings on the device 2.2 Article code Solenoid valve Type 3969- x x x x x x x x x x x x x x x x x x x x x x x Type of protection Without explosion protection 0 0 0 II 2G Ex ia IIC T4/T6 Gb... - Page 12 Markings on the device Solenoid valve Type 3969- x x x x x x x x x x x x x x x x x x x x x x x 1) Material Aluminum Pneumatic connection G ¼ ¼ NPT G ½ ½ NPT Pilot valve connection...
-
Page 13: Summary Of Explosion Protection Approvals
Markings on the device Solenoid valve Type 3969- x x x x x x x x x x x x x x x x x x x x x x x Ambient temperature –20 to +80 °C –45 to +80 °C Safety function Without 2) Restrictor plate... -
Page 14: Design And Principle Of Operation
Optionally, the solenoid valve can be up- graded to become a pneumatic poppet valve actuated on one side. This results in higher coefficients (see Data Sheet u T 3756). EB 3969 EN... -
Page 15: Accessories And Spare Parts
Cable gland M20x1.5 made of blue polyamide, 6 to 12 mm cable diameter 8808-1012 NBR O-ring 18x2 (for cable gland) 8421-0067 Cable gland M20x1.5 made of black polyamide, 5 to 13 mm cable diameter (Ex e, CEAG) 8808-0178 Cable gland M20x1.5 made of blue polyamide, 5 to 13 mm cable diameter 8808-0179 Cable gland M20x1.5, nickel-plated brass, 6 to 12 mm cable diameter 8808-0138 Cable gland M20x1.5, brass, blue, 6 to 12 mm cable diameter 1890-4876 Cable gland M20x1.5, nickel-plated brass, 7 to 12 mm cable diameter (Ex e, CEAG) 8808-2043 Cable gland M20x1.5 made of blue polyamide, 10 to 14 mm cable diameter 8808-2016 Blanking plug M20x1.5, black polyamide (for cable entry) 8808-1025 NBR O-ring 18x2 (for blanking plug) 8421-0067 EB 3969 EN... - Page 16 Piping for actuator with "stem retracts" fail-safe action 240 cm² actuator area, zinc-plated steel 1400-6444 240 cm² actuator area, CrNiMo steel 1400-6445 350 cm² actuator area, zinc-plated steel 1400-6446 350 cm² actuator area, CrNiMo steel 1400-6447 700 cm² actuator area, zinc-plated steel 1400-6448 700 cm² actuator area, CrNiMo steel 1400-6449 Accessories for K Designation Order no. Adapter plate for NAMUR rib acc. to IEC 60534-6-1 Aluminum, powder coated, gray beige RAL 1019, G ¼ connection 1400-6751 Aluminum, powder coated, gray beige RAL 1019, ¼ NPT connection 1400-9924 Adapter plate for NAMUR interface ¼ on NAMUR rib ½ Aluminum, powder coated, gray beige RAL 1019 1380-1652 Stainless steel 1.4404 1380-1797 EB 3969 EN...
- Page 17 0360-3947 Stainless steel 1.4404, ½ NPT connection 0360-3948 Adapter plate for NAMUR interface ½ on NAMUR rib ½ Aluminum, powder coated, gray beige RAL 1019 1380-1795 Stainless steel 1.4404 1380-1796 Adapter plate for NAMUR rib acc. to IEC 60534-6-1 Aluminum, powder coated, gray beige RAL 1019, G ½ connection 1402-0827 Aluminum, powder coated, gray beige RAL 1019, ½ NPT connection 1402-0829 Stainless steel 1.4404, G ½ connection 1402-0828 Stainless steel 1.4404, ½ NPT connection 1402-0830 Double-axial adapter 90°, aluminum, powder coated, gray beige RAL 1019 1402-0602 90°, stainless steel 1.4404 1402-0603 EB 3969 EN...
-
Page 18: Technical Data
Operation EN 60721-3 –45 to +80 °C Ambient temperature –45 to +80 °C Mounting position Any desired position Resistance to vibration According to EN 60068-2-27 According to EN 60068-2-47 Recommended continuous duty ≤150 m/s² The maximum permissible ambient temperature depends on the permissible ambient temperature of the components, type of protection and temperature class. EB 3969 EN... - Page 19 Screw terminal, 2-pole, with cable gland M20x1.5 Grounding terminal External (A = 4 mm²) The maximum permissible ambient temperature depends on the permissible ambient temperature of the compo- nents, type of protection and temperature class. Maximum permissible value at 100 % duty cycle. The maximum permissible value U applies to explosion-protected versions. According to EU type examination certificate and statement of conformity Permissible maximum values when connected to a certified intrinsically safe circuit. EB 3969 EN...
- Page 20 Instrument air (free from corrosive substances) oil or non-corrosive gases Pressure 1.4 to 10 bar 3) Operating medium Instrument air, free from corrosive substances Operating pressure Max. 10 bar Switching time ≤60 ms Connection G ¼, ¼ NPT or NAMUR interface ¼ Weight 0.7 kg 1.05 kg (with adapter plate) The air flow rate when p = 2.4 bar and p = 1.0 bar is calculated using the following formula: Q = K x 36.22 in m³/h. SIL according to IEC 61508 When using the solenoid valve with an operating pressure of 10 bar, a minimum pilot pressure of 1.9 bar is required. NAMUR interface according to VDI/VDE 3845 and VDI/VDE 3847 EB 3969 EN...
- Page 21 The air flow rate when p = 2.4 bar and p = 1.0 bar is calculated using the following formula: Q = K x 36.22 in m³/h. SIL according to IEC 61508 With internal pilot supply With external pilot supply The maximum permissible ambient temperature depends on the permissible ambient temperature of the components, type of protection and temperature class. NAMUR interface according to VDI/VDE 3845 EB 3969 EN...
-
Page 22: Dimensions In Mm
Design and principle of operation 3.3 Dimensions in mm Version with NAMUR interface ¼" according to VDI/VDE 3845 and direct attachment according to VDI/VDE 3847 NAMUR interface ¼" according to VDI/VDE 3845 and 3847 G (NPT) 1/4 EB 3969 EN... - Page 23 Design and principle of operation Version with NAMUR interface ¼" according to VDI/VDE 3845 and direct attachment according to VDI/VDE 3847 and restrictor plate NAMUR interface ¼" according to VDI/VDE 3845 and 3847 G (NPT) ¼ EB 3969 EN...
- Page 24 Design and principle of operation Version with adapter plate for linear actuators with NAMUR rib according to IEC 60531-6-1 Ø8.5 for NAMUR ribs according to IEC 60534-6-1 M3 for wall or rail mounting M4 for panel mounting G (NPT) ¼ EB 3969 EN...
- Page 25 Design and principle of operation Version with booster valve (K 2.0) G (NPT) ½ NAMUR interface ¼" according to VDI/ VDE 3845 G (NPT) ¼ G NPT EB 3969 EN...
- Page 26 Design and principle of operation Version with poppet valve (K 4.3) G (NPT) ½ NAMUR interface ½" acc. to VDI/VDE 3845 EB 3969 EN...
-
Page 27: Measures For Preparation
− Observe the storage instructions. note. − Avoid long storage times. 2. Check the shipment for transportation − Contact SAMSON in case of different stor- damage. Report any transportation dam- age conditions or long storage periods. age. Storage instructions 4.1 Unpacking... -
Page 28: Mounting And Start-Up
1. Remove the protective caps from the Î On mounting, make sure that 200 mm or pneumatic connections. more clearance is kept above the enclo- sure cover. 2. Mount the solenoid valve. Î Section 5.1 onwards 3. Perform pneumatic installation. Î Section 5.3 onwards 4. Perform electrical installation. Î Section 5.4 onwards EB 3969 EN... -
Page 29: Direct Attachment According To Vdi/Vde 3847
2 Filling the actuator with air 3 Venting the actuator 3. Check the location of the formed seal 9 External pilot supply and the code screw on the NAMUR in- Fig. 2: Connection diagram according to VDI/ terface. VDE 3847 EB 3969 EN... -
Page 30: Rotary Actuators According To Vdi/Vde 3845
2. Use two cap screws to fasten the sole- noid valve on to the rotary actuator. The solenoid valve can be configured with an external connecting plate to facilitate ser- vicing work, device replacement or intercon- nection with other devices for exhaust air feedback (see section 5.2.2). EB 3969 EN... -
Page 31: Attachment According To Iec 60534-6
O-rings on the NAMUR interface and that of the coded screw. 2. Use two cap screws to fasten the sole- noid valve on to the adapter plate of the NAMUR rib. If the solenoid valve is configured for attach- ment according to IEC 60534-6 (NAMUR rib), steps 1 and 2 are not required. EB 3969 EN... -
Page 32: Exhaust Air Feedback For Single-Acting Actuators
Observe the following sequence. be included in the exhaust air feedback over 1. Remove the protective caps from the port 3 of the adapter plate as part of the pneumatic connections. configuration of the external connecting EB 3969 EN... -
Page 33: Port Labeling
Supply air External pilot supply Output Venting 2.0 and K Note The ports 1 and 9 in the black connecting plate of the solenoid valve are not required and must be sealed using stainless steel blanking plugs. EB 3969 EN... -
Page 34: Compressed Air Quality
Pressure dew point quantity Class 4 Class 3 Class 3 –20 °C/10 K below the lowest ≤5 µm and ≤1 mg/m³ ambient 1000/m³ temperature to be expected 5.3.5 Pilot supply In the delivered state, the pilot supply is fed internally over port 1, if not configured oth- erwise. EB 3969 EN... - Page 35 Fig. 5: External pilot supply groove. 4. Tighten the fastening screw. 2.0 and K Note When a booster valve is used (K 2.0 and 4.3), the turnable gasket described for 0.3 must always positioned with its tag pointing to port 1. EB 3969 EN...
-
Page 36: Electrical Connections
− Do not undo the enameled screws. − Do not exceed the maximum permissible values (Ui, li, Pi, Ci, Li) specified in the EC type examination certificates when inter- connecting intrinsically safe electrical equipment. EB 3969 EN... -
Page 37: Connecting The Power Supply
1. Remove the protective caps from the pneumatic connections. 2. Mount the solenoid valve to the control valve. 3. Connect the supply air. 4. Connect the power supply. Î Connect the power supply (voltage) as described in Fig. 7. – Fig. 7: Terminal connection in the enclosure EB 3969 EN... -
Page 38: Operation
Proceed as follows to return devices to SAMSON: 1. Decommission the solenoid valve and re- move it from the valve. 2. Request a declaration of contamination and fill it out. 3. Send the solenoid valve to SAMSON. The contact information is listed at u www.samson.de > About SAMSON. EB 3969 EN... -
Page 39: Malfunctions
Use a larger cross-section for the pressure line. Note Contact SAMSON's After-sales Service department for malfunctions not listed in the table. 8.2 Emergency action The solenoid valve has a safety function. Up- on failure of the supply voltage, it automati- cally closes (closed in the de-energized state). -
Page 40: Decommissioning And Removal
1. Disconnect and lock the air supply and vider to dismantle and recycle the product. pilot supply. 2. Relieve the pipelines completely of pres- sure. 3. Open the solenoid valve cover and dis- connect the wires for the supply voltage. EB 3969 EN... -
Page 41: Appendix
E-mail address You can reach the After-sales Service De- partment at aftersalesservice@samson.de . Addresses of SAMSON AG and its subsid- iaries The addresses of SAMSON, its subsidiaries, representatives and service facilities world- wide can be found on our website (u www.samson.de) or in all product cata-... - Page 42 Zentralabteilungsleiter/Head of Department/Chef du département Entwicklung Automation und Integrationstechnologien/ Entwicklung Ventilanbaugeräte und Messtechnik Development Automation and Integration Technologies SAMSON AKTIENGESELLSCHAFT Telefon: 069 4009-0 · Telefax: 069 4009-1507 Revison 06 Weismüllerstraße 3 60314 Frankfurt am Main E-Mail: samson@samson.de EB 3969 EN...
- Page 43 EXPLOSION PROTECTION INSTRUCTIONS · TYPE 3969 1 Safety instructions for ATEX and IECEx The following safety instructions and safety-related notes must be included in the operating and mounting instructions as required according to Clause 30 of IEC/EN 60079-0 and the Directive 2014/34/EU.
- Page 44 EXPLOSION PROTECTION INSTRUCTIONS · TYPE 3969 Selecting cables and wires Observe the relevant clauses of EN 60079-14 for installation of intrinsically safe circuits. Seal cable entries left unused with plugs. 1.2 Servicing explosion-protected devices If a part of the device on which the explosion protection is based needs to be serviced, the...
- Page 45 Maximum surface temperature Permissible ambient temperature Ta T 85 °C –45 °C ≤ Ta ≤ +80 °C Note The associated certificates can be found on our website (www.samson.de > Products & Applica- tions > Product selector). EX 3969 EN Version 2019-04-30 3 of 3...
- Page 48 EB 3969 EN SAMSON AKTIENGESELLSCHAFT Weismüllerstraße 3 · 60314 Frankfurt am Main, Germany Phone: +49 69 4009-0 · Fax: +49 69 4009-1507 samson@samson.de · www.samson.de...
