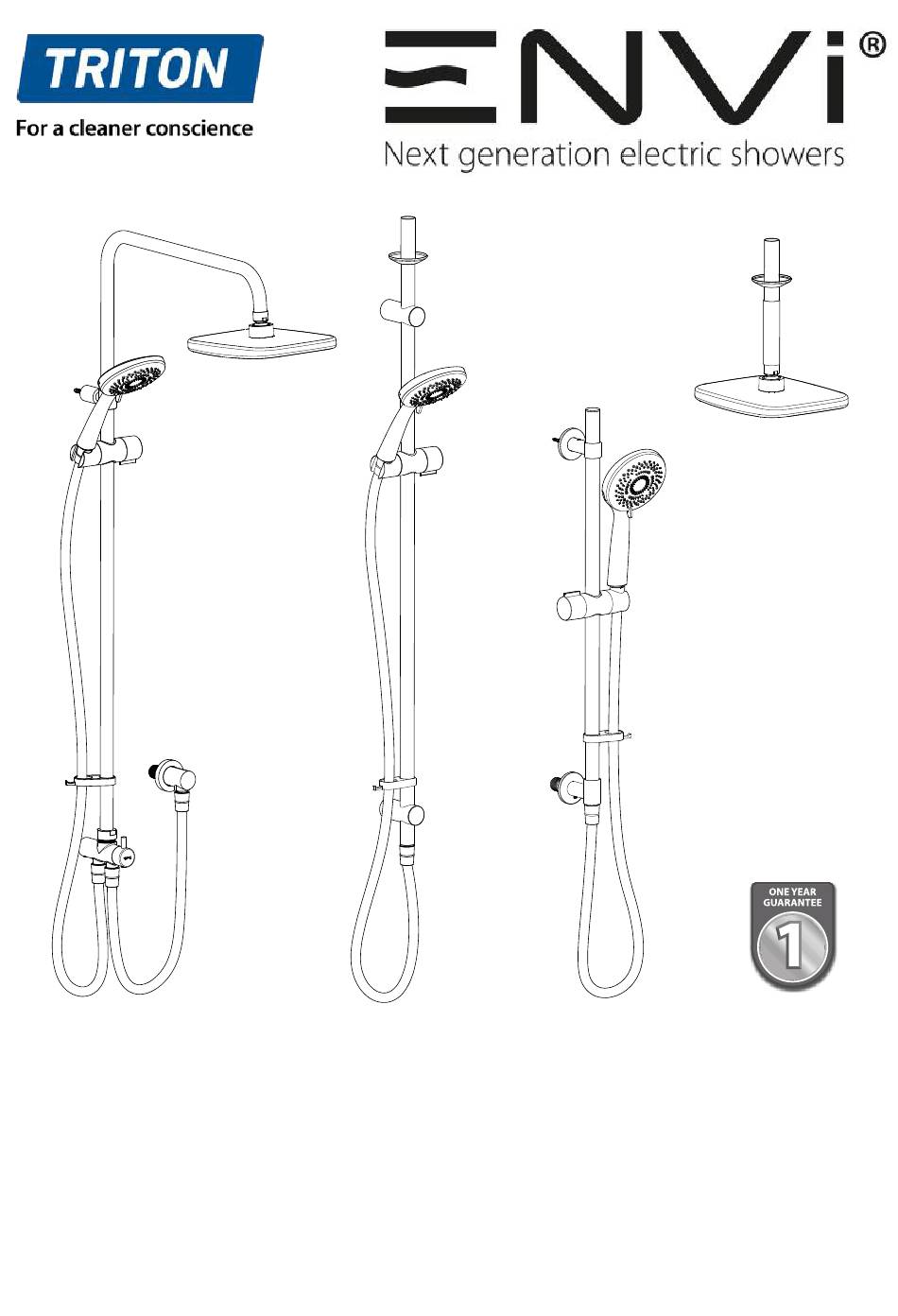

Accessory Instructions Please read this book thoroughly and familiarise yourself with all instructions before commencing installation. Keep these instructions in a safe place for future reference. 2181706B - December 2023...
Installing Single Outlet Fixed Head Kit ........IMPORTANT SAFETY ADVICE The shower heads and hoses supplied with this product are a safety critical part of your shower system. Failure to use genuine Triton parts may cause injury and invalidate your guarantee.
DUELEC DUAL OUTLET KIT ® Main Components A. Diverter Valve B. Lower Shower Arm C. Top Fixing/Shower Arm Holder D. Top Shower Arm E. Shower Head Holder F. Hose Retainer G. Fixed Head H. Shower Head I. Hose (Short) J. Hose (long) K.
SINGLE OUTLET CEILING FED KIT Main Components A. 940mm Riser Rail Section G. Bottom Bracket B. 700mm Riser Rail Section H. Bracket End Trim C. Guide Bracket I. Ceiling Trim D. Bridging Bracket J. Spacer (optional) E. Shower Head Holder K.
SINGLE OUTLET WALL FED KIT Main Components A. Top Wall Bracket G. Bottom Bracket (water outlet) B. Top Bracket H. Bottom Trim C. Top Trim I. Riser Rail D. Shower Head Holder J. Shower Head E. Adaptor K. Shower Hose F.
GENERAL INSTALLATION Please use this book in conjunction with the main installation guide supplied with ® your ENVi shower. Any riser rail kit or pipework MUST not be positioned where it will be subjected to freezing conditions. The shower head holder can be orientated such that the shower head can be positioned either side of the riser rail or shower arm.
INSTALLING DUELEC DUAL OUTLET KIT ® Step Step Step Step Measure a distance of 728mm from the Diverter Bracket, ensuring centres are vertically aligned, and mark the position. Drill and plug the wall. Secure the Shower Arm Mark the wall fixing position for the Fixing Bracket to Diverter Fixing Bracket and drill and the wall using the...
Page 10
Step Step Shower Flat Face Grub Screw Shower Lower Shower Holder Assemble the Top Shower Arm into the Shower Arm Holder, note that the Top Shower Arm can only be assembled one way, so ensure that the flat faces of Top Shower Arm and Shower Arm Holder are aligned.
Page 11
Step Step Shower Arm Fixing Bracket Shower Arm Holder Grub Screw Threaded Diverter Outlet Diverter Inlet 2 x Grub Screws Pivoting the Shower Arm slightly away from the wall, slide the stem of the Shower Arm Holder into the Shower Arm Fixing Bracket. Holding the Shower Arms in place, fully tighten the threaded nut on the Diverter Valve, ensuring that the Shower Arms are vertical.
Page 12
Step Step 36mm 36mm Screw the Bulkhead Adaptor to the pipework. Add a bead of silicone sealant around the adaptor to ensure watertight. The following are typical thicknesses and are given as a guide only: Tile 6 - 10mm Adhesive 2 - 3mm Plasterboard 9.5 - 12.5mm Plaster finish 2 - 3mm Maximum tile thickness to be 10mm.
Page 13
Step Step Step Step Assemble the Fixed Head on to the Top Shower Arm. Step Step IMPORTANT Ensure the Shower Head Hose is connected to the outlet (back) Diverter Valve connector, failure to do this may cause damage to your shower. Feed the Long Shower Hose through the Hose Retainer, fit a hose seal into the conical nut and connect to the outlet of...
INSTALLING SINGLE OUTLET CEILING FED Option 1 - Installing with 940mm riser rail only Step Step Riser rail long enough to clear ceiling joists, etc. Allow a minimum distance of 50mm between the ceiling and the Guide Bracket. Make sure there is sufficient length of Riser Ceiling 50 mm minimum clearance...
Page 15
Step Step Step Step Ceiling trim Riser rail Guide bracket Slide the Hose Retainer and then the Fit the Riser Rail through the Guide Shower Head Holder onto the Riser Bracket. Slide the Ceiling Trim over the Rail — press and hold the button on RiseR Rail and feed the Riser Rail into top of the holder to release the locking the ceiling opening.
Page 16
Step Step Step Step 15 mm elbow fitting Pipework to Tri-HUB (not supplied) 15mm pipe (in riser rail) Retaining clip Outlet connector Ceiling Feed the 15mm pipe and connector In the loft, trim any excess length of the back up the Riser Rail and secure the 15mm pipe.
Page 17
INSTALLING SINGLE OUTLET CEILING FED Option 2 - Installing with 940mm & 700mm riser rails Step Step Upper riser rail long enough to The 940mm & 700mm Riser Rails clear ceiling joists, etc. are supplied to cater for differing layouts and ceiling heights. It may be necessary to shorten one of the rail sections using a suitable hacksaw or 50 mm minimum...
Page 18
Mark the position where rail enters the ceiling Slide the Riser Rail up through the Guide Step Step Bracket until it touches the ceiling. Using a spirit level, align the Riser Rail vertically and mark the centre hole position Guide bracket of the rail on the ceiling.
Page 19
Step Step Step Step Riser rail Heated water pipe Spacer Retaining Plastic insert Bottom screw (not supplied) bracket Outlet connector Refit the lower Riser Rail assembly into the Feed a length of 15mm pipe (not base of the Bridging Bracket, again making supplied) up the centre of the Riser sure the small cut-out engages the bracket Rail, ensuring that the pipe protrudes...
Page 20
Step Step Step Step Shower head Outlet connector Washer Screw the Shower Hose to the Outlet Feed the Shower Hose through the Hose Connector and the other end to the Shower Retainer so that it acts Head. as a retaining ring. Make sure the supplied washers are in place (This must be done to comply with at both ends of the Shower Hose.
INSTALLING SINGLE OUTLET WALL FED KIT For brick/plaster installation, use Step Step a bib tap elbow (or similar) to secure the bottom bracket. 35-40mm Screw the Adaptor to pipework. The following are typical thicknesses and are given as a guide only: Tile 6 - 10mm Adhesive 2 - 3mm Plasterboard 9.5 - 12.5mm...
Page 22
Step Step Place the Top Trim over the Top Wall Bracket so that it sits flush to the wall. Offer the assembled Riser Rail back up to the wall and secure in place using the allen key. Screw the Shower Hose to the Outlet Connector and the other end to the Shower Head.
INSTALLING SINGLE OUTLET FIXED HEAD Step Step Install a wall plate elbow or suitable alternative with a minimum of 3 fixing screws, ensuring that the flush fitting pipework has suitable support. NOTE: It is not advisable to fix the arm through the plasterboard alone, 10mm 10mm please consider a strong rear support.
