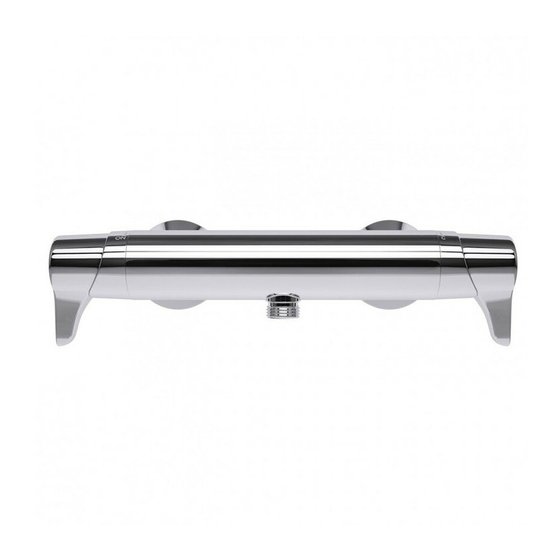

Thermostatic bar mixer shower with diverter
Hide thumbs Also See for EDEN:
Table of Contents

Advertisement

Quick Links

Download this manual
EDEN
Thermostatic Bar Mixer Shower
with Diverter
86005000
Installation and
operating instructions
I
nstallers please note these InstructIons are to be left wIth the user
The showerhead and hose supplied with this product are a safety
critical part of your shower. Failure to use genuine Triton parts
may cause injury and invalidate your guarantee.
2181383G - December 2019

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EDEN and is the answer not in the manual?

Questions and answers

Related Manuals for Triton EDEN

Summary of Contents for Triton EDEN

  • Page 1 InstructIons are to be left wIth the user The showerhead and hose supplied with this product are a safety critical part of your shower. Failure to use genuine Triton parts may cause injury and invalidate your guarantee.

  • Page 2: Table Of Contents

    Find our step-by-step installation video for this product on our YouTube channel. Go to youtube.com/TritonShowers and search for 'how to guides'. To check the product suitability for commercial and multiple installations, please contact Triton’s speci cation advisory service before installation. Please see back of book for contact information.

  • Page 3: Dimensions And Main Components

    3. Rigid riser rail pipe 4. Handset 5. Handset holder Hose 7. Eden thermostatic mixer valve 8. Collar & outlet assembly Arm mounting plate (not shown) All dimensions listed in this fitting book regarding the product and installation are approximate.

  • Page 4: Introduction

    Thermostatic bar mixer shower INTRODUCTION Pressure reducing valve On sites where the running pressure is above 5 This book contains all the necessary fitting and bar, the use of a suitably sized pressure reducing operating instructions for your mixer shower. valve fitted in the cold mains supply pipe work Please read them carefully and read through can provide nominally equal pressures at the...

  • Page 5: Plumbing Requirements

    Thermostatic bar mixer shower PLUMBING REQUIREMENTS Hard water areas DO NOT use jointing compounds on any pipe a. If it is intended to operate the shower fittings for the installation. in areas of hard water (above 200-ppm DO NOT solder fittings near the mixer unit temporary hardness), a scale inhibitor may as heat can transfer along the pipework and have to be fitted.

  • Page 6: Typical Domestic Installations

    Thermostatic bar mixer shower TYPICAL DOMESTIC INSTALLATIONS *Fig.2 (diagrammatic view – not to scale) Domestic gravity fed systems ( fig.2) The shower control MUST be fed from a cold water cistern and hot water cylinder providing Stop valve nominally equal pressures. There MUST be Cold water Cold supply a minimum of one metre head of water.
  • Page 7 Thermostatic bar mixer shower *Fig.4 (diagrammatic view – not to scale) Instantaneous gas-heated systems, e.g. combination boilers (fig.4) The shower control MUST be installed with a multi-point gas water heater or combination boiler of a fully modulating design i.e. to maintain relatively stable hot water temperatures.
  • Page 8 Thermostatic bar mixer shower Mains pressurised thermal store systems ( fig.6) *Fig.6 (diagrammatic view – not to scale) Packages of this type, fitted with a tempering valve (blender valve) can be used. A drop tight pressure reducing valve MUST be fitted if the supply pressures exceed 5 bar running.

  • Page 9: Installation

    Thermostatic bar mixer shower INSTALLATION *Fig.7 (diagrammatic view – not to scale) PREPARING THE MIXER VALVE Check the contents to make sure all items are present. Before starting, make sure all of the openings on the valve are carefully covered to stop ingress of any debris etc.

  • Page 10: Fitting The Riser Pipe/Fixed Head

    Thermostatic bar mixer shower FITTING THE RISER PIPE/FIXED HEAD Fig.9 Bracket • Mark the centre hole for the fixed mounting point head mounting bracket at a height of approximately 1040mm from the inlet datum (fig.9). IMPORTANT: All dimensions listed in this fitting book regarding the product and installation are approximate.

  • Page 11: Leak Testing The Mixer

    Thermostatic bar mixer shower • Install the adaptor into the top outlet of the Fig.11 mixer. Slide the base of the riser pipe into the Riser pipe adaptor (fig.11), making sure the sealing washer and locking collar are in place. Do not fully tighten the collar at this time.

  • Page 12: Commissioning

    Thermostatic bar mixer shower COMMISSIONING Fig.14 • Start the water flow by rotating the flow control spindle (left hand side) clockwise (fixed showerhead) or anti-clockwise (handset). • Make sure that the hot and cold water supplies are fully open and at (or near to) their design temperature and pressures, and Temperature are within the requirements as stated on...

  • Page 13: Temperature Adjustment Range

    Thermostatic bar mixer shower TEMPERATURE ADJUSTMENT RANGE The mixer has a temperature stop to prevent accidental rotation to higher temperatures. This is adjustable to provide a maximum temperature of 35°C – 45°C. The mixed water temperature can be adjusted from cold through to a top limit (which can be pre-set during installation.

  • Page 14: Operating The Shower (Diverter)

    Thermostatic bar mixer shower OPERATING THE SHOWER (Diverter) Fig.17 • When the ON/OFF diverter control lever is at 6 o’clock, it is in the OFF position. • To use the fixed head outlet turn the diverter clockwise. To decrease the flow, turn the diverter control lever back towards the OFF setting (fig.17).

  • Page 15: Spare Parts

    Thermostatic bar mixer shower SPARE PARTS PLEASE NOTE: fitting has Left Hand thread Ref. Description Part No. Ref. Description Part No. 1. Diverter selector and Temperature knob Non return valves (NRV) ..83307290 ........... 86005150 Straight connector ....UNPIPCON 2. Flow adaptor ......83316120 3.

  • Page 16: Tmv2 And Flow Rates

    Thermostatic bar mixer shower TMV2 REQUIREMENTS (12 MONTHLY VERIFICATION) It is a requirement that all TMV2 approved valves shall be verified against the original set temperature results once a year. On installation and on a yearly basis please perform the following checks: 1.

  • Page 17: Maintenance

    Thermostatic bar mixer shower MAINTENANCE temperature variation, then internal components will require replacement - please see the spare The following maintenance procedure must parts list. be carried out for commercial and health care premises, but is not necessarily required for Cleaning domestic installations.

  • Page 18: Fault Finding

    Thermostatic bar mixer shower FAULT FINDING The following can be carried out by a competent person Problem/Symptom Cause Action/Cure 1 Water too hot. 1.1 Temperature 1.1.1 Refer to commissioning section. control incorrectly commissioned. 1.2 Not enough cold 1.2.1 Reposition temperature control knob water flowing through shower.
  • Page 19 Thermostatic bar mixer shower FAULT FINDING Problem/Symptom Cause Action/Cure 3 Water does 3.1 Water supplies cut off. 3.1.1 Check water elsewhere in house and if not flow or necessary contact local water company. shower pattern 3.2 Shower unit blocked. 3.2.1 Inspect the inlet filters. Clean if necessary. collapses when 3.3 Blockage in pipework.
  • Page 20 Trade Installer Hotline: 024 7637 8344 Nuneaton www.tritonshowers.co.uk Warwickshire, CV11 4NR E-mail: serviceenquiries@tritonshowers.co.uk E-mail: technical@tritonshowers.co.uk Triton is a division of Norcros Group (Holdings) Limited Triton reserve the right to change product specification without prior notice. E&OE. © TRITON SHOWERS 2019...
