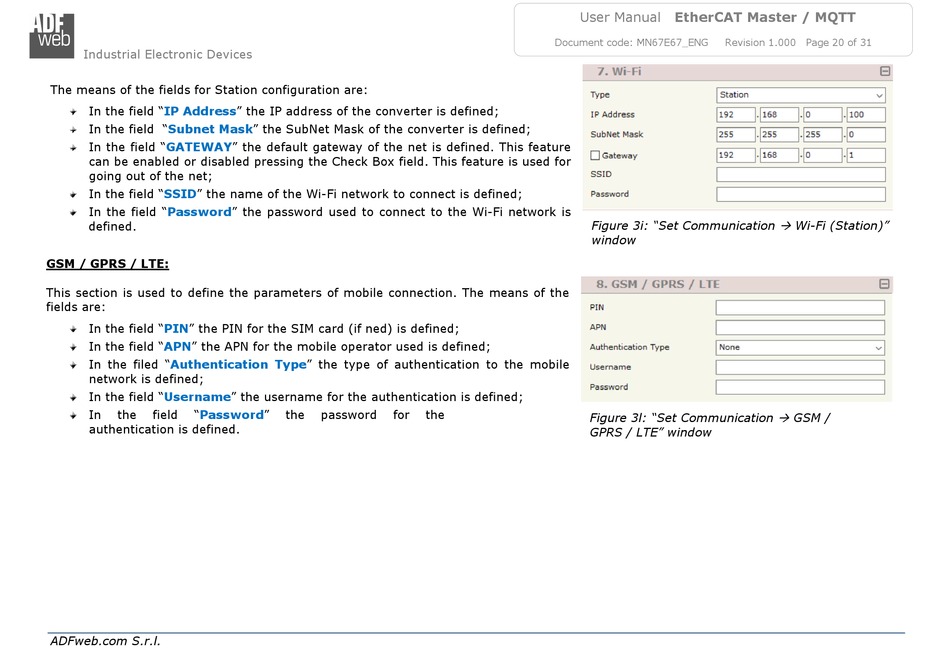

ADF Web HD67E67-A1 User Manual page 20

Industrial Electronic Devices
The means of the fields for Station configuration are:
In the field "IP Address" the IP address of the converter is defined;
In the field "Subnet Mask" the SubNet Mask of the converter is defined;
In the field "GATEWAY" the default gateway of the net is defined. This feature
can be enabled or disabled pressing the Check Box field. This feature is used for
going out of the net;
In the field "SSID" the name of the Wi-Fi network to connect is defined;
In the field "Password" the password used to connect to the Wi-Fi network is
defined.
GSM / GPRS / LTE:
This section is used to define the parameters of mobile connection. The means of the
fields are:
In the field "PIN" the PIN for the SIM card (if ned) is defined;
In the field "APN" the APN for the mobile operator used is defined;
In the filed "Authentication
network is defined;
In the field "Username" the username for the authentication is defined;
In the field "Password"
authentication is defined.
ADFweb.com S.r.l.
Type" the type of authentication to the mobile
the password for the
User Manual EtherCAT Master / MQTT
Document code: MN67E67_ENG Revision 1.000
Figure 3i: "Set Communication
window
Figure 3l: "Set Communication
GPRS / LTE" window
Page 20 of 31
 Wi-Fi (Station)"
 GSM /
