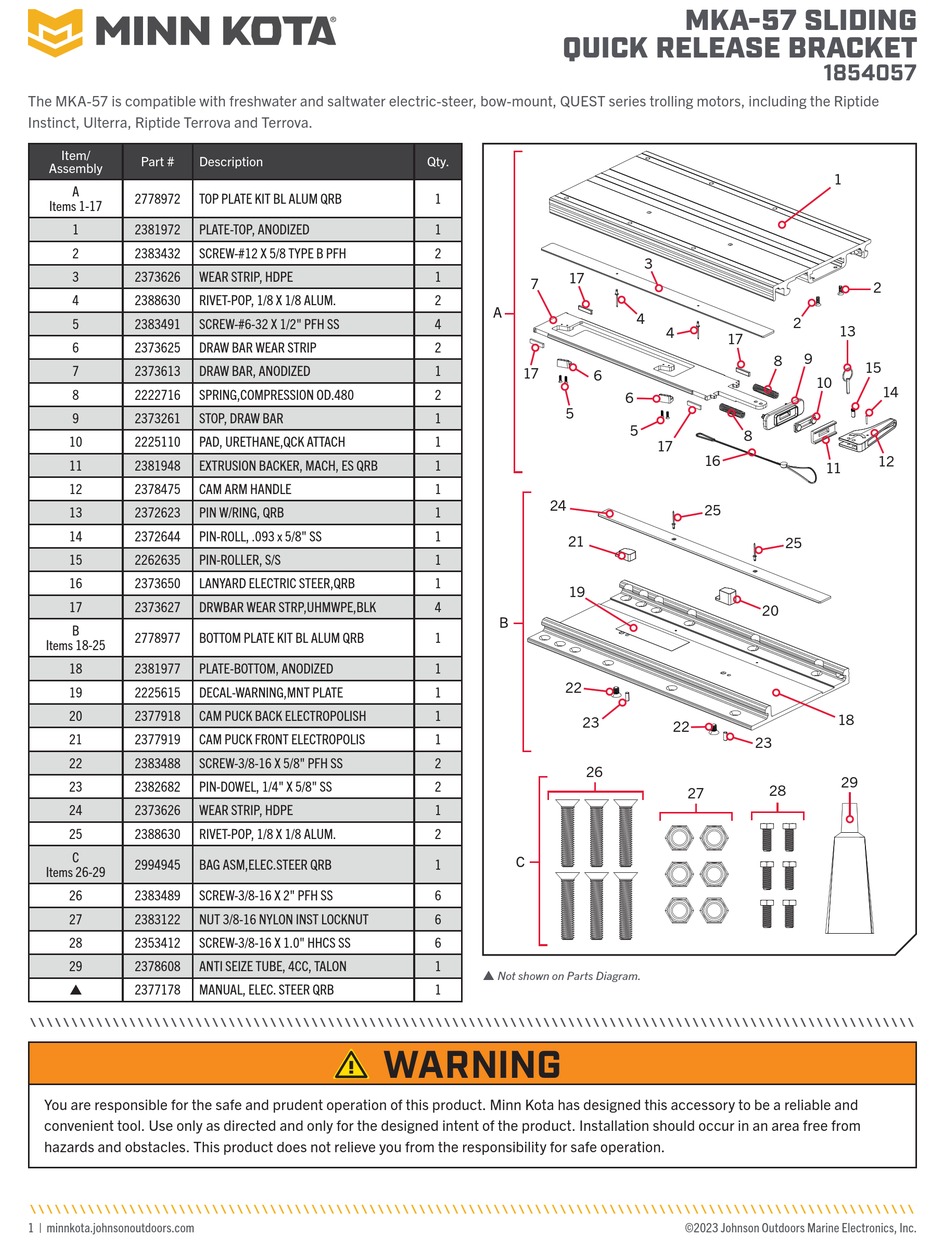

The MKA-57 is compatible with freshwater and saltwater electric-steer, bow-mount, QUEST series trolling motors, including the Riptide
Instinct, Ulterra, Riptide Terrova and Terrova.
Item/
Part #
Description
Assembly
A
2778972
TOP PLATE KIT BL ALUM QRB
Items 1-17
1
2381972
PLATE-TOP, ANODIZED
2
2383432
SCREW-#12 X 5/8 TYPE B PFH
3
2373626
WEAR STRIP, HDPE
4
2388630
RIVET-POP, 1/8 X 1/8 ALUM.
5
2383491
SCREW-#6-32 X 1/2" PFH SS
6
2373625
DRAW BAR WEAR STRIP
7
2373613
DRAW BAR, ANODIZED
8
2222716
SPRING,COMPRESSION OD.480
9
2373261
STOP, DRAW BAR
10
2225110
PAD, URETHANE,QCK ATTACH
11
2381948
EXTRUSION BACKER, MACH, ES QRB
12
2378475
CAM ARM HANDLE
13
2372623
PIN W/RING, QRB
14
2372644
PIN-ROLL, .093 x 5/8" SS
15
2262635
PIN-ROLLER, S/S
16
2373650
LANYARD ELECTRIC STEER,QRB
17
2373627
DRWBAR WEAR STRP,UHMWPE,BLK
B
2778977
BOTTOM PLATE KIT BL ALUM QRB
Items 18-25
18
2381977
PLATE-BOTTOM, ANODIZED
19
2225615
DECAL-WARNING,MNT PLATE
20
2377918
CAM PUCK BACK ELECTROPOLISH
21
2377919
CAM PUCK FRONT ELECTROPOLIS
22
2383488
SCREW-3/8-16 X 5/8" PFH SS
23
2382682
PIN-DOWEL, 1/4" X 5/8" SS
24
2373626
WEAR STRIP, HDPE
25
2388630
RIVET-POP, 1/8 X 1/8 ALUM.
C
2994945
BAG ASM,ELEC.STEER QRB
Items 26-29
26
2383489
SCREW-3/8-16 X 2" PFH SS
27
2383122
NUT 3/8-16 NYLON INST LOCKNUT
28
2353412
SCREW-3/8-16 X 1.0" HHCS SS
29
2378608
ANTI SEIZE TUBE, 4CC, TALON
p
2377178
MANUAL, ELEC. STEER QRB
You are responsible for the safe and prudent operation of this product. Minn Kota has designed this accessory to be a reliable and
convenient tool. Use only as directed and only for the designed intent of the product. Installation should occur in an area free from
hazards and obstacles. This product does not relieve you from the responsibility for safe operation.
1 | minnkota.johnsonoutdoors.com
Qty.
1
1
2
1
7 7
2
A A
4
2
1
17
17
2
1
1
1
1
24
24
1
1
1
1
4
B B
1
1
1
1
1
2
2
1
2
C C
1
6
6
6
1
p
Not shown on Parts Diagram.
1
WARNING
MKA-57 SLIDING
QUICK RELEASE BRACKET
3 3
17
17
4 4
4 4
17
17
6 6
6 6
5 5
5 5
17
17
16
16
25
25
21
21
19
19
22
22
23
23
22
22
26
26
27
27
©2023 Johnson Outdoors Marine Electronics, Inc.
1854057
1
1
2 2
2 2
13
13
9 9
8 8
15
15
10
10
14
14
8 8
12
12
11
11
25
25
20
20
18
18
23
23
29
29
28
28

Advertisement

loading
Need help?

Need help?

Do you have a question about the MKA-57 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for MINN KOTA MKA-57

  • Page 1 WARNING You are responsible for the safe and prudent operation of this product. Minn Kota has designed this accessory to be a reliable and convenient tool. Use only as directed and only for the designed intent of the product. Installation should occur in an area free from hazards and obstacles.
  • Page 2 • Needle-nose Pliers • 13/32” Drill Bit the installation (for Terrova and RT Terrova) MOUNTING CONSIDERATIONS The MKA-57 Quick Release Bracket is designed to be locked in Operating Transporting two different positions. The first position aligns the Top Plate and Complete...
  • Page 3 Make sure that the motor will not encounter any NOTICE: obstructions when sliding on and off the Bottom Plate. When mounting, the exact placement of the motor and MKA-57 may vary depending on the boat, boat deck, and Keel Keel Inboard Inboard 1½"...
  • Page 4: Installation

    Opening the Bracket ITEM(S) NEEDED #A x 1 #B x 1 Take the MKA-57 Quick Release Bracket, which Top Plate Top Plate consists of the Top Plate (Assembly #A) and the Bottom Plate (Assembly #B). The Top Plate will be attached to the trolling motor, while the Bottom Plate will be installed to the boat deck.
  • Page 5 The trolling motor weighs up to 90lbs. NOTICE: Minn Kota recommends having a second person help with the installation. Remove the four Sideplate Screws using a #3 Phillips Screwdriver. Two of these screws will be located on each side of the mount.
  • Page 6 ITEM(S) NEEDED #28 x 6 To prevent seizing of the stainless steel NOTICE: hardware, do not use high-speed installation tools. Place the flat side of the Top Plate against the bottom of the Base Extrusion. Align the Mounting Hex Head Hex Head Cap Screw Cap Screw...
  • Page 7 The trolling motor weighs up to 90lbs. NOTICE: Minn Kota recommends having a second person help with the installation. Remove the four Sideplate Screws using a #3 Phillips Screwdriver. Two of these screws will be located on each side of the mount.
  • Page 8 ITEM(S) NEEDED #28 x 6 To prevent seizing of the stainless steel NOTICE: hardware, do not use high-speed installation tools. Place the flat side of the Top Plate against the bottom of the Base Extrusion. Align the Mounting Hex Head Hex Head Holes in the Top Plate with the Mounting Holes in Cap Screw...
  • Page 9 Plate will not fit correctly unless the Bottom Plate is installed completely flat. Plate Plate Once the Top Plate is secured to the motor, reassemble the Quick Release Bracket with the help of a second person. To reassemble the MKA-57, set Padlock Padlock Bottom Bottom Bottom...
  • Page 10 Place the motor with the attached Quick Release Bracket assembly as close to the centerline or keel Inboard Inboard Outboard Outboard of the boat as possible. The motor can be installed on either the Port or Starboard side of the boat Deck of Deck of Boat...
  • Page 11 Reposition the Bottom Plate onto the marks made Mounting Hole Pattern Options on the bow of the boat. Make sure the Padlock Slot is Padlock Padlock Mark one Mark one Mark one Mark one facing inboard. Slot Slot Mark Mark out of three out of three out of two...
  • Page 12 ITEM(S) NEEDED #26 x 6 #27 x 6 #29 x 1 Inboard Inboard To prevent seizing of the stainless steel NOTICE: Flat Head Screw Flat Head Screw hardware, do not use high-speed installation tools. Bottom Bottom Wetting the screws or applying an anti-seize (Item #29) Plate Plate may help prevent seizing.
  • Page 13: Completing The Installation

    Completing the Installation Slide the Top Plate and motor onto the Bottom Plate Top Plate Top Plate that was mounted to the Boat Deck. Close the Cam Lever to lock the Plates. Insert the Pin into the hole in the Cam Lever to secure the Lever and ensure it remains latched.
  • Page 14 NOTICE: Plate when a sideways gap is present between the plates, The position of the MKA-57 can be adjusted by sliding the Top or while sliding the plates between the operating and Plate 10 inches inboard. This allows for safer transportation, a transporting positions.
  • Page 15 DÉGAGEMENT RAPIDE MKA-57 1854057 Le MKA-57 est compatible avec les moteurs de pêche à la traîne de la série QUEST à direction électrique et à montage sur proue d’eau douce et d’eau salée, notamment les Riptide Instinct, Ulterra, Riptide Terrova et Terrova.
  • Page 16 Cette position est utilisée lors du transport. Lorsque vous vérifiez le dégagement du moteur pour un emplacement de montage, tenez compte de ce qui suit : Le MKA-57 est compatible avec les moteurs de pêche à la Les images sont une représentation graphique et AVIS : traîne QUEST à...
  • Page 17 (25,4 cm) Lors du montage, l’emplacement précis du moteur et du MKA-57 peut varier selon le bateau, le pont du bateau et l’extrusion de la base sur laquelle est montée la La surface de montage pour la plaque inférieure doit AVIS : plaque supérieure.
  • Page 18 INSTALLATION Ouverture du support ARTICLE(S) REQUIS #A x 1 #B x 1 Prenez le support à dégagement rapide MKA-57, qui Plaque Plaque Goupille Goupille comprend la plaque supérieure (assemblage nº A) supérieure supérieure et la plaque inférieure (assemblage nº B). La plaque supérieure sera fixée au moteur de pêche à...
  • Page 19 être en position arrimée. Le moteur de pêche à la traîne pèse jusqu’à 90 lb AVIS : (40,8 kg). Minn Kota recommande d’obtenir l’aide d’une deuxième personne pour l’installation. Retirez les quatre vis de la plaque latérale en utilisant un tournevis cruciforme nº...
  • Page 20 ARTICLE(S) REQUIS #28 x 6 Pour prévenir le grippage de la quincaillerie en AVIS : acier inoxydable, n’utilisez pas d’outils haute vitesse pour l’installation. Vis à tête creuse Vis à tête creuse hexagonale hexagonale Placez le côté plat de la plaque supérieure contre le fond de l’extrusion de la base.
  • Page 21 être en position arrimée. Le moteur de pêche à la traîne pèse jusqu’à 90 lb AVIS : (40,8 kg). Minn Kota recommande d’obtenir l’aide d’une deuxième personne pour l’installation. Retirez les quatre vis de la plaque latérale en utilisant un tournevis cruciforme nº...
  • Page 22 ARTICLE(S) REQUIS #28 x 6 Pour prévenir le grippage de la quincaillerie en AVIS : acier inoxydable, n’utilisez pas d’outils haute vitesse pour l’installation. Placez le côté plat de la plaque supérieure contre le fond de l’extrusion de la base. Alignez les trous Vis à...
  • Page 23 à dégagement rapide avec l’aide d’une deuxième personne. Pour réassembler ATTENTION le MKA-57, placez la plaque inférieure sur une surface plane à côté de la plaque supérieure. La fente cadenas sur la plaque inférieure doit être orientée Un moteur de pêche à...
  • Page 24 Placez le moteur avec l’assemblage de support à dégagement rapide attaché le plus près possible En-bord En-bord Hors-bord Hors-bord de l’axe ou de la quille. Le moteur peut être installé soit sur le côté bâbord ou tribord du bateau, selon la Pont du Pont du bateau...
  • Page 25 Repositionnez la plaque inférieure sur les marques Options de motif de trous de montage faites sur la proue du bateau. Assurez-vous que la Fente pour Fente pour Marquez un Marquez un Marquez un Marquez un cadenas cadenas fente pour cadenas est tournée vers l’en-bord. Marque Marque sur trois...
  • Page 26 ARTICLE(S) REQUIS #26 x 6 #27 x 6 #29 x 1 En-bord En-bord Pour prévenir le grippage de la quincaillerie en AVIS : Vis à tête plate Vis à tête plate acier inoxydable, n’utilisez pas d’outils haute vitesse Plaque Plaque pour l’installation.
  • Page 27: Terminer L'installation

    Terminer l’installation Glissez la plaque supérieure et le moteur sur la plaque Plaque supérieure Plaque supérieure inférieure qui a été montée sur le pont du bateau. Fermez le levier à came pour verrouiller les plaques. Insérez la goupille dans le trou du levier à came pour fixer le levier et s’assurer qu’il reste verrouillé.
  • Page 28: Position De Transport

    AVIS : inférieure lorsqu’il y a écart entre les plaques ou lorsque La position du MKA-57 peut être ajustée en faisant glisser la les plaques glissent entre les positions de transport et plaque supérieure de 10 pouces (25,4 centimètres) à l’en-bord.
