The MKA-23 is recommended for use with all Minn Kota
recommended for use with all Minn Kota

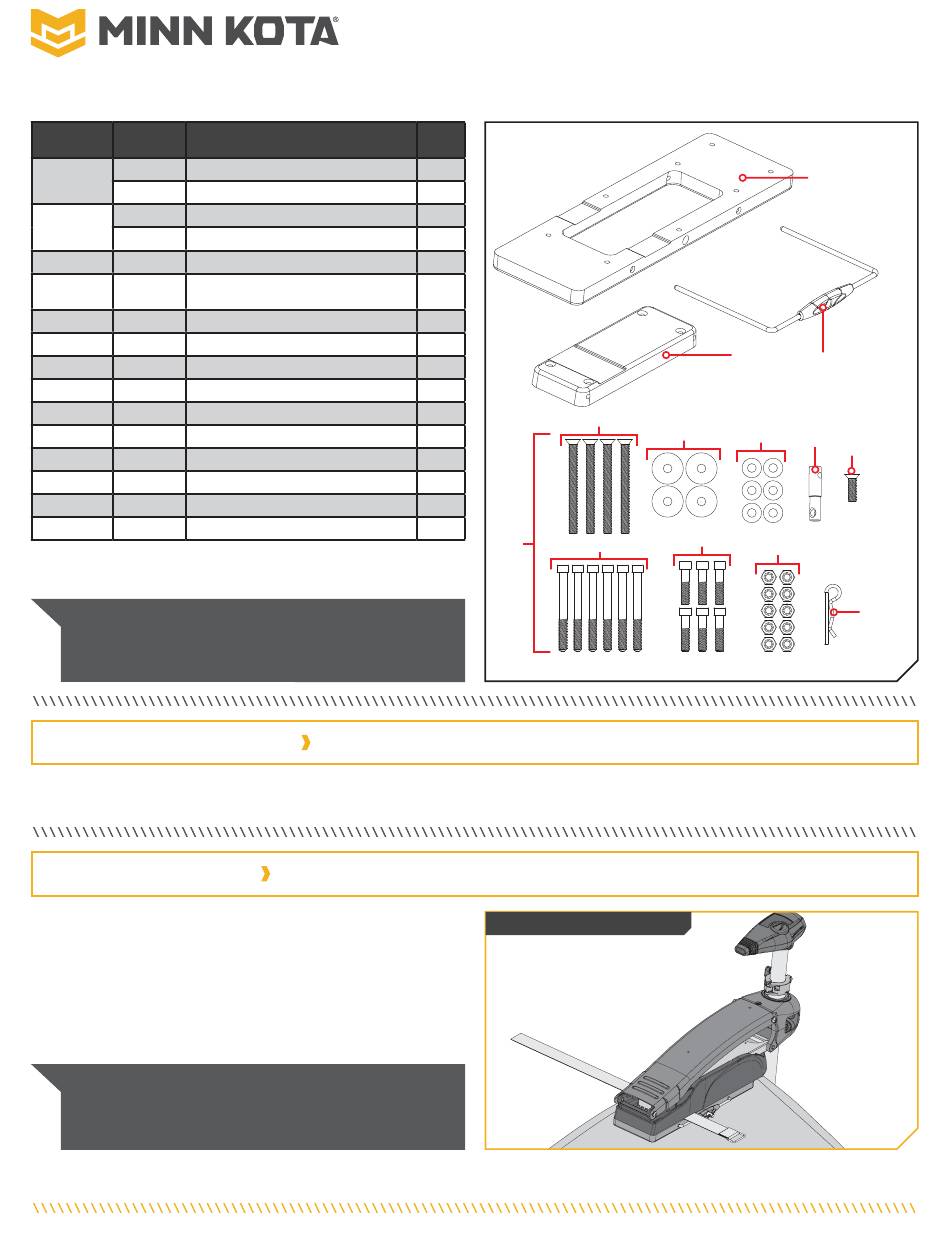

Item /
Part #
Description
Assembly
2371970
PLATE-INNER MAX/AT QCK REL.
2
2371971
PLATE-INNER MAX/AT QRB BLK.
2371972
PLATE-OUTER MAX/AT QCK REL.
4
2371973
PLATE-OUTER MAX/AT QRB BLK.
6
2990907
HANDLE ASSY MAX/AT QRB.
A
2994854
BAG ASSY MAX/AT FW/SW QRB
Includes 8-24
8
2372633
PIN-PADLOCK MAX/AT QCK REL.
10
2260800
CLIP-HAIR SPRING,SS,MAX BG
12
2373484
SCREW-1/4-20 X 7/8 PFH SS
14
2373482
SCREW-1/4-20 X 3" PFH SS
16
2261713
WASHER-1/4 FLAT 18-8 SS
18
2371712
WASHER-FLAT 9/32 X 5/8 X 1/16
20
2373486
SCREW-1/4-20 X 2 1/2 SHCS SS
22
2073410
SCREW-1/4-20 X 1.125 SHCS SS
24
2263103
NUT-1/4-20 NYLOCK SS
▲
2374918
INSTRUCTIONS MAX/AT QRB
✖ Not shown on Parts Diagram.
▲ This part is included in an assembly and cannot be ordered individually.
NOTICE:
Images are a graphical representation and
may vary from your motor. Save the box! A template for
installation is printed on the inside of the box.
TOOLS AND RESOURCES REQUIRED
• #2 Phillips Screw Driver
• Drill
MOUNTING CONSIDERATIONS
It is recommended that the motor be mounted as close to the
centerline of the boat as possible. The motor must not encounter
any obstructions as it is lowered into the water or raised into the
boat when stowed and deployed. Make sure the motor rest is
positioned far enough beyond the edge of the boat. Make sure the
area under the mounting location is flat, clear to drill holes and
install nuts and washers.
NOTICE:
Minn Kota motors can weigh up to 65lbs. It
is recommended to have a second person help with the
installation.
1 | minnkotamotors.com

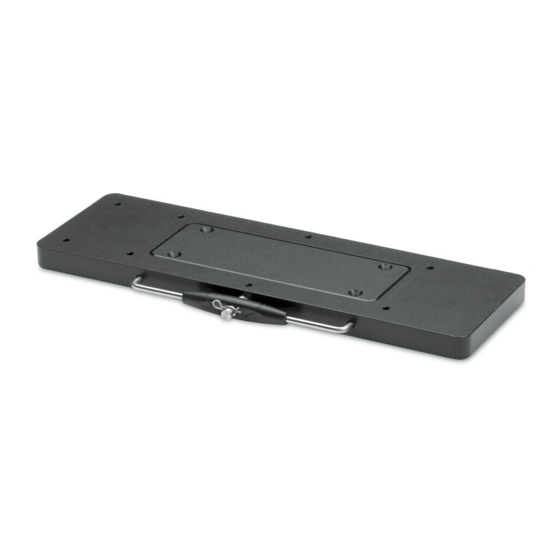

MKA-23/RTA-19 QUICK RELEASE BRACKET
®
Fortrex
®
, Maxxum
®
RT Fortrex
®
, RT Maxxum
®
, and RT Edge saltwater trolling motors.
Qty.
1
1
1
1
1
1
1
1
1
4
4
6
6
6
10
1
• 9/32" Drill Bit
• 7/16" Box End/Open End Wrench
®
, Edge, and Ultrex freshwater trolling motors. The RTA-19 is
14
14
A A
20
20
• Scissors
• Socket Wrench
Complete Typical Installation
1854023 & 1854019
4 4
2
2
6 6
16
16
18
18
8 8
12
12
22
22
24
24
©2020 Johnson Outdoors Marine Electronics, Inc.
10
10
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for MINN KOTA MKA-23
Summary of Contents for MINN KOTA MKA-23
- Page 1 MKA-23/RTA-19 QUICK RELEASE BRACKET 1854023 & 1854019 The MKA-23 is recommended for use with all Minn Kota ® Fortrex ® , Maxxum ® , Edge, and Ultrex freshwater trolling motors. The RTA-19 is recommended for use with all Minn Kota ®...
- Page 2 For instructions on how to disengage the Lift Cylinder, please see the Owner's Manual for your trolling motor at www.minnkotamotors.com. ® ® ® The MKA-23 is designed to be compatible with the Ultrex™, Fortrex , Edge and Maxxum Minn Kota motors. The RTA-19 is designed ®...
- Page 3 Three of the mounting holes to be used are located Motor Rest Motor Rest under the Motor Rest. Depending on the desired mounting pattern, at least one side of the Motor Rest Phillips Phillips will need to be removed to access these holes. Screws Screws Bowplate...
- Page 4 Installing the Outer Plate to a Maxxum or RT Maxxum ITEM(S) NEEDED #4 x 1 #20 x 6 #18 x 6 #24 x 6 Align the Maxxum/RT Maxxum Bow-mount with the mounting holes of the Outer Plate (Item #4). Outboard Outboard Screw Screw...
- Page 5 Installing the Outer Plate to a Fortrex, RT Fortrex or Ultrex WARNING Pattern 1 Pattern 1 For installation, do not remove the shaft/motor from the Bowguard. The Bowguard spring is under tension and must always remain secured. Stabilizer Strap Stabilizer Strap NOTICE: For Ultrex motors, please review the Pattern 2...
- Page 6 ITEM(S) NEEDED #22 x 6 #18 x 6 #24 x 6 Align the Base Extrusion with the mounting holes of the Outer Plate. Screw Screw Outboard Outboard Use six 1/4” x 1 1/8” Socket Head Screws (Item #22), six Flat Washers (Item #18) and six Sideplate Sideplate Nylock Nuts (Item #24) to fasten the motor mount...
- Page 7 Place the Quick Release Bracket with the motor attached as close to the center line or keel of the boat as possible. Make sure to check the clearance of the motor, bracket and handle assembly for any possible obstructions on the bow of the boat. Bow of Boat Bow of Boat Stabilizer...
- Page 8 ITEM(S) NEEDED #8 x 1 #12 x 1 Once an orientation for the Handle Assembly is selected, place the Padlock Pin (Item #8) into the Outer Plate on that side, oriented so that the larger diameter of the Pin is in the Outer Plate. Rotate the Outer Plate Outer Plate Pin so that the hole in the Pin lines up with the hole...
- Page 9 ITEM(S) NEEDED #2 x 1 #14 x 4 #16 x 4 #24 x 4 Place the Inner Plate (Item #2) on the bow of the boat and align it with the holes that were drilled Flat Head Flat Head Outboard Outboard using the template as a guide.
-
Page 10: Completing The Installation
“Installing the Gas Spring Pin” section of the Fortrex Owner’s Manual (#2287100) online at minnkotamotors.com. For warranty information, please visit minnkotamotors.com. Minn Kota Consumer & Technical Service 121 Power Drive Johnson Outdoors Marine Electronics, Inc. Mankato, MN 56001 PO Box 8129 Phone (800) 227-6433 ©2020 Johnson Outdoors Marine Electronics, Inc. - Page 11 On recommande l’utilisation du MKA-23 avec tous les moteurs de pêche à la traîne pour eau douce Minn Kota Fortrex , Maxxum Edge et Ultrex. On recommande l’utilisation du RTA-19 avec tous les moteurs de pêche à la traîne pour eau salée Minn Kota Fortrex , RT Maxxum , et RT Edge.
- Page 12 à la traîne peut varier. Veuillez noter l’apparence des moteurs de pêche à la traîne et des supports de montage concernés. Pour une liste complète des moteurs compatibles avec le MKA-23/RTA-19, veuillez consulter le site Web minnkotamotors.com.
- Page 13 Trois des trous de montage à utiliser sont situés sous Repose-moteur Repose-moteur le support du moteur. Selon le boulonnage désiré, au moins un côté du support du moteur devra être retiré pour l’accès à ces trous. Extrusion Extrusion cruciformes cruciformes de la plaque de la plaque avant...
- Page 14 Installation de la plaque externe sur un Maxxum ou un RT Maxxum ARTICLE(S) REQUIS #4 x 1 #20 x 6 #18 x 6 #24 x 6 Alignez le support de montage sur étrave Maxxum/ RT Maxxum avec les trous de montage sur la plaque Hors-bord Hors-bord externe (article nº...
- Page 15 Installation de la plaque externe sur un Fortrex, un RT Fortrex ou un Ultrex AVERTISSEMENT Boulonnage 1 Boulonnage 1 Pour l’installation, ne retirez pas l’arbre/le moteur du protège-proue. Le ressort du protège-proue est sous Sangle de Sangle de tension et doit toujours rester fixé. Étrave Étrave stabilisation...
- Page 16 ARTICLE(S) REQUIS #22 x 6 #18 x 6 #24 x 6 Alignez l’extrusion de la base avec les trous de montage de la plaque externe. Hors-bord Hors-bord Utilisez six vis à tête cylindrique à six pans creux de Plaque Plaque 1/4 po x 1 1/8 po (6,4 mm x 28,6 mm) (article nº...
- Page 17 Placez le support à dégagement rapide avec le moteur le plus près possible de l’axe ou la quille. Assurez-vous que le dégagement du moteur, du Support Support support et de l’ensemble poi-gnée n’est gêné par aucune obstruction sur l’étrave du bateau. Étrave du bateau Étrave du bateau Sangle de...
- Page 18 ARTICLE(S) REQUIS #8 x 1 #12 x 1 Une fois le choix de l’orientation pour l’ensemble poignée effectué, placez la goupille cadenas (article nº 8) dans la plaque externe sur ce côté, orienté afin que le plus grand diamètre de la goupille Plaque externe Plaque externe soit dans la plaque externe.
- Page 19 ARTICLE(S) REQUIS #2 x 1 #14 x 4 #16 x 4 #24 x 4 Placez la plaque interne (article nº 2) sur l’étrave du bateau et alignez-la avec les trous percés en Vis à tête plate Vis à tête plate Hors-bord Hors-bord utilisant le gabarit comme guide.
-
Page 20: Terminer L'installation
à gaz » du manuel du propriétaire Fortrex (nº 2287100) en ligne sur minnkotamotors.com. Pour obtenir des renseignements sur la garantie, veuillez visiter minnkotamotors.com. Minn Kota Consumer & Technical Service 121 Power Drive Johnson Outdoors Marine Electronics, Inc.
