Download Print this page
MINN KOTA 1810220 Manual
MINN KOTA 1810220 Manual

MINN KOTA 1810220 Manual

Talon setback bracket - 6”

Advertisement

Available languages

Available languages

Quick Links

The Talon Setback Bracket provides six inches of additional setback for direct-transom mount applications. This provides extra clearance for
accessories, such as trim tabs and ladders.
Item /
Part #
Description
Assembly
2
2378821
RISER BRACKET, 6",MACHINED
A
2994918
BAG ASY,TALON 6" SETBACK BRKT
Items 4-10
4
2373521
BOLT-5/16-18 X 1 1/2" HHCS SS
6
2371746
WASHER .750 X .3125 SS
8
2223100
NUT-5/16-18 NYLOCK S/S
10
2378608
ANTI SEIZE TUBE, 4CC, TALON
p
2374929
INSTRUCTION SHEET,SETBACK BRKT
p
Not shown on Parts Diagram.
This part is included in an assembly and cannot be ordered individually.
NOTICE:
The Setback Bracket should only be used on
direct-mount applications. Using a setback bracket along
with any adapter bracket is not recommended and will void
your adapter bracket warranty.
TOOLS AND RESOURCES REQUIRED
• #3 Phillips Screw Driver
• Drill
MOUNTING CONSIDERATIONS
NOTICE:
If directly mounting the Setback Bracket to the
Transom, please refer to the "Installation" section of the
Talon Owner's Manual or Installation Instructions. They can
be found online at www.minnkotamotors.com.
NOTICE:
To prevent seizing of the stainless steel hardware,
do not use high speed installation tools. Wetting the screws
or applying an anti-seize may help prevent seizing.
1 | minnkotamotors.com
Qty.
1
1
4
8
4
1
1
• Scissors
• 17/64" Drill Bit

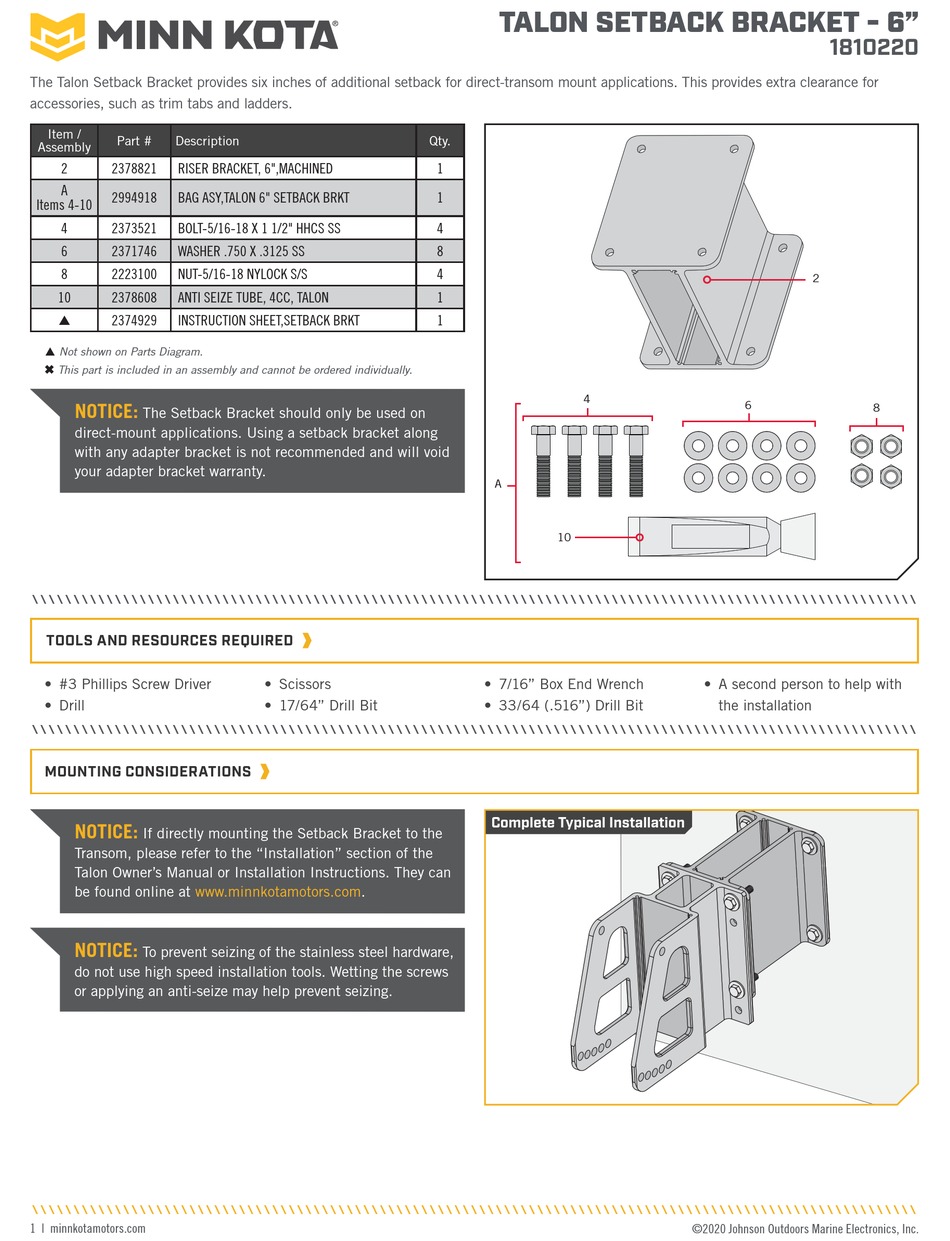

TALON SETBACK BRACKET - 6"
4 4
A A
10
10
• 7/16" Box End Wrench
• 33/64 (.516") Drill Bit
Complete Typical Installation
1810220
2 2
6 6
• A second person to help with
the installation
©2020 Johnson Outdoors Marine Electronics, Inc.
8 8

Advertisement

loading
Need help?

Need help?

Do you have a question about the 1810220 and is the answer not in the manual?

Questions and answers

Summary of Contents for MINN KOTA 1810220

  • Page 1 TALON SETBACK BRACKET - 6” 1810220 The Talon Setback Bracket provides six inches of additional setback for direct-transom mount applications. This provides extra clearance for accessories, such as trim tabs and ladders. Item / Part # Description Qty. Assembly 2378821 RISER BRACKET, 6",MACHINED...
  • Page 2: Installation

    INSTALLATION Installation with Talon Already Installed Disconnect the Talon from power before beginning Inboard Inboard the installation. Remove the Talon from the Mounting Bracket by loosening the four Nylock Nuts that hold the Talon in place. Do not remove the nuts, only loosen them. Nylock Nylock Power...
  • Page 3 ITEM(S) NEEDED #2 x 1 Nylock Nut Nylock Nut NOTICE: Transom Transom To prevent seizing of the stainless steel hardware, do not use high speed installation tools. Fender Washer Fender Washer Wetting the screws or applying an anti-seize may Flat Flat help prevent seizing.
  • Page 4 ITEM(S) NEEDED #2 x 1 Place a 1/8” bead of Marine Grade Sealant (not Transom Transom Marine Grade Sealant Marine Grade Sealant included) on the Transom of the boat around the Setback Bracket Bracket drilled mounting holes. Place the Marine Grade Sealant on the face of the 6”...
  • Page 5: Completing The Installation

    Completing the Installation ITEM(S) NEEDED #4 x 4 #6 x 8 #8 x 4 Take the Talon Mounting Bracket and align it with the 6” Setback Bracket. Mounting Mounting Bracket Bracket Attach the Mounting Bracket using four Stainless Steel Bolts (Item #4) and four Washers (Item #6). The Bolts should pass through the Washers and the Mounting Bracket, then through the 6”...
  • Page 6 For details on Talon mounting adjustments, please refer to the Owner’s Manual or Installation Instructions online at minnkotamotors.com. For warranty information, please visit minnkotamotors.com. Minn Kota Consumer & Technical Service 121 Power Drive Johnson Outdoors Marine Electronics, Inc. Mankato, MN 56001...
  • Page 7 SUPPORT DE RETENUE DU TALON - 6 po (15,2 cm) 1810220 Le support de décalage du Talon procure un décalage supplémentaire de six pouces pour un montage direct au tableau arrière. Ceci procure davantage de dégagement pour les accessoires, comme les volets et échelles.
  • Page 8 INSTALLATION Installation avec un Talon déjà installé Débrancher le Talon de l’alimentation électrique En-bord En-bord avant de débuter l’installation. Retirer le Talon du support de montage en desserrant les quatre écrous Nylock qui maintiennent le Talon en place. Ne pas retirer les écrous; il suffit de les desserrer.
  • Page 9 ARTICLE(S) REQUIS #2 x 1 Écrou Écrou Tableau Tableau AVIS : Pour prévenir le grippage de la quincaillerie Nylock Nylock arrière arrière en acier inoxydable, ne pas utiliser d’outils haute Rondelle de Rondelle de vitesse pour l’installation. Le fait de mouiller les vis protection protection ou d’appliquer un produit antigrippant peut aider à...
  • Page 10 ARTICLE(S) REQUIS #2 x 1 Placer un cordon de 1/8 po (3 mm) de scellant de Tableau Tableau Scellant de qualité marine Scellant de qualité marine qualité marine (non compris) sur le tableau arrière du arrière arrière Support de décalage bateau, autour des trous de montage percés.
  • Page 11: Terminer L'installation

    Terminer l’installation ARTICLE(S) REQUIS #4 x 4 #6 x 8 #8 x 4 Aligner le support de montage du Talon avec le support de décalage 6 po (15,2 cm). Support de Support de Fixer le support de montage au moyen des quatre montage montage boulons en acier inoxydable (article nº...
  • Page 12 Talon, consulter le manuel du propriétaire ou les directives d’installation en ligne sur minnkotamotors.com. Pour obtenir des renseignements sur la garantie, visiter minnkotamotors.com. Minn Kota Consumer & Technical Service 121 Power Drive Johnson Outdoors Marine Electronics, Inc. Mankato, MN 56001...
