MINN KOTA MKA-56 Manual
MINN KOTA MKA-56 Manual

MINN KOTA MKA-56 Manual

Composite quick release bracket

Advertisement

Available languages

Available languages

Quick Links

The MKA-56 and RTA-55 are compatible with freshwater and saltwater electric-steer, bow-mount, QUEST series trolling motors, including the
Riptide Instinct, Ulterra, Riptide Terrova and Terrova.
Item /
Part #
Description
Assembly
2771686
INNER PUCK BL COMP QRB BLK *BLACK*
A
Items 2-4
2771687
INNER PUCK BL COMP QRB WHT *WHITE*
2371686
PLATE,PUCK BACKUP,BLK ANDZD *BLACK*
2
2371687
PLATE, PUCK BACKUP, WHITE *WHITE*
2371695
PLATE-INNER, COMP FW BLK *BLACK*
4
2371696
PLATE-INNER, COMP SW WHT *WHITE*
2371697
PLATE-OUTER, COMP FW BLK *BLACK*
6
2371698
PLATE-OUTER, COMP SW WHT *WHITE*
B
2770916
HANDLE ASM BL COMP QRB
Items 8-12
8
2370916
HANDLE, HALF ROUND, ANODIZE
10
2372641
PIN-SHEAR, HANDLE
12
2383417
SCREW-5/16-18X3/4"BHCS
C
2994946
BAG ASM,ELEC.STEER COMP QRB
Items 14-28
14
2372634
PIN-PADLOCK, ALUM QRB
16
2383404
SCREW-1/4-20X7/8 PFH SS NYS
18
2260800
CLIP-HAIR SPRING,SS,MAX BG
20
2383485
SCREW-3/8-16 X 2 1/4 BHCS
22
2383490
SCREW-3/8-16 X 3" PFHCS SS
24
2351734
WASHER-3/8" FLAT SS
26
2383122
NUT 3/8-16 NYLON INST LOCKNUT
28
2378608
ANTI SEIZE TUBE, 4CC, TALON
p
2374949
INSTRC. ELEC.STEER COMP QRB
TOOLS AND RESOURCES REQUIRED
• #3 Phillips Screwdriver
• #4 Phillips Screwdriver
• Drill
WARNING
You are responsible for the safe and prudent operation of this
product. Minn Kota has designed this accessory to be a reliable
and convenient tool. Use only as directed and only for the
designed intent of the product. Installation should occur in an
area free from hazards and obstacles. This product does not
relieve you from the responsibility for safe operation.
1 | minnkota.johnsonoutdoors.com
Qty.
1
1
1
1
1
1
1
1
1
1
2
2
1
1
1
1
6
6
6
12
1
1
• 13/32" Drill Bit
• 9/16" Box End or
Open End Wrench

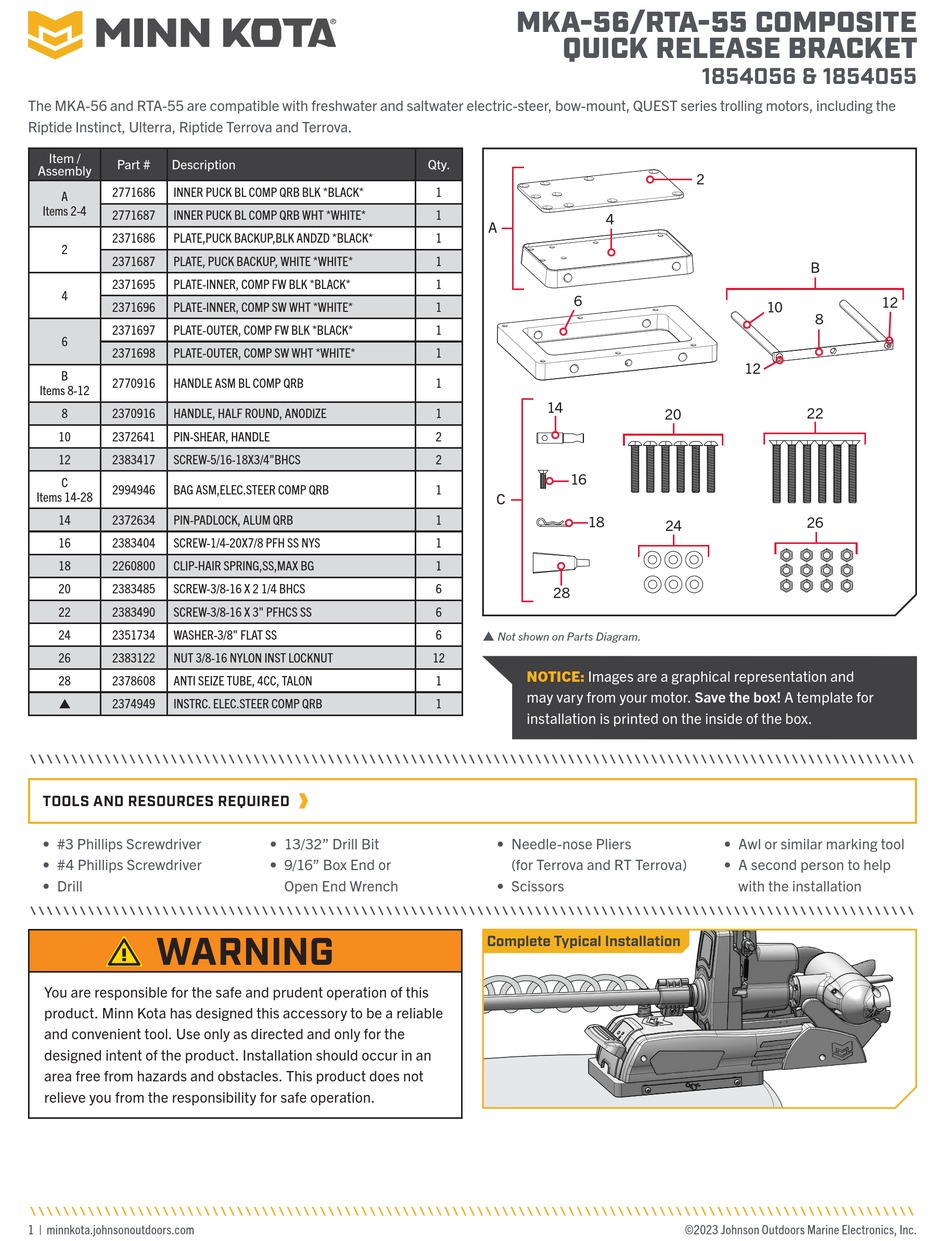

MKA-56/RTA-55 COMPOSITE
QUICK RELEASE BRACKET
4 4
A A
6 6
14
14
16
16
C C
18
18
28
28
p
Not shown on Parts Diagram.
Images are a graphical representation and
NOTICE:
may vary from your motor. Save the box! A template for
installation is printed on the inside of the box.
• Needle-nose Pliers
(for Terrova and RT Terrova)
• Scissors
Complete Typical Installation
1854056 & 1854055
2 2
B
B
10
10
8 8
12
12
22
22
20
20
26
26
24
24
• Awl or similar marking tool
• A second person to help
with the installation
©2023 Johnson Outdoors Marine Electronics, Inc.
