This INSTALLATION AND OPERATION
MANUAL explains the proper use of your new
Sharp Air Conditioner. Read these instructions
carefully before installing or operating your air
conditioner. The INSTALLATION AND OP-
ERATION MANUAL should be kept in a safe
place for handy reference.
As an ENERGY STAR Partner, Sharp Electronics has determined that this product (AF-S80CX) meets the
ENERGY STAR guidelines for energy efficient air conditioners. To meet these guidelines, air conditioners
must be at least 15% more efficient than the minimum Federal standard.
AF-S80CX
AF-R80CX
AF-R85CX

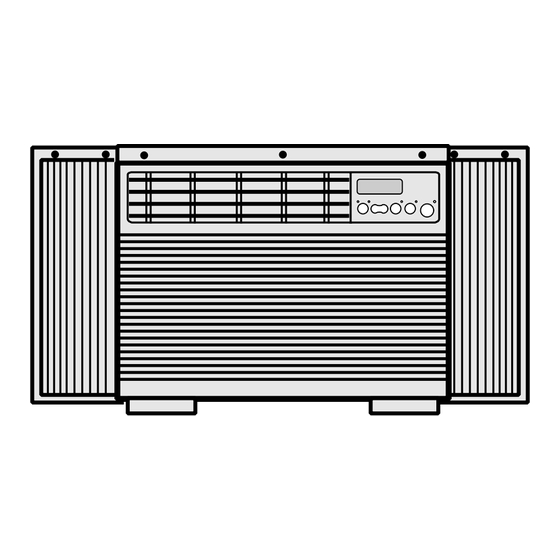

ROOM AIR CONDITIONER
INSTALLATION AND OPERATION
MANUAL
CONTENTS
FOR YOUR PROTECTION ....................
• CHECK WINDOW AREA ........................ 4
• LOCATlON .............................................. 4
• ACCESSORIES ...................................... 5
• SUGGESTED TOOLS ............................ 5
• INSTALLATION ....................................... 6
• CAUTION FOR USE ............................ 8
• NOTES ON OPERATION .................... 9
• ENERGY EFFICIENCY TIPS ............... 9
• PARTS NAMES ................................... 10
• COOLING OPERATION ...................... 11
• ENERGY SAVER ................................. 13
• ON TIMER OPERATION ..................... 14
• OFF TIMER OPERATION .................... 15
PAGE
2
3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AF-R80CX and is the answer not in the manual?

Questions and answers

Related Manuals for Sharp AF-R80CX

Summary of Contents for Sharp AF-R80CX

  • Page 1: Table Of Contents

    ERATION MANUAL should be kept in a safe place for handy reference. As an ENERGY STAR Partner, Sharp Electronics has determined that this product (AF-S80CX) meets the ENERGY STAR guidelines for energy efficient air conditioners. To meet these guidelines, air conditioners must be at least 15% more efficient than the minimum Federal standard.

  • Page 2: For Your Protection

    Address City State Telephone TO PHONE: Dial 1-800-BE-SHARP (237-4277) for: SERVICE (for your nearest Sharp Authorized Servicer) PARTS (for your Authorized Parts Distributor) ACCESSORIES ADDITIONAL CUSTOMER INFORMATION TO WRITE: For service problems, warranty information, missing items and other assistance: Sharp Electronics Corporation...

  • Page 3: Consumer Limited Warranty

    Product which were caused by repairs or attempted repairs performed by anyone other than an authorized servicer. Nor shall Sharp be liable or in any way responsible for any incidental or consequential economic or property damage.

  • Page 4: Installation Instructions

    For safe installation, repairs, replacement and secure positioning, make sure foundation is solid and level. • The room air conditioner must be installed in an area within reach of a properly rated grounded outlet. • Use of extension cords of any kind is not recommended.

  • Page 5: Accessories

    ACCESSORIES Accessories Right closure assembly Left closure assembly Window sash foam seal Window sash foam seal (adhesive type) Bottom gasket Screws (L=1", 25.4mm) Screws (L= ", 10mm) Base pan angle Remote control Battery Remote control hook SUGGESTED TOOLS 1. Screw driver (medium size Phillips) 2.

  • Page 6: Installation

    If the unit is not properly inclined, the water collected in the bottom tray during opera- tion will not drain properly and may flow into the room where the air conditioner is in- stalled. Insert the bottom gasket into the space between the window sill and the bottom of the unit to seal outside air.
  • Page 7 Insert the closure assemblies on both sides into the rails of the jamb. Loosen screws on both sides of the cabinet, then hang the base pan angle on and secure the screws again. Secure the base pan angle to the sill by using the hole of the front side on the angle with one screw.

  • Page 8: Precautions

    CAUTION FOR USE IMPORTANT: Points to keep in mind when using your air conditioner. • Install the air conditioner by following the installation instructions given in the previous section of this manua • Make sure the unit is the correct capacity for the area you want to cool.

  • Page 9: Notes On Operation

    • If a power failure occurs during use, allow 3 minutes before restarting the unit. After power is reinstated, restart the air conditioner. If the power was off for less than three minutes, be sure to wait at least three minutes before restarting the unit. If you restart the air conditioner within three minutes, a protective device in the unit may cause the compressor to shut off.

  • Page 10: How To Operate

    HOW TO OPERATE PARTS NAMES UNIT CONTROL PANEL AF-S80CX, AF-R80CX COOL / FAN TEMP SELECTOR 1Receiver window for remote control signal 2Display 3SELECTOR indicator 4SELECTOR pad 5TEMPERATURE setting pad Lower temp. ---- ENERGY TIMER POWER ON/OFF SAVER ON/OFF Raise temp.

  • Page 11: Cooling Operation

    COOLING OPERATION SELECTOR indicator COOL / FAN TEMP TIMER SELECTOR ON/OFF POWER ON/OFF pad TO CHANGE TEMPERATURE SETTING COOL / FAN TEMP TIMER SELECTOR ON/OFF TEMPERATURE setting pad NOTE: • The latest temperature setting will be memorized and will appear on the display the next time the unit is turned on.

  • Page 12: To Change Fan Speed And Operation Mode

    HOW TO OPERATE TO CHANGE FAN SPEED AND OPERATION MODE SELECTOR indicator COOL / FAN TEMP TIMER SELECTOR ON/OFF SELECTOR pad NOTES ON OPERATION MODE: SELECTOR MODE HIGH COOL COOL MED COOL COOL COOL LOW COOL HIGH FAN MED FAN LOW FAN •...

  • Page 13: Energy Saver

    ENERGY SAVER During normal operation, the thermostat automatically controls cooling and the fan runs continu- ously. When the ENERGY SAVER is selected, the thermostat automatically controls cooling and the fan automatically stops when the compressor is not operating. (Fan will stop 30 seconds after the compressor stops.

  • Page 14: On Timer Operation

    HOW TO OPERATE ON TIMER OPERATION • This unit has a built-in timer that can be programmed to start the unit up to 12 hours in advance. You can set the timer to start in increments of 30 minutes (0.5 hours) up to 9.5 hours in advance of the start time, or in 1 hour increments from 10 to 12 hours in advance of the start time.

  • Page 15: Off Timer Operation

    OFF TIMER OPERATION • This unit has a built-in timer that can be programmed to shut the unit off up to 12 hours in advance. You can set the timer to stop in increments of 30 minutes (0.5 hours) up to 9.5 hours in advance of the stop time, or in 1 hour increments from 10 to 12 hours in advance of the stop time.

  • Page 16: Using The Remote Control

    HOW TO OPERATE USING THE REMOTE CONTROL INSTALLING BATTERIES Use two size-AAA (R03) batteries. Remove the battery compartment cover. Insert the batteries in the compartment, making sure the are properly aligned. Replace the cover. NOTES: • The battery life is approximately one year with normal use. •...

  • Page 17: Operating With The Remote Control

    OPERATING WITH THE REMOTE CONTROL POWER ON/OFF TEMP. TEMP. SELECTOR SET TIMER/OFF To change temperature setting when ON/OFF timer is in use 1. Push a TEMPERATURE setting button. The current set temperature will be recalled on the unit's display. 2. Use the TEMPERATURE setting buttons to set the new temperature. The new set temperature will show on the display for 5 seconds and return to the time display.

  • Page 18: Cleaning And Maintenance

    CLEANING AND MAINTENANCE CLEANING THE FILTER If the filter is clogged with dust, the amount of air flow will be reduced, resulting in poor cooling performance. The filter should be cleaned every 10 days. At the beginning of every cooling season or after a long period of inactivity, clean the filter before starting the unit.

  • Page 19: Before Calling For Servlce

    • Did you restart the unit within 3 minutes after a power failure? If the power was off for less than 3 minutes, and you restarted the air conditioner within 3 minutes, a protective device may cause the compressor to shut off, preventing cooling for about 5 minutes.
  • Page 20 SHARP ELECTRONICS CORPORATION Sharp Plaza, Mahwah, New Jersey 07430-2135 SHARP CORPORATION Osaka, Japan Printed in Thailand TINSEA292JBRZ 01LO...
