www.follettice.com
Following installation, please forward this manual
to the appropriate operations person.
801 Church Lane • Easton, PA 18040, USA
Toll free (877) 612-5086 • +1 (610) 252-7301
www.follettice.com

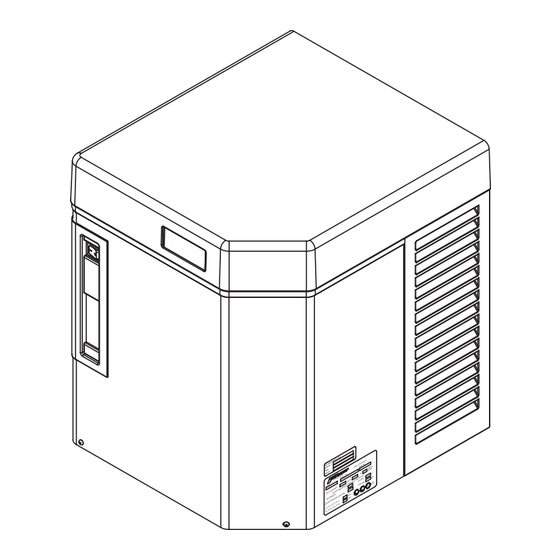

HCD/HMD/HCF/HMF1400R,
HCD/HMD1400N Ice Machines
Operation and Service Manual
Serial Number C33985 to C37309
01034701R05

Advertisement

Table of Contents
loading

Related Manuals for Follett C33985

Summary of Contents for Follett C33985

  • Page 1 HCD/HMD1400N Ice Machines Order parts online Operation and Service Manual www.follettice.com Serial Number C33985 to C37309 Following installation, please forward this manual to the appropriate operations person. 801 Church Lane • Easton, PA 18040, USA Toll free (877) 612-5086 • +1 (610) 252-7301 www.follettice.com...
  • Page 2 Horizon 1400R/N Ice Machines...

  • Page 3: Table Of Contents

    Table of contents Welcome to Follett Corporation ..........................4 Specifications ................................5 Operation ..................................7 Cleaning, weekly exterior care ..........................7 Cleaning, semi-annual evaporator cleaning ......................7 Service ..................................12 Ice machine operation ............................12 Water system ...............................13 Electrical system ..............................14 Normal control board operation ........................14 Test points ..............................15 Error faults ..............................15...

  • Page 4: Welcome To Follett Corporation

    Before you begin After uncrating and removing all packing material, inspect the equipment for concealed shipping damage. If damage is found, notify the shipper immediately and contact Follett Corporation so that we can help in the filing of a claim, if necessary.

  • Page 5: Specifications

    Notes: 3/4" vented drain line must slope a minimum of 1/4" per ft (6 mm per 30.4 cm run). Drain to be hard piped and insulated. Water shut-off recommended within 10 ft (3 m). Follett recommends installation of Follett water filter system (P/N 00130286) in ice machine inlet water line. Ambient Evaporator unit Air temperature 100 F/38 C max.
  • Page 6 Dimensions and clearances Entire front of ice machine must be clear of obstructions/connections to allow removal. 1" (26 mm) clearance above ice machine for service. 1" (26 mm) minimum clearance on sides. Front View Side View Back View Ice transport tube connection Air exhaust 21.28"...

  • Page 7: Operation

    Do not use bleach to sanitize or clean the ice machine. Preventive maintenance Periodic cleaning of Follett’s ice machine system is required to ensure peak performance and delivery of clean, sanitary ice. The recommended cleaning procedures that follow should be performed at least as frequently as recommended, and more often if environmental conditions dictate.
  • Page 8 Fig. 2 2. Mix 1 gallon (3.8 L) 120 F (49 C) water and 7 oz (198 g) (one 7 ounce packet of Follett SafeCLEAN ice machine cleaner, P/N 00132001). Locate cleaning cup. Fill until HI WATER light comes on (Fig. 2).
  • Page 9 Fig. 5 5. Mix 1 gallon 120 F (49 C) water and 1.6 oz (48 ml) NU-CALGON IMS-II or IMS-III SANITIZER. Fill until HI WATER light comes on (Fig. 5). Note: Do not use bleach to sanitize or clean the ice machine. HI WATER Fig.
  • Page 10 Fig. 8 8. Disconnect coupling as shown (Fig. 8). Fig. 9 9. Using disposable food service grade gloves, insert dry Sani-Sponge™ (kit P/N 00132068). Next, insert Sani- Sponge soaked in Nu-Calgon IMS-II or IMS-III sanitizer solution. Push both Sani-Sponges down ice transport tube with supplied pusher tube (Fig.
  • Page 11 Fig. 11 11. Reconnect coupling. Press power switch ON. Ice pushes Sani-Sponges through tube (Fig. 11). Fig. 12 12. Place a sanitary (2 gallon or larger) container in bin or dispenser to collect Sani-Sponges and ice for 10 minutes. Collect 5.5 lb (3 kg) of ice from unit. Discard ice and Sani-Sponges (Fig.

  • Page 12: Service

    The Horizon ice machine overview The Follett Horizon ice machine uses a horizontal, cylindrical evaporator to freeze water on its inner surface. The refrigeration cycle is continuous; there is no batch cycle. The evaporator is flooded with water and the level is controlled by sensors in a reservoir.

  • Page 13: Water System

    Water system The water level in the evaporator is controlled by a feed solenoid and level detecting sensors. Referencing the diagram below, water sensing rods extend down into the reservoir at the end of the evaporator assembly. The system works via electrical conductivity as follows: One of the longest probes is a common.

  • Page 14: Electrical System

    Electrical system Normal control board operation The PC board indicator lights provide all the information necessary to determine the machine’s status. Green indicator lights generally represent “go” or normal operation; Yellow indicators represent normal off conditions; Red indicators generally represent alarm conditions, some of which will lock the machine off. A green light labeled POWER indicates power to the machine.

  • Page 15: Test Points

    A soft error can either be automatically reset should the condition rectify, or if power is cycled. Should an error occur, consult the troubleshooting guide in this manual or a Follett service technician.

  • Page 16: Wiring Diagram, Evaporator Unit

    Wiring diagram, evaporator unit Evaporator unit wiring diagram CONTROL PC BOARD Gearmotor data (Brother) Resistance of windings Gearmotor current 5.0A (nominal) 115 vac gearmotor (Brother) 1.7Ω Locked rotor amps Horizon 1400R/N Ice Machines...

  • Page 17: Wiring Diagram, Condenser Unit

    Single-phase condensing unit wiring diagram IMPORTANT: COMPRESSOR EQUIPPED WITH AN INTERNAL OVERLOAD PROTECTOR. ALLOW TIME FOR RESET. USE COPPER CONDUCTORS ONLY. COMPRESSOR CONTACTOR START CAPACITOR COMPRESSOR TERMINAL WITH BLEEDER RESISTOR 3-phase condensing unit wiring diagram FAN 1 FAN 2 TO "Y-OUT" TO "230 VAC"...

  • Page 18: Mechanical System

    Fig. 13 Mechanical system Evaporator disassembly 1. Press PURGE button to purge evaporator, and then turn power OFF. 2. Unscrew and remove stream divider as shown. Fig. 14 3. Unplug and remove gearmotor as shown. 4. Remove all traces of petrol-gel from the auger shaft. Fig.

  • Page 19: Evaporator Reassembly

    Fig. 16 8. Unscrew and disconnect transport tube from louvered docking assembly. 9. Unplug sensor at the electrical box. 10. Remove vent tube from shuttle housing as shown. Fig. 17 11. Remove and discard mating ring and seal. 12. Carefully remove auger. Fig.
  • Page 20 Fig. 19 3. Press new mating ring into main housing as shown. 4. Lube the shaft with liquid soap in the area shown and slip on seal and spring. Cardboard disc Note: Do not touch the sealing surfaces. Use cardboard disk to install.
  • Page 21 Fig. 22 11. Reconnect transport tube to louvered docking assembly. 12. Plug sensor in at the electrical box. 13. Reconnect vent tube to the shuttle housing as shown. Fig. 23 14. Apply a coat of petrol-gel to the auger shaft. 15.
  • Page 22 Fig. 25 17. Remove bolt and reinstall the washer and bolt. Place retainer over bolt and secure with nut and washer. Fig. 26 18. Lubricate body of stream divider with petrol-gel and reinstall. Apply 19. Plug gearmotor power cord into electrical box petrol-gel Horizon 1400R/N Ice Machines...

  • Page 23: Refrigeration System

    Refrigeration system Condenser unit operation The condensing unit is weatherproof and equipped to operate in ambient temperatures from -2 0 F to 120 F (-29 C to 48.9 C). The condensing unit is controlled by a low pressure control, which works in concert with a refrigerant solenoid valve on the evaporator module.

  • Page 24: Refrigeration System Diagram

    Refrigeration system diagram heat exchanger high side service valve with service port CONDENSING UNIT low side service valve with service port filter-drier compressor receiver 14 pounds filter-drier sight glass high side service valve with service port low side service valve condenser with service port head control valve, 180 PSI...

  • Page 25: Refrigerant Replacement Requirements

    Refrigerant replacement requirements 1. Non-contaminated refrigerant removed from any Follett refrigeration system can be recycled and returned to the same system after completing repairs. Recycled refrigerant must be stored in a clean, approved storage container. If additional refrigerant is required, virgin or reclaimed refrigerant that meets ARI standard 700-88 must be used.

  • Page 26: "Bin Full" Detection System

    “Bin full” detection system The Follett Horizon ice machine incorporates a unique “bin full” detection system, that consists of the shuttle and actuator. The shuttle incorporates a flag and sensor. Referencing the figure below, the normal running position of the flag is down, out of the sensor. When the bin fills to the top and ice can no longer move through the tube, the machine will force the shuttle flag up into the sensor, shutting the machine off.

  • Page 27: Troubleshooting

    Troubleshooting Please see “Service” section for a description of each function. Ice machine disposition Possible causes Corrective action Legend: ON or OFF FLASHING Ice machine is in running 1. Defective compressor. 1. Replace compressor. condition but not making ice. 2. Defective start relay. 2.
  • Page 28 Ice machine disposition Possible causes Corrective action Legend: ON or OFF FLASHING 5. Ice machine is not making ice. 1. A self-flush occurred but could 1. Replace drain solenoid valve. Locked in PURGE. not drain evaporator due to a 2. Level ice machine. Check water failed drain solenoid valve.
  • Page 29 Horizon 1400R/N Ice Machines...

  • Page 30: Replacement Parts

    Replacement parts Order parts online www.follettice.com Evaporator assembly 18 17 Horizon 1400R/N Ice Machines...
  • Page 31 Order parts online www.follettice.com Reference # Description Part # Tube, ice transport, molded 00175299 Shuttle assembly (includes gasket and nozzle) 00130815 Switch, optical 00130849 Compression nozzle 00115774 Elbow, water 00134502 Gasket, shuttle 00115600 Stream divider 00142521 Auger bolt 00116988 Washer 00161513 Retainer, auger bolt 00161356...
  • Page 32 Low side assembly Order parts online www.follettice.com Horizon 1400R/N Ice Machines...
  • Page 33 Order parts online www.follettice.com Reference # Description Part # Tubing, liquid line (includes insulation) 00142414 Tubing, suction line (includes insulation) 00131045 Sight glass 00107045 Electrical box support 00153635 Split system support bracket assembly 01051762 Valve, expansion, thermal (includes TXV insulation and bulb insulation) 00136317 Insulation, TXV 502830...
  • Page 34 Electrical box Order parts online www.follettice.com Reference # Description Part # Cover, electrical box, remote 00130898 Board, control circuit, 120V (includes standoffs) 00132910 Stand off’s (set of 6) 00130906 Switch, evaporator purge 00114371 Switch, evaporator clean 00117036 Switch, ice machine power 208867 Circuit breaker, 8A 00128090...
  • Page 35 Diverter plate (single agitator Cornelius dispensers and left-hand dispense chute on 307277 dual-agitator Cornelius dispensers) Not shown Diverter plate (right-hand dispense chute on dual-agitator dispensers) 00996207 Not shown Follett SafeCLEAN ice machine cleaner (case of 24 x 7 oz packets) 00132001 Not shown Sani-Sponge kit 00132068 Horizon 1400R/N Ice Machines...
  • Page 36 Order parts online Skins assembly www.follettice.com on Pla fic ati Ide nti ni a du le sy lva k Mo n Pe St oc le No Mo du SI NG uc t Pr od ce No Se rvi TI O O RA RI AL M AL...
  • Page 37 Order parts online www.follettice.com Reference # Description Part # Front cover, split system 00130633 Tubing, water, 3/8" OD 502719 Tubing, drain 00144923 Fitting, drain 00109728 Fitting, water inlet 502924 Elbow, water inlet 502925 Coupling (includes O ring) 00171207 O ring 00144675 Bulkhead fitting 00171215...
  • Page 38 Single-phase condensing unit Order parts online www.follettice.com Tecumseh Condensing Unit Date Code B1213 and before Side View Top View Reference # Description Part # Shroud 00155937 Condenser 00185843 Head pressure control valve 00110619 Condenser fan motor 00173070 Condenser fan guard 00123067 Receiver 00110627...
  • Page 39 Single-phase condensing unit Order parts online www.follettice.com Tecumseh Condensing Unit After Date Code B1213 Top View Side View Reference # Description Part # Shroud 01018290 Condenser 00185843 Head pressure control valve 01021401 Condenser fan motor 01018266 Condenser fan guard 00123067 Receiver 00991034 Filter drier, liquid...
  • Page 40 00173120 Harmony, Ice Manager, SafeCLEAN, Sani-Sponge and Vision are trademarks of Follett Corporation Chewblet, RIDE and Follett are registered trademarks of Follett Corporation, registered in the US. 801 Church Lane • Easton, PA 18040, USA Toll free (877) 612-50861 • +1 (610) 252-7301 01034701R05 www.follettice.com...
