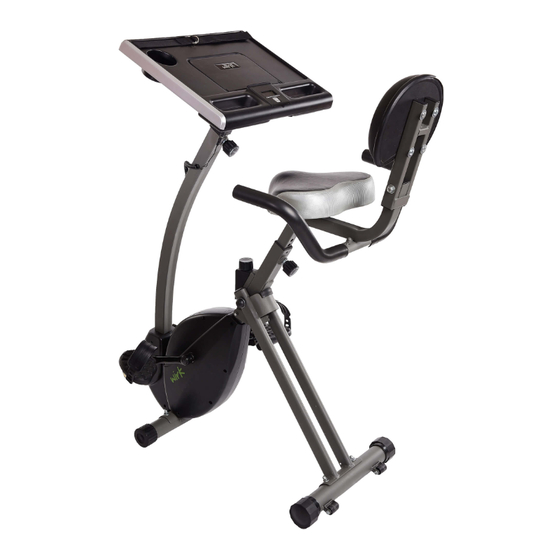

Stamina wirk Ride 85-2221C Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Product May Vary Slightly From Pictured.
CAUTION:
Weight on the Seat should not exceed 300 lbs.
Weight on the Desktop should not exceed 30 lbs.
This Product is Distributed Exclusively by
2040 N Alliance Ave, Springfield, MO 65803
www.staminaproducts.com
TM
Customer Care
1 (800) 375-7520
Owner's
Manual
WARNING
!
Exercise can present a
h e a l t h r i s k . C o n s u l t a
physician before beginning
any exercise program with
this equipment. If you feel
faint or dizzy, immediately
d i s c o n t i n u e u s e o f t h i s
equipment. Serious bodily
i n j u r y c a n o c c u r i f t h i s
equipment is not assembled
and used correctly. Serious
bodily injury can also occur
if all instructions are not
followed. Keep others and
pets away from equipment
when in use. Always make
sure all bolts and nuts are
securely tightened prior to
each use. Follow all safety
instructions in this manual.
When calling for parts or
service, please specify
the following numbers :
Model#: 85-2221C
S/N: _____________
STAMINA PRODUCTS
MADE IN CHINA
©
2020 Stamina Products, Inc.
2020, 12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the wirk Ride 85-2221C and is the answer not in the manual?

Questions and answers

Related Manuals for Stamina wirk Ride 85-2221C

Summary of Contents for Stamina wirk Ride 85-2221C

  • Page 1 Weight on the Desktop should not exceed 30 lbs. This Product is Distributed Exclusively by STAMINA PRODUCTS MADE IN CHINA 2040 N Alliance Ave, Springfield, MO 65803 Customer Care © 2020 Stamina Products, Inc. 1 (800) 375-7520 2020, 12 www.staminaproducts.com...
  • Page 2 Quickstart Guide Smart Audio Workouts for Your Bike Go to the App Store on your device or scan the QR Code for quick access. Download the app and get moving! Assembly video included in app. Apple, the Apple logo, iPhone, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc., registered in the U.S.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Safety Instructions ........3 Conditioning Guidelines ......18 Before You Begin ........5 Warm-Up and Cool-Down ......19 Equipment Warning, Caution & Notice Labels ... 6 Product Parts Drawing ......20 Hardware Identification Chart ....7 Parts List ............ 21 Assembly Instructions ........
  • Page 4 1 (800) 375-7520 customer.care@staminaproducts.com Hi! From all of us here at Stamina Products, thank you for your purchase. We know that you have big fitness goals in mind and we are here to help you along. Call us, email us, or send us a message on Facebook. Be sure to contact us if you have any questions on your new product.

  • Page 5: Before You Begin

    Wirk Ride Workstation. better, and enjoy life to its fullest. Providing you with a quality product is Stamina's It's a proven fact that a regular exercise top priority. However, sometimes there could be a program can improve your physical and mental missing or incorrectly sized part.

  • Page 6: Equipment Warning, Caution & Notice Labels

    EQUIPMENT WARNING, CAUTION & NOTICE LABELS This chart is provided to help identify the warning, caution, and notice labels on the Wirk Ride Workstation. Please take a moment to familiarize yourself with all of the warning, caution, and notice labels. CAUTION LABEL(103) SERIAL DECAL(124) To best serve you, our Customer Care Representatives will...

  • Page 7: Hardware Identification Chart

    HARDWARE IDENTIFICATION CHART This chart is provided to help identify the hardware used in the assembly process. Place the washers or the ends of the bolts or screws on the circles to check for the correct diameter. Use the small scale to check the length of the bolts and screws.

  • Page 8: Assembly Instructions

    ASSEMBLY INSTRUCTIONS Place all parts from the box in a cleared area and position them on the floor in front of you. Remove all packing materials from your area and place them back into the box. Do not dispose of the packing materials until assembly is completed.
  • Page 9 ASSEMBLY INSTRUCTIONS STEP 4 Attach the SEAT(39) to the SEAT POST(6) with NYLOCK NUTS(M8x1.25)(82) and LARGE WASHERS (ø8.6xø22x1.5mm Thick)(115). Insert the SEAT POST(6) into the MAIN FRAME(1) and secure with the ADJUSTMENT KNOB(36). NOTE: 1. Make sure that the pin on the ADJUSTMENT KNOB(36) is inserted into one of the holes in the SEAT POST(6).
  • Page 10 ASSEMBLY INSTRUCTIONS STEP 8 Refer to the detail view. Attach the DESKTOP POST(4) to the DESKTOP(21) with BUTTON HEAD BOLTS(M8x1.25x12mm)(71) and WASHERS(M8)(81). STEP 9 Insert the DESKTOP POST(4) into the UPRIGHT(3) and secure with the ADJUSTMENT KNOB(36). Bolt the ROUND HEAD BOLT(M6x1x12mm)(74) into the UPRIGHT(3) for security. NOTE: Make sure that the pin on the ADJUSTMENT KNOB(36) is inserted into one of the holes in the DESKTOP POST(4).
  • Page 11 ASSEMBLY INSTRUCTIONS STEP 10 NOTE: The RIGHT PEDAL(52) has R stamped on the end of the pedal shaft. The RIGHT PEDAL(52) has right hand threads and is tightened by turning clockwise. The LEFT PEDAL(43) has L stamped on the end of the pedal shaft.

  • Page 12: Set Up Instructions

    SET UP INSTRUCTIONS Place the Wirk Ride Workstation in the area where it will be used. It is recommended that the Wirk Ride Workstation be placed on an equipment mat. The Wirk Ride Workstation is approximately 45 inches long x 21.7 inches wide x 45.7 inches tall. (These dimensions may vary up to one inch.) An area 4 feet wide x 6 feet long is required for safe operation of the Wirk Ride Workstation.

  • Page 13: Operational Instructions

    OPERATIONAL INSTRUCTIONS USING THE FITNESS METER POWER ON : Pedal movement or press the button. POWER OFF : Automatically shuts off after four minutes of inactivity. MODE BUTTON: SCAN TIME SPEED DISTANCE CALORIES Press to select display functions, including SCAN, TIME, SPEED, DISTANCE, CALORIES, and ODOMETER.
  • Page 14 OPERATIONAL INSTRUCTIONS WEIGHT LIMITATIONS WARNING: Serious injuries can occur from Wirk Ride Workstation tip-over. To help prevent tip-over: Do not exceed listed weight limits Never allow children to climb or hang on the Wirk Ride Workstation Do not lean on the desktop in any direction LOAD ADJUSTMENT To increase the load, turn the TENSION KNOB(57) clockwise.
  • Page 15 OPERATIONAL INSTRUCTIONS DESKTOP ANGLE ADJUSTMENT Refer to the illustrations below. The angle of the DESKTOP(21) can be set to different angles from Position 1 to Position 5. Lift the LEVER(55) up using your right foot, adjust the UPRIGHT(3)/DESKTOP(21) to desired position. Then press the LEVER(55) down to lock the UPRIGHT(3)/DESKTOP(21) in position. Position Position Index ( Shown 1 to 5 )
  • Page 16 OPERATIONAL INSTRUCTIONS USING A TABLET ON THE DESKTOP Refer to the illustration below. Set the TABLET HOLDER(18) with an angle and use the TABLET HOLDER SUPPORT(20) to support the TABLET HOLDER(18) from the back. Place your tablet device on the TABLET HOLDER(18).

  • Page 17: Storage

    3. Verify that all nuts and bolts are present and properly tightened. Replace missing nuts and bolts. Tighten loose nuts and bolts. 4. Verify that the CAUTION LABEL(103) is in place and easy to read. Call Stamina Products immediately at 1-800-375-7520 for a replacement CAUTION LABEL(103) if it is missing or damaged.

  • Page 18: Conditioning Guidelines

    CONDITIONING GUIDELINES How you begin your exercise program depends on your physical condition. If you have been inactive for several years or are severely overweight, start slowly and increase your workout time gradually. Increase your workout intensity gradually by monitoring your heart rate while you exercise. Remember to follow these essentials: Have your doctor review your training and diet programs.

  • Page 19: Warm-Up And Cool-Down

    WARM-UP and COOL-DOWN Warm-Up The purpose of warming up is to prepare your body for exercise and to minimize injuries. Warm up for two to five minutes before strength training or aerobic exercising. Perform activities that raise your heart rate and warm the working muscles. Activities may include brisk walking, jogging, jumping jacks, jump rope, and running in place.

  • Page 20: Product Parts Drawing

    PRODUCT PARTS DRAWING FRONT BACK...

  • Page 21: Parts List

    PARTS LIST PART# PART NAME Main Frame Rear Frame Upright Table Post Front Stabilizer Seat Post Back Frame Handrail Back Support Rear Stabilizer Left Cover Right Cover Top Cover Left Front Cover Right Front Cover Lever Cover Hollow Cap Tablet Holder Meter Tablet Holder Support Desktop...
  • Page 22 PARTS LIST PART# PART NAME Bolt, Hex Head (M6 x 1 x 45mm) Bolt, Button Head (M8 x 1.25 x 40mm) Carriage Bolt (M8 x 1.25 x 48mm) Bolt, Button Head (M8 x 1.25 x 75mm) Bolt, Button Head (M8 x 1.25 x 20mm) Eye Bolt (M6 x 1) Bolt, Button Head (M8 x 1.25 x 55mm) Bolt, Button Head (M8 x 1.25 x 68mm)

  • Page 23: Warranty

    To implement this limited warranty, send a written notice stating your name, date, and place of purchase and a brief description of the defect along with your receipt to Stamina Products, Inc. 2040 N Alliance Ave, Springfield, Missouri, USA, MO 65803, or email us at customer.care@staminaproducts.com, or call us at 1-800-375-7520.

  • Page 24: Tm Coaster Toss Rules

    Coaster Toss On the bottom of the WIRK Ride Workstation box, you’ll notice a point system for the WIRK Coaster Toss. Use the included WIRK coaster to hold your coffee cup, water, iced pomegranate lemonade, or to play COASTER TOSS!!! Rules: One player at a time will toss the coaster from a predetermined distance to the box, attempting to land the coaster onto the box.

  • Page 25: Notes

    NOTES...

  • Page 26: Fax/Mail Ordering Form

    2040 N Alliance Ave, Springfield, MO 65803 Would you like to recieve email information or special offers from Stamina Products? Register at contact.staminaproducts.com TO REGISTER YOUR PRODUCT To enact your warranty, please register your product by going to register.staminaproducts.com. Please have your product model number (printed on the cover of this owner’s manual) and the serial number (printed on the black and white sticker on your...
